China manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBE

China China manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBE supplier
China manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBE supplier China manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBE supplier China manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBE supplier China manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBE supplier China manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBE supplier China manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBE supplier

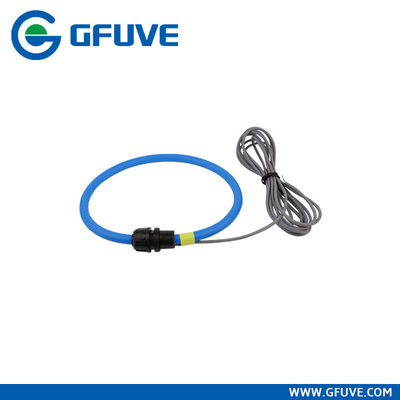

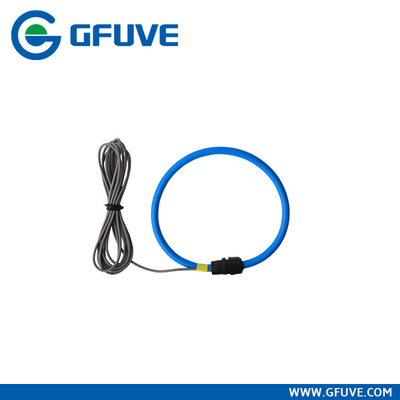

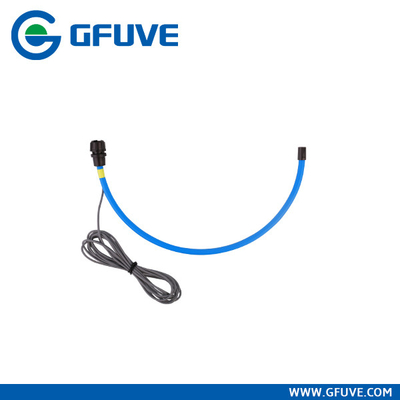

Large Image :  China manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBE

Product Details:

Place of Origin: Beijing, China
Brand Name: GFUVE
Certification: ISO 9001 : 2008; CE
Model Number: FQ-RCT01

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: USD1---450
Packaging Details: Standard export box
Delivery Time: 7 days
Payment Terms: T/T, Western Union, Paypal, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10000units/Months
Contact Now
Detailed Product Description
FQ-RCT01: ROGOWSKI Coil Current Probe Current Range: 3000A, 6000A, 10000A
Ratio: 1000A/100mv Color: Red Or Blue, Black
Linearity Error: 0.2% Accuracy Class: 1%
Coil Lenth: 40cm, 60cm, 100cm Signal Cable: 2.5m Or 3m
Application: Power Quality Analyzer

FQ-RCT01 FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBE

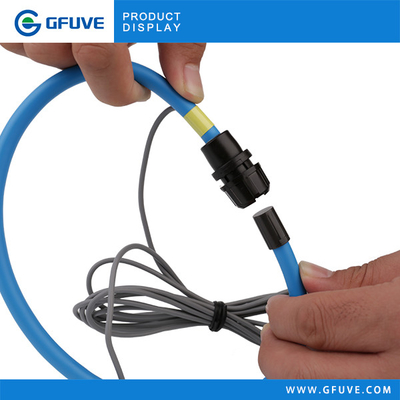

The FQ-RCT01 Flexible AC current probe are designed for easy installed in tight spaces and without the need for dismantling the primary busbar or cables.

China manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBEChina manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBEChina manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBEChina manufacturer wholesales FLEXIBLE ROGOWSKI TYPE CLAMP ON AC CURRENT MEASUREMENT PROBE

APPLICATIONS

  • Power quality monitoring
  • Power meters
  • Smart logger
  • Energy sub-meters
  • Distributed measurement systems

FEATURES

  • Flexible and lightweights
  • Easy & quick installation in tight spaces
  • No danger from open-circuited secondary
  • No core saturation or damage if overloaded
  • Excellent linearity
  • Multi-size are available

GENERAL DATA

  • Ambient operating temperature: -20~+70°C
  • Ambient storage temperature: -25~+75°C
  • Standards safety:IEC 61010-1:2001, 600 V CAT III

PARAMETERS

Electrical parameters
Model FQ-RCT01-55 FQ-RCT01-80 FQ-RCT01-105 FQ-RCTA01-55 FQ-RCTA01-80 FQ-RCTA01-105
10A~10kA Maximum input current 10A~6000A
Current Range 25Hz~20kHz 45Hz~600Hz
Output voltage Rated current 500A 1000A 2000A 250A, 500A, 800A, 1000A 1000A, 1500A, 2000A, 2500A 1000A, 2000A, 2500A, 3000A
50Hz 50mV AC 100mV AC 200mV AC
333mV
1mV/A
Max output / 3.0V AC max
Accuracy <1% @25°C (45-65Hz) <1% @25°C (45-65Hz)
Phase error <60’ @25°C (45-65Hz) <60’ @25°C (45-65Hz)
Output sensitivity ±2% Max (No Calibration)
±0.5% @25°C (With Calibration)		 1%
Linearity error ±0.2% (10%-100%I1n) ±0.2%
Position sensitivity ±2%(45-65Hz) ±2%
External influence ±2% Max ±1.5% Max
Power supply / 10-30VDC,30mA Max.
