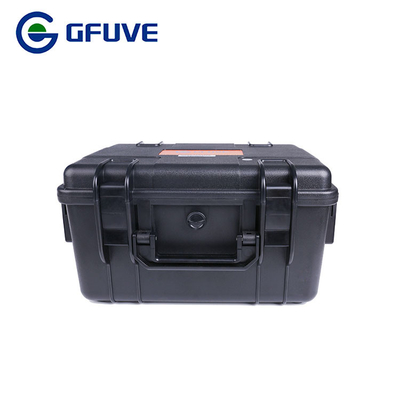

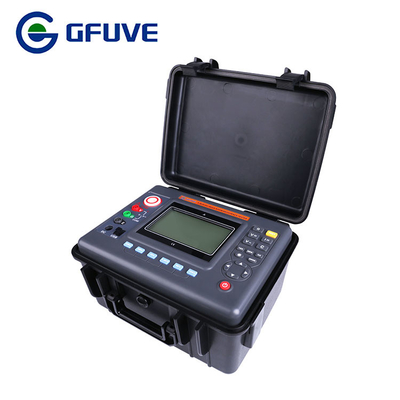

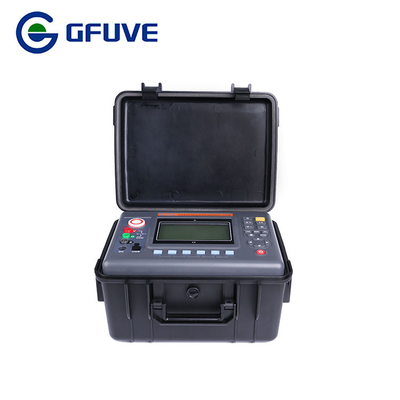

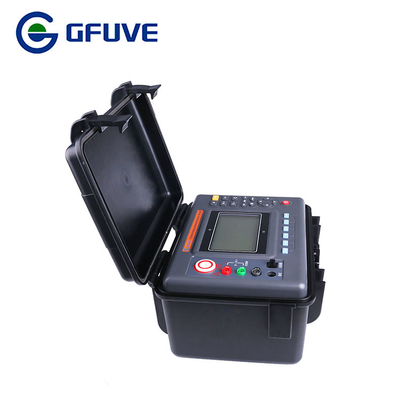

T-3630 5KV 10KV 15KV HIGH VOLTAGE INSULATION RESISTANCE TESTER
The model T-3630 High Voltage Insulation Resistance Tester also known as megohmmeter, high voltage insulation resistance tester, etc., for the insulation resistance test. The instrument has a large LCD screen gray backlight display, data storage, data access, alarm, automatic shutdown and other functions. At the same time, it also has the function of measuring DC voltage, AC voltage, absorption ratio and polarization index of DC voltage. The electrical test equipment is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.
Insulation resistance testing should begin at the time of installation and continue throughout the lifetime of the equipment. Identifying and correcting problems before they result in a failure occurs through regularly scheduled preventative maintenance.
The Insulation Resistance Test is the second test required by the electrical safety testing standards. The Insulation Resistance Test consists in measuring the Insulation resistance of a device under test, while phase and neutral are short circuited together.
FEATURES
- Accuracy 3%
- 0-50TΩ
- DC voltage 0-1000V
- AC voltage 0-750V
- 250V, 500V, 1KV, 2.5KV, 5kV, 10KV, 15KV
- 10nf-50uf Capacitance measurement
- 100pA-6mA DC current measurement
FUNCTIONS
- Insulation resistance test
- Voltage test
- DC current test
- Capacitance test
- User friendly menu guided operation
- With rechargeable battery
- With PC software
PARAMETERS
| Electrical parameters |
| Function |
Insulation resistance test, voltage test, DC current test, capacitance test |
| Accuracy |
3% |
| Power Supply |
12V rechargeable battery |
| Rated voltage range |
100v, 250V, 500V, 1000V, 2500V, 5000V, 10KV, 15KV |
| Insulation resistance range |
0.01MΩ～50TΩ |
| Resolution |
0.01MΩ |
| DC Test Voltage Range |
0～1000V; Resolution: 0.1V |
| AC Test Voltage Range |
0～750V; Resolution: 0.1V |
| DC Current |
0.1nA～6mA; Resolution: 0.1nA |
| Capacitance |
10nF～50uF; Resolution: 10nF |
| Output short-circuit Current |
≥6mA |
| Absorption Ratio and Polarization Index Measurement |
Yes |
| Backlight |
Yes |
| LCD display |
108mm×65mm, 4-bit LCD display, gray screen backlight |
| Communication |
USB Port |
| Data Storage |
500 GROUPS |
| Alarm Function |
Yes |
| Power Consumption |
Standby: 30mA Max(backlight off), Turn on backlight: 42mA Max, Measure:300mA Max(backlight off) |
| Insulation Resistance |
≥50MΩ (500V between circuit and shell) |
| Withstand voltage |
AC3kV/50Hz 1min (between circuit and housing) |
| Standard |
IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54), pollution grade 2, CAT Ⅲ 300V |
| Mechanical parameters |
| Dimension (L×W×H) (mm) |
240x188x85 |
| Weight (kg) |
2.75 |
| Environmental conditions |
| Operating temperature |
-10°C to 50°C |
| Storage temperature |
-20°C to 70°C |
| Relative humidity |
<90%RH |
