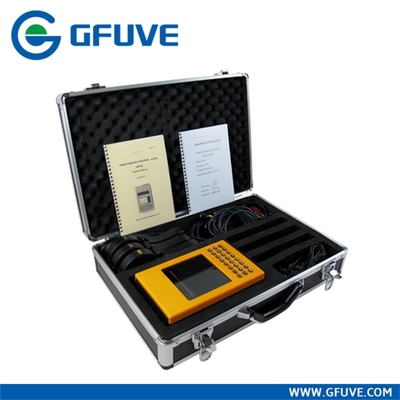

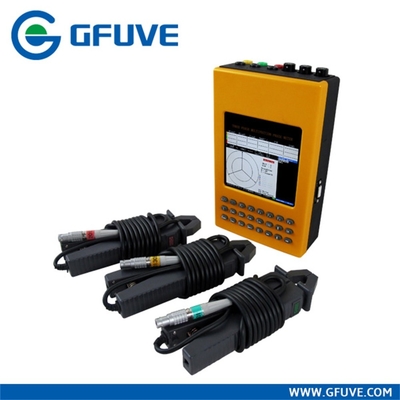

Portable Three-Phase Multi-Function Phase angle Current-Voltage Meter with power measurement

Large Image : Portable Three-Phase Multi-Function Phase angle Current-Voltage Meter with power measurement

Product Details:

Place of Origin:	Beijing , China
Brand Name:	GFUVE
Certification:	ISO9001, KEMA, CE, UL
Model Number:	GF311

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	5000USD/set
Packaging Details:	standard export box
Delivery Time:	within 4 working days(depends on your quantity)
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200sets

Contact Now

Detailed Product Description

Keywords:	Three Phase Phase Angle Meter	Accuracy:	0.5%
Current Range:	3*0-10a	Voltage Range:	3*0-500V
Phase Angle:	0-360.00	Color:	Yellow And Grey
Phase Accuracy:	0.1°	Weight:	1kg

GF311 Portable Three-Phase Multi-Function Phase angle Current-Voltage Meter with power

measurement
(Accuracy class 0.5)
Application
GF311 3 PHASE PHASE ANGLE METER is suitable for various electric power dispatching center, relay protection department of relay protection in power plant, the power company is metric division class, inspectors, but also suitable for petroleum, railways and the iron and steel industry electric power department.

It can be applied to electric power dispatching center, relay protection department or relay protection in power plant. Its metric division class makes it suitable for petroleum, railways and the iron and steel industries also.

GF311 three-phase multi-function phase current-voltage meter: 3 road current, 3 road voltage
GF311B three-phase multi-function phase current-voltage meter:6 road current, 3 road voltage

FEATURES

Simultaneously measuring three-phase voltages, current, power, frequency, power factor, phase, etc.
Display vector map for the use of user directly.
Horizontal liquid crystal big screen TFT displays all electric parameters;
The smallest current it can measure is 1 mA, 2 mA above can display vector diagram;
Small volume, light weight and the operation is simple, convenient;
DSP digital signal processing chip, wide measuring range, high accuracy, good stability;
It can store data; data can be using computer software to upload for management;
Range switches automatically, software for be calibrated.

PARAMETERS

Electrical parameters
Accuracy class	0.5%
Power supply	AC 85-265V 50/60Hz or Li-battery 5000mAh
Communication Port	RS232
Warming-up time	< 5min
Power consumption	≤5VA
Voltage measurement
U1, U2, U3 Range	0-480V
Resolution	0.001V
Accuracy	0.2%
Current measurement
I1, I2, I3 Range	1mA-10A or 50mA-200A or 50mA-500A
Resolution	0.5mA
Accuracy	0.5%
Active power measurement
Active accuracy	0.5%
Reactive power measurement
Accuracy	1%
Phase measurement
Range	0°-359.9°
Resolution	0.001°
Accuracy	0.1°
Frequency measurement
Range	45-65Hz
Resolution	0. 001Hz
Accuracy	0.01Hz
Power factor measurement
Range	-1 to 0 to +1
Resolution	0.0001
Accuracy	0.01
Mechanical parameters
Dimensions (W×D×H) (mm)	245×162×60
Weight (kg)	1 (mains) 6.5 (appendix and box)
Environmental conditions
Working temperature	-10°C to 55°C
Working humidity	15%-85%RHD
Storage temperature	-25°C to 70°C
Storage humidity	5%-95%RHD

Competitive Advantages

Well and High Quality Control ,
Prompt Delivery ,
New Product ,
Competitive Prices ,
Earth-friendly Products ,
Small Order Acceptable ,
OEM Accepted

Portable Three-Phase Multi-Function Phase angle Current-Voltage Meter with power measurement
