Accuracy: | ±0.5% | Current Output (AC): | 0-240A |
---|---|---|---|
Capacity: | 1KVA | The Current Output Waveform Distortion: | ≤5% |
Primary Current: | 0-200A | Key Words: | 200A Primary Current Injection Test Set |
Model: | Primary Injection Test Equipment | Secondary Measurement: | 0-6A |
Weight(kg): | 18 | Timer: | 0-999.99s |

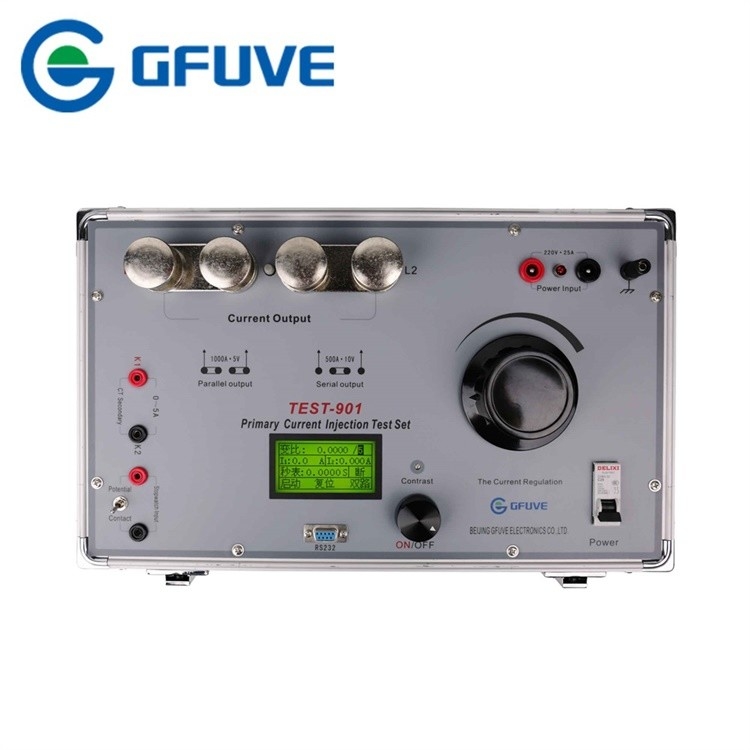

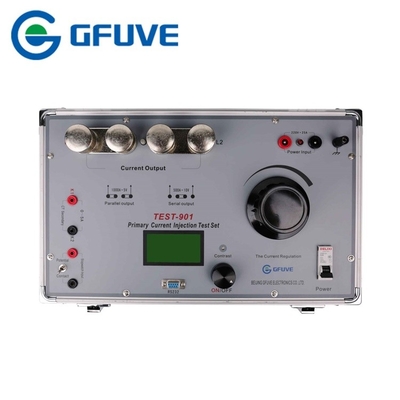

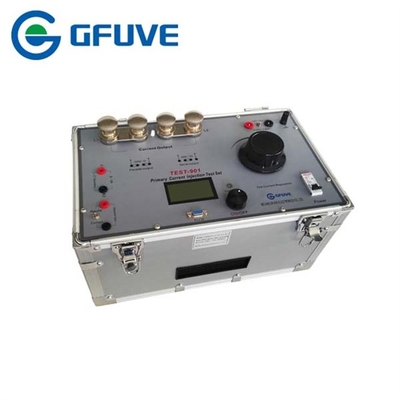

TEST-200 200A portable primary current injection test set of circuit breaker with Ammeter
The TEST-200 is a programmable AC high-current source designed specifically for utility-substation applications. This device is well suited for primary injection testing of protective relays. This versatile device can also be used for testing thermal, magnetic, and solid-state motor-protection relays and molded-case circuit-breakers, as well as any application that requires a high-current source.
Built-in Timer
The TEST-200’s built-in timer can test the time delay characteristics of protection relays and molded-case circuit-breakers. Once the test is initiated, the current source and the timer are automatically turned on at the next zero crossing point of the AC. The timer stops when the TEST-200 input detects a change in the dry contact or voltage input, or detects the removal of the test current. The test results are then displayed in milli-seconds and fractions of a cycle(s) on the unit’s back-lit LCD screen (20 characters by 4 lines).
External Current Input
The TEST-200 also has an external-current input (0 – 6 A). Both the internal current source amplitude and the external current source measurement readings can be viewed at the same time.
Current Source
Test currents, ranging from 0 to 240 amperes, can be set by using the rotary dial knob on the control panel. The test current is then measured, and the results are displayed on the LCD screen. When the TEST-200 is used as a current source, the current-on time (duration of current flow) is displayed on the LCD screen.
Applications
1. Primary injection tests
2. Protective Relay Testing
3. Circuit Breaker Testing
4. Current Transformer Testing
5. Recloser and Sectionalizers
6. Switchgear Testing
7. Ground Grid Testing
Features
1. Permanent current up to 200 A, 1KVA
2. Max current output up to 240A
3. Built-in digital ammeter 0.5% accuracy
4. Built-in digital ammer resolution 1ms
5. Small size, light weight, easy to test on-site
6. Thermal and short-circuit protection
Electrical parameters | |
---|---|
Accuracy | ±0.5% |
Power Supply(AC) | 220V±10%·5A, 50Hz/60Hz or 110V±10%·10A, 50Hz/60Hz |
Current Output (AC) | 200A·5V or 100A·10V |
Capacity | 1KVA |
The current output waveform distortion | ≤5% |
Dual protection | overload electronic protection and software protection |
Primary current | |
Range | 0-240A |
Resolution | 0.1A |
Accuracy | <0.5% |
Secondary measurement | |
Range | 0-6A |
Resolution | 0.001A |
Accuracy | <0.5% |
Current duration | |
1000A range | 200A 2-3minutes 100A 3-6minutes |
500A range | 100A 2-3minutes |
With timer | |
Range | 0.0001~999.99S |
Resolution | 0.001S |
Accuracy | <0.5%±5 words |
Mechanical parameters | |
Dimensions (W×D×H) (mm) | 400×300×250 |
Weight(kg) | 20 |
Environmental conditions | |
Temperature | -10°C to 40°C |
Relative humidity | ≤80% |
Ordering information
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make an order. Special specifications could be customized. All kinds of different specifications and parameters current transformers can be made according to your needs.
