5000A primary injection testing of circuit breaker 35KVA in smart grid substation
-
-
Large Image :

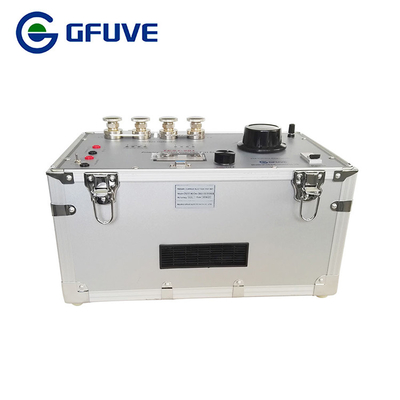

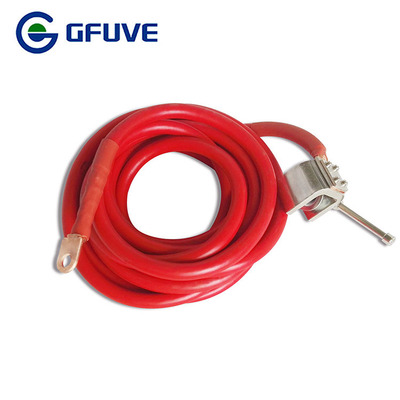

5000A primary injection testing of circuit breaker 35KVA in smart grid substation
|
Product Details:
| Place of Origin: |
BEIJING CHINA |
| Brand Name: |
GFUVE |
| Certification: |
CE, ISO9001 |
| Model Number: |
TEST-905 35KVA |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1set |
| Packaging Details: |
standard export wooden box |
| Delivery Time: |
7-20days |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
100sets/month |
|
Detailed Product Description
| NAME: |
Primary Injection Testing Of Circuit Breaker |
APPLICATION: |
TESTING Circuit Breaker |
| Accuracy: |
0.5% |
Current Range: |
0-5500A |
| Weight: |
200KG |
Timer: |
0-999.99 |
| Usage: |
High Voltage Circuit Breaker |
Burden: |
35KVA |
| Keyword: |
Primary Injection Test |
Power Supply: |
380V AC |
TEST-905 5000A primary injection testing of circuit breaker 35KVA in smart grid substation
Primary injection testing is suitable for testing over-current trip relays attached to a circuit breaker. By injecting the current into the system we can measure if the breaker will trip or fail, and how long the current is live before the circuit is broken.
A large current (between 1A and 5,000A depending on system specifications and test requirements) is injected directly on the primary side of the electrical system such as a circuit breaker. The objective of the test is to identify how the system operates under various levels of current load. Primary injection testing is suitable for testing over-current trip relays attached to a circuit breaker.
The primary injection testing is the only way to prove correct installation and operation of the whole protection chain, as involves testing the entire circuit; current transformer primary and secondary windings, relays, trip and alarm circuits, circuit breakers and all wiring are checked.
The MODEL TEST-905 is a powerful primary injection tester capable of testing circuit breakers up to 5,500 amperes frame size. Its primary applications are for testing low-voltage molded-case and metal-clad AC circuit breakers. The unit may also be used for high-current applications such as ratio transformers and heat runs. The TEST-905 runs on 380VAC. This rugged tester has been designed with a focus on durability and ease-of-use.
FEATURES
- Built-in digital timer resolution 1 ms .
- Made up of two units, control and power unit
- Thermal and short-circuit protection.
- Permanent current up to 5000 A, 35KVA
- Max current output up to 5500A.
- Built-in digital ammeter 0.5% accuracy.
PARAMETERS
| Electrical parameters |
| Accuracy |
±0.5% |
| Power Supply(AC) |
380V·70A, 50Hz/60Hz |
| Current Output (AC) |
5000A·5V or 2500A·10V |
| Capacity |
25KVA |
| The current output waveform distortion |
≤5% |
| Primary current |
| Range |
0-5500A |
| Resolution |
0.1A |
| Accuracy |
<0.5% |
| Secondary measurement |
| Range |
0-6A |
| Resolution |
0.001A |
| Accuracy |
<0.5% |
| Current duration |
| 5000A range |
5000A 2-3minutes
2500A 3-6minutes |
| 2500A range |
2500A 2-3minutes |
| With timer |
| Range |
0.0001～999.99S |
| Resolution |
0.001S |
| Accuracy |
<0.5%±5 words |
| Mechanical parameters |
| Dimensions (W×D×H) (mm) |
430×430×445 and 550×450×600 |
| Weight(kg) |
Control Host 68kg,
External voltage regulator weight 55kg |
| Environmental conditions |
| Temperature |
-10°C to 40°C |
| Relative humidity |
≤80% |
SELECTION GUIDE
| Model |
ACCU
RACY |
Primary
current |
AMMETER
(0-6A) |
TIMER |
POWER |
INJECTION CURRENT TIME |
DIMENSION(W×D×H)(mm) |
WEIGHT |
REMARK |

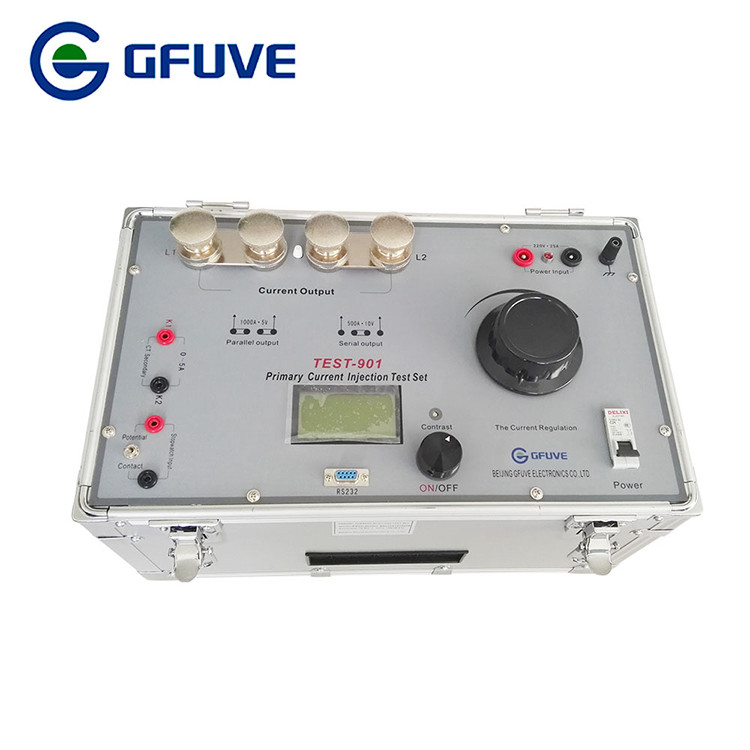

| TEST-901 |
0.5% |
0-1100A |
YES |
YES |
5KVA |
1000A: 2-3min;
500A:3-6min |
430×260×260 |
25KG |
Integrated structure |
| TEST-902 |
0.5% |
0-2200A |
YES |
OPTIONAL |
12KVA |
2000A:2-3min;
1000A:3-6min |
360×300×295 and 320×300×300 |
35KG+15KG |
Fission structure |
| TEST-903 |
0.5% |
0-3300A |
YES |
OPTIONAL |
15KVA |
3000A:2-3min;
1500A:3-6min |
380×350×360 and 340×290×420 |
48KG+42KG |
Fission structure |
| TEST-905 |
0.5% |
0-5500A |
YES |
OPTIONAL |
25KVA |
5000A:2-3min;
2500A:3-6min |
430×430×445 and 550×450×600 |
68KG+55KG |
Fission structure |
