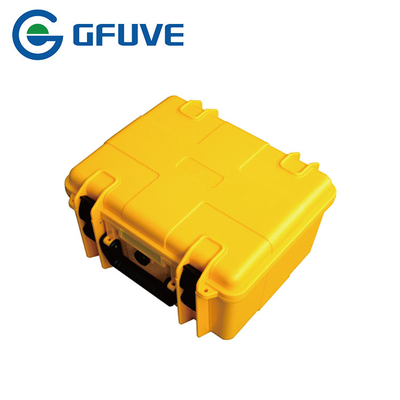

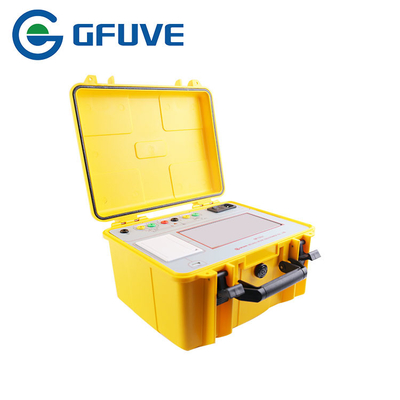

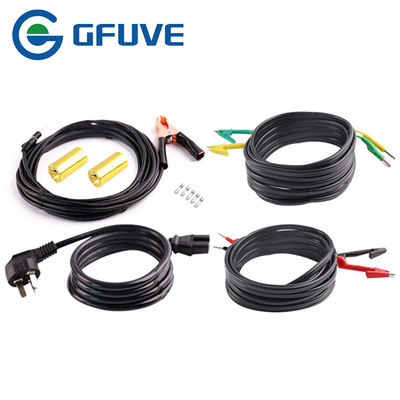

GF1061P PORTABLE YELLOW COLOR PT ANALYZER WITH PRINTER AND BATTERY
-
-
Large Image :
GF1061P PORTABLE YELLOW COLOR PT ANALYZER WITH PRINTER AND BATTERY
|
Product Details:
| Place of Origin: |
BEIJING CHINA |
| Brand Name: |
GFUVE |
| Certification: |
ISO9001, CE, UL |
| Model Number: |
GF1061P |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1sets |
| Price: |
30000-35000USD |
| Packaging Details: |
standard export wooden box |
| Delivery Time: |
2-3weeks |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
200sets/month |
|
Detailed Product Description
| CLASS: |
0.02% |
Standard: |
IEC60044-6, ANSI C57.13, IEC61869 |
| PT: |
1-10000 |
PHASE ERROR: |
2min |
| Ratio Error: |
0.02% |
Type: |
Pt Analyzer |
| Weight: |
4kg |
LCD: |
7' Touch TFT Color LCD |
| Color: |
Yellow |
Burden: |
0-1000VA |
| Printer: |
58mm Thermal Printer |
GF1061P PORTABLE YELLOW COLOR PT ANALYZER WITH PRINTER AND BATTERY
GF1061 GF1061P PORTABLE YELLOW COLOR PT ANALYZER is mainly used for field or lab testing, it can finish the measurements (M) and protection (P) class PT. Adopt 7 inch touch TFT LCD, self-equipped mini type printer supporting field printing; supporting to use USB flash disk to dump data. The PT Analyzer is the most complete and easy-to-use testing system for protection and metering CTs according to IEEE and IEC standards.
PT Analyzer is an all in one solution for testing all type of PT as per IEC and IEEE standards. It is an equipment with high ROI ( Return On Investment ) . PT Analyzer is an all in one solution for testing all type of PT as per IEC standards. It is an equipment with high ROI ( Return On Investment )
MAIN FUNCTIONS
| II. Voltage Transformer (PT) |
| 1. Excitation characteristic test |
| 2. Transformation ratio test |
| 3. Polarity |
| 4. Ratio error, phase error |
| 5. Degauss |
| 6. Calculation of knee point value |
| 7. Actual secondary load test (burden test) |
| 8. Resistance test |
PARAMETERS
| Electrical parameters |
| Accuracy |
0.05% |
| Power supply |
AC 220V±10% or AC 120V±10%, 50/60Hz or Battery |
| Output voltage |
0-100Vrms |
| Output current |
0-5Arms (20A peak-value) |
| Output power |
0-400 VA (1500 VApeak) |
| Automatic frequency variation range |
0.1-60Hz |
| Equivalent excitation voltage |
≤5000V |
| Accuracy |
≤0.5% |
| Secondary winding DC resistance measurement |
Range |
0.1-1000Ω |
| Accuracy |
≤0.05% |
| Secondary actual load measurement |
Range |
5VA-1000VA |
| Accuracy |
≤0.5%±0.1VA |
| PT phase error measurement |
Accuracy |
±1min (typical) / 3 min (guaranteed) |
| Resolution |
0.1min |
| PT ratio error measurement |
Range |
1-10000 |
| Accuracy |
≤0.05% |
| Standards |
| Reference standards |
GB1207-2006, GB1208-2006, GB16847-1997
IEC60044-1, IEC60044-6, IEC61869-2, ANSI/IEEE C57.13 |
| Safety standards |
GB 4793.1-2007 |
| EMC |
EMC standard 89/336/EEC |
| FCC Subpart B of Part 15 Class A |
| IEC 1000-4-2 /3 /4 /6 |
| Mechanical parameters |
| Overall dimension (L x W x H) (mm) |
280 x 250 x 160 |
| Weight (kg) |
≤4 |
| Environmental conditions |
| Relative humidity |
Relative humidity 5%-95% not condensing |
| Operating temperature |
-10°C to +50°C |
| Storage temperature |
-20°C to +70°C |
| Altitude |
≤1000m |
