GFUVE 500/5a class 0.5 grey color China clamp split core ct for 3 phase digital power meter
Detailed Product Description
| CLASS: |
0.2, 0.5 |
RATIO: |
500:5 |
| COLOR: |
Grey |
JAW: |
50MM |
| WEIGHT: |
550G |
P50: |
Clamp Split Core Ct |
| OUTPUT SIGAL: |
0-5A |
LOAD: |
2.5VA |
| Frequency Range: |
40-500HZ |
Material: |
ABS +PC+ Permalloy |
P50 GFUVE 500/5a class 0.5 grey color China AC clamp split core ct for 3 phase digital power meter

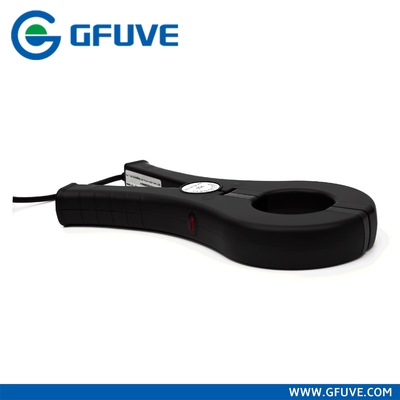

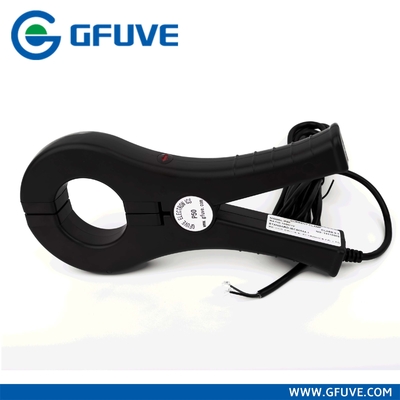

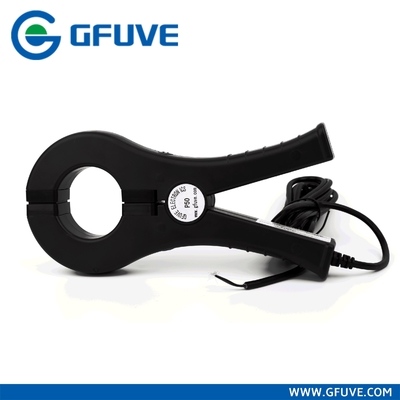

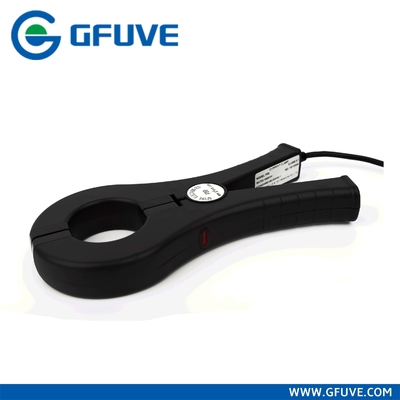

The model P50 500a clamp split core ct is a high accuracy ct, the advanced design ensures enhanced linearity and the jaw opening system provides enhanced safety. its diameters are 50mm, low phase shift, high precision ac current transformer. This clamp ct is suite cable fault testing, ct ratio testing, large current testing and instruments testing etc.
The P50 is a general purpose 500A clamp split core ct designed for use with DMMs, loggers and other instruments that have a current input. It has a 100:1 ratio and output of 10mA per amp per amp measured in the jaw. The P50 has an integral 2.5m lead terminated. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy 0.5% and low phase shift and wide frequency response are important.
APPLICATIONS
- Power quality measuring
- Large industrial loads
- Measuring around cable bundles
- Power load monitoring
- Waveform analysis
- Energy meter calibrator
FEATURES
- Measurement range of 1mA to 1200A AC
- Large jaw opening accommodates conductors up to two 500kcmil
- Improved ergonomic design and easy operation
- High content nickel metal core
- Conforms to EN 61010, 600V CAT III
- Low phase shift for power measurement
- Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
- UL, CE mark
PARAMETERS
| Electrical parameters |
| Ratio |
1000: 1 or 2000:1 (customized) |
| Accuracy class |
0.1%, 0.2%, 0.5% |
| Primary current |
0 - 1000A AC |
| Secondary current |
1mV/A AC, 5mV/A or (customized) |
| Max. Cont. Input current |
1200A |
| Over voltage category |
CAT III 600V |
| Output signal (AC current) |
333mV, 500mV,1V,2V,5V AC at nominal input current |
| AC Accuracy(1000A Range) |
| 0-10A |
≤0.5% |
| 10-100 |
≤0.2% |
| 10-1200A |
≤0.1% |
| AC Phase Shift(1000A Range) |
| 0-10A |
≤0.5° |
| 10-100 |
≤0.2° |
| 10-1200A |
≤0.1° |
| Frequency range |
40Hz-2000Hz |
| Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
| Temperature range |
-20°C to +55°C |
| Output |
2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors |
600 V |
| Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation |
Clamp type |
| Output mode |
Lead output (2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H)(mm) |
102.9 x 219.6 x 28 |
| Weight (g) |
550 |
| Holding wire diameter (mm) |
φ50 |
| Max. jaw opening (mm) |
50 |
| Color |
Gray or blue |
| Material |
PC+ABS+Polycarbonate, UL94 V0 |
