500/5A CLASS 0.5 100MM CABLE RING CORE AC CLAMP ON OPEN CURRENT TRANSFORMER

China 500/5A CLASS 0.5 100MM CABLE RING CORE AC CLAMP ON OPEN CURRENT TRANSFORMER supplier
500/5A CLASS 0.5 100MM CABLE RING CORE AC CLAMP ON OPEN CURRENT TRANSFORMER supplier 500/5A CLASS 0.5 100MM CABLE RING CORE AC CLAMP ON OPEN CURRENT TRANSFORMER supplier

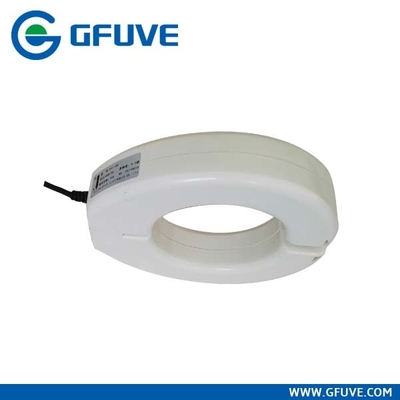

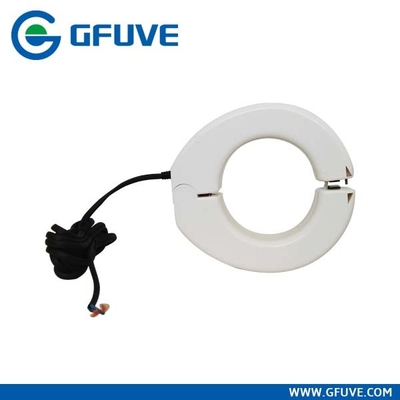

Large Image :  500/5A CLASS 0.5 100MM CABLE RING CORE AC CLAMP ON OPEN CURRENT TRANSFORMER

Product Details:

Place of Origin: BEIJING
Brand Name: GFUVE
Certification: CE, ISO9001, UL
Model Number: FU-100

Payment & Shipping Terms:

Minimum Order Quantity: 3PCS
Price: 100USD
Packaging Details: STANDARD EXPORT BOX
Delivery Time: 7DAYS
Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: 10000PCS/MONTH
Contact Now
Detailed Product Description
COLOR: WHITE CLASS: 0.5
DIAMETER: 100MM

FU-100 500/5A RING CORE AC CLAMP ON OPEN CURRENT TRANSFORMER

500/5A CLASS 0.5 100MM CABLE RING CORE AC CLAMP ON OPEN CURRENT TRANSFORMER

The GFUVE FU-100 clamp split core CTs are compact and low cost current transformers with high accuracy. The CTs are ideal for quick and easy installation without disconnecting cables during installation. Multiple installation mechanisms provide stable and durable current measurement.

FEATURES

  • Most cost-effective
  • Faster installation
  • Safe and easy installations
  • High accuracy 0.5
  • Holding wire diameter: φ100mm
  • Ratio’s ranging from 400/1A to 3000/5A
  • CE, UL

PARAMETERS

Technical parameters　
Standards IEC/EN60044-1 & IEC61010-1 & IEC61869-2&ANSI C57.13
Ratio 1000: 5 or 2000:5 , customized
Nominal input current(Primary current) 400A/500A/600A/800A/1000A/1200A/1500A/2000A/3000A
Overload withstand 1.2 times rated current continuously
Accuracy 0.2%, 0.5 %, 1%
System Voltage 720V(0.72kV)
Output signal 1A or 5A
333mV AC or 100mV-2V optional
Burden 2.5VA
Frequency range 40 Hz-500 Hz
Dielectric strength 3KV 50Hz/60Hz at 1 minute
Output Standard 2.5 meter cable
Max. jaw opening 100mm
Mechanical parameters　
Dimensions (W×D×H) (mm) 170mm×184.5mm×41mm
Weight(Kg) 1
Operating conditions
Operating temperature -25°C to +55°C
Relative Humidity 0-85% non-condensing
Altitude <3500 meters
Condition No existence of severely begrimed, erosive and
radioactive gas in the air. Permission of long-term
operation under rated current.
