Smart primary injection test system
-
-
Large Image :

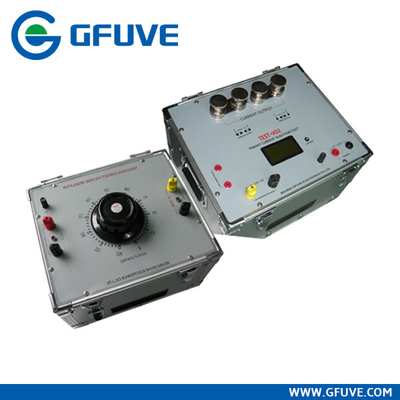

Smart primary injection test system
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
ISO 9001 : 2008; CE |
| Model Number: |
TEST-902 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1SET |
| Price: |
USD6000-12000 |
| Packaging Details: |
Standard export box |
| Delivery Time: |
7days |
| Payment Terms: |
T/T, Western Union, Paypal |
| Supply Ability: |
200pcs/month |
|
Detailed Product Description
| Power: |
Electronic |
Usage: |
Auto Testing Machine |

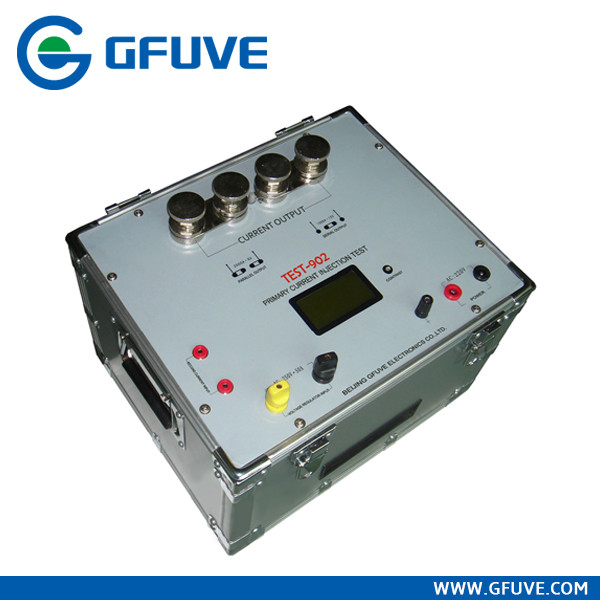

TEST-902 2000A SMART PRIMARY INJECTION TEST SYSTEM
TEST-902 primary current injection test sYSTEM adopts ARM chip to control the output process and large capacity of toroidal transformer. It is equipped with LCD screen display current meter, also showed primary current value, secondary current value, turn ratio and the action time. Aluminum alloy body with PC panel component the shell.TEST-902 is mainly applied to test CT turn ratio in the power system and the contact resistance etc, which need large current.
PARAMETERS
|
Electrical parameters |
|
Accuracy |
±0.5% |
|
Power Supply (AC) |
220V±10%·50A, 50Hz/60Hz or
110V±10%·100A, 50Hz/60Hz |
|
Current Output (AC) |
2000A·6V or 1000A·12V |
|
Capacity |
12KVA |
|
The current output waveform distortion |
≤5% |
|
Primary current |
|
Range |
0-2200A |
|
Resolution |
0.1A |
|
Accuracy |
<0.5% |
|
Secondary measurement |
|
Range |
0-6A |
|
Resolution |
0.001A |
|
Accuracy |
<0.5% |
|
Current duration |
|
2000A range |
2000A 2-3minutes
1000A 3-6minutes |
|
1000A range |
1000A 2-3minutes |
|
Mechanical parameters |
|
Dimensions (W×D×H) (mm) |
360×300×295 |
|
Weight (kg) |
Host 35kg,

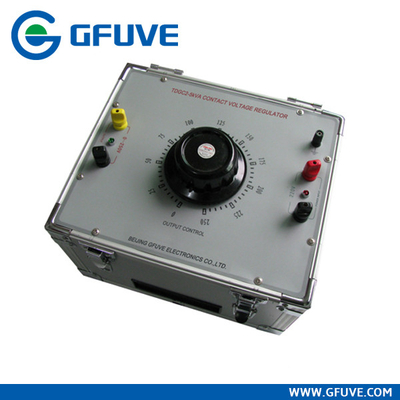

External voltage regulator weight 15kg |
|
Environmental conditions |
|
Temperature |
-10°C to 40°C |
|
Relative humidity |
≤80% |
