HIGH ACCURACY AC Clamp-On Current Micro CTS
-
-
Large Image :
HIGH ACCURACY AC Clamp-On Current Micro CTS
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
ISO 9001 : 2008; CE |
| Model Number: |
Q8A |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3pcs |
| Price: |
USD1---250 |
| Packaging Details: |
Standard export box |
| Delivery Time: |
7days |
| Payment Terms: |
T/T, Western Union, Paypal |
| Supply Ability: |
20000pcs/month |
|
Detailed Product Description
| Usage: |
Magnetic Sensor |
Theory: |
Current Sensor |
| Output: |
Analog Sensor |
Class: |
0.1% |
| Currant Range: |
0-12A |

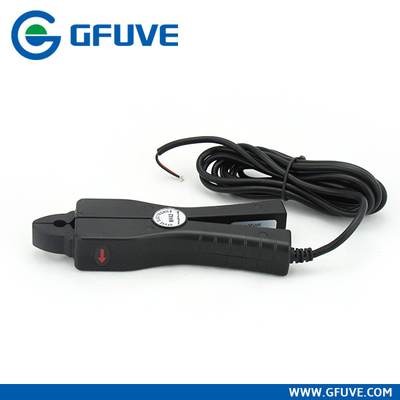

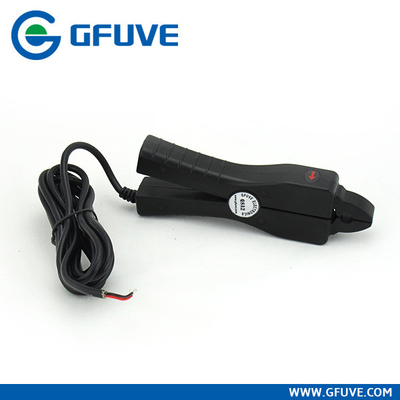

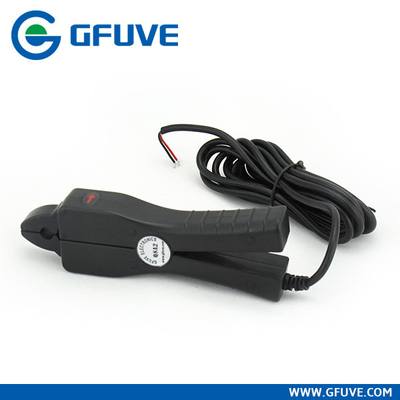

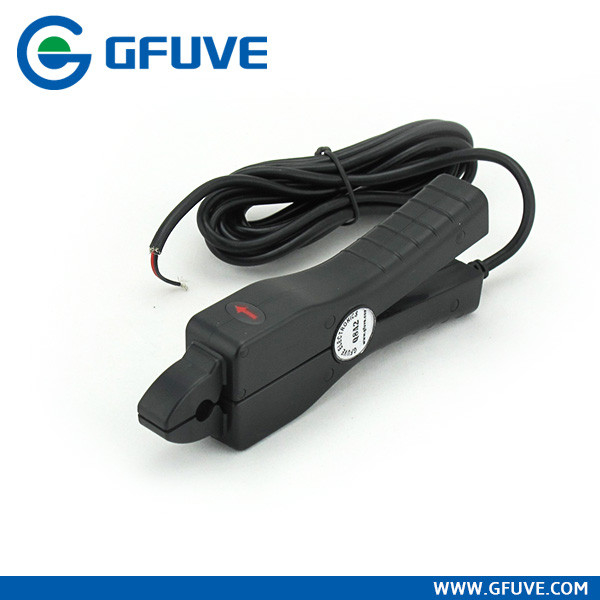

Q8A HIGH SENSITIVITY PERMALLOY CORE AC Clamp-On Current Micro CTS
The model Q8A permalloy core ac clamp-on current micro cts with high accuracy up to 0.1% has been designed for use with multimeters, recorders, power analysers, safety testers etc.
APPLICATIONS
-
Power quality monitoring
-
CT secondary current detection
-
Smart logger
-
Distributed measurement systems
FEATURES
-
Flexible and light weights, exquisite appearance
-
Easy &quick installation in tight spaces
-
Excellent linearity
-
Maximum measuring current up to 12A
-
Suitable for 5A, 10A cable online measurement
-
Holding wire diameter: φ8mm
-
Dimension: 45mm×158mm×25mm
-
Load capacity: ≤4Ω
-
Installation: clamp type
-
Output mode: lead output
PARAMETERS
|
Electrical parameters |
|
Ratio |
1000: 1 or 2000:1 (customized) |
|
Accuracy |
0.1 %,0.2% |
|
Primary current |
0 - 10A AC |
|
Secondary current |
0 - 10mA AC (customized) |
|
Max. Cont. Input current |
12 A |
|
Over voltage category |
CAT III 600V |
|
Output signal |
10mA AC at nominal input current, or 0.333V AC output |
|
Frequency range |
40Hz-2000Hz |
|
Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
|
Temperature range |
-20°C to +55°C |
|
Output |
2.5 meter cable with D01 connector |
|
Max. voltage not insulated conductors |
600 V |
|
Standard |
EN 61010-1, EN 61010-2-032 |
|
Installation |
clamp type |
|
Output mode |
lead output(2.5m) |
|
Mechanical parameters |
|
Dimensions (L x W x H) (mm) |
45x158x25 |
|
Weight (g) |
250 |
|
Holding wire diameter (mm) |
φ8 |
|
Max. jaw opening (mm) |
8 |
