JLSZV-35W 3P3W Outdoor Combination Instrument Transformer Three-phase Full Casting High Accuracy Potential Transformer

Large Image : JLSZV-35W 3P3W Outdoor Combination Instrument Transformer Three-phase Full Casting High Accuracy Potential Transformer

Product Details:

Place of Origin:	Beijing, China
Brand Name:	GFUVE
Certification:	IEC60044-1; IEC 61869; NTC 2205; ANSI/IEEE C57.13
Model Number:	JLSZV-35W 3P3W

Payment & Shipping Terms:

Minimum Order Quantity:	3 pieces
Price:	USD 300/ piece
Packaging Details:	standard export carton
Delivery Time:	within 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Standards:	IEC60044-1; IEC 61869; NTC 2205; ANSI/IEEE C57.13	Rated Voltage Radio:	35/0.1
Accuracy Class Three-phase Rated Secondary Output(VA):	0.2---2×40；0.5---2×120	Weight (kg):	450
Surface Creepage Distance (mm):	1300	Limited Output (VA):	2×1000

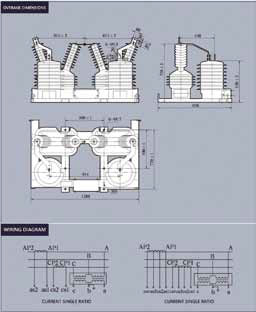

JLSZV-35W 3P3W Outdoor Combination Instrument Transformer Three-phase Full Casting High Accuracy Potential Transformer

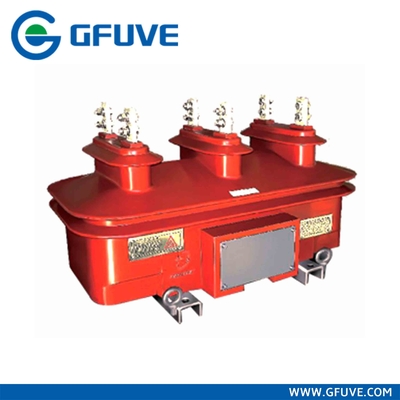

JLSZV-35W 3P3W Outdoor Combination Instrument Transformer Three-phase Full Casting High Accuracy Potential Transformer
