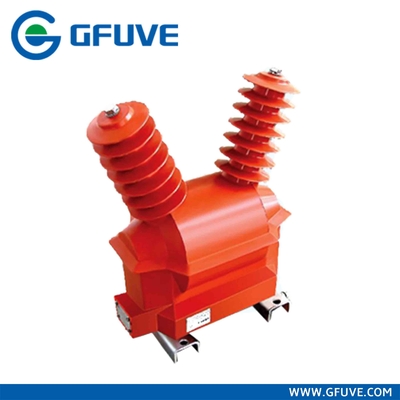

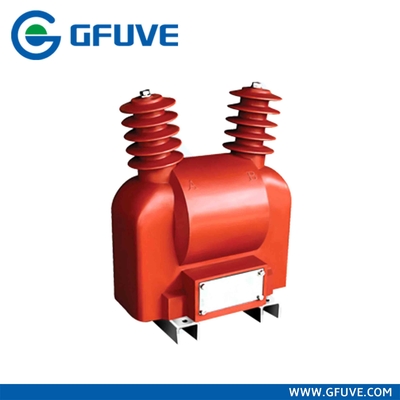

JDZW-20 JDZXW-20G Low Voltage Single Phase Voltage Transformer All Insulation Outdoor 20KV Casting InsulationEpoxy resin

Large Image : JDZW-20 JDZXW-20G Low Voltage Single Phase Voltage Transformer All Insulation Outdoor 20KV Casting InsulationEpoxy resin

Product Details:

Place of Origin:	Beijing, China
Brand Name:	GFUVE
Certification:	IEC60044; IEC 61869; ANSI/IEEE C57.13
Model Number:	JDZW-20 JDZXW-20G

Payment & Shipping Terms:

Minimum Order Quantity:	3 pieces
Price:	USD 70 / piece
Packaging Details:	standard export carton
Delivery Time:	within 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 pieces per month

Contact Now

Detailed Product Description

Standards:	IEC60044; IEC 61869; ANSI/IEEE C57.13	Limited Output (VA):	800/400/500/600/300
Rated Insulation Level(KV):	24/65/125	Surface Creepage Distance (mm):	860
Once Fuse (A):	0.2	Weight (kg):	56

JDZW-20 JDZXW-20G Low Voltage Single Phase Voltage Transformer All Insulation Outdoor 20KV Casting Insulation Epoxy resin

This model of instrument current and voltage transformers includes two versions: JDZW-20 and JDZXW-20G. The units are cast in epoxy resin and fully enclosed. The units are suitable for electric systems of rated frequency of 50/60Hz and rated voltage of 24kV and below. They are used in indoor or outdoor service conditions. The products are designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.

JDZW-20 JDZXW-20G Low Voltage Single Phase Voltage Transformer All Insulation Outdoor 20KV Casting InsulationEpoxy resin
