HEAVY CURRENT 1000A PRIMARY CURRENT INJECTION TESTER
-
-
Large Image :
HEAVY CURRENT 1000A PRIMARY CURRENT INJECTION TESTER
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
ISO 9001 : 2008; CE |
| Model Number: |
TEST-901 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1SET |
| Price: |
USD6000-12000 |
| Packaging Details: |
Standard export box |
| Delivery Time: |
7days |
| Payment Terms: |
T/T, Western Union, Paypal |
| Supply Ability: |
200pcs/month |
|
Detailed Product Description
| Class: |
0.5 |
Type: |
PRIMARY CURRENT INJECTION TESTER |
| Weight: |
28KG |
Current Range: |
0-1100A |
| Capacity: |
5KVA |
Function: |
Gearswitch Testing, Resistance Testing, Ct Testing |
| Timer: |
0.0001～999.99S |

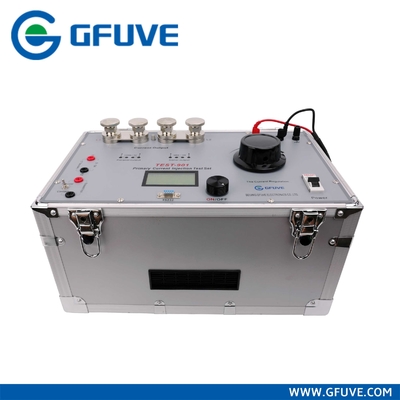

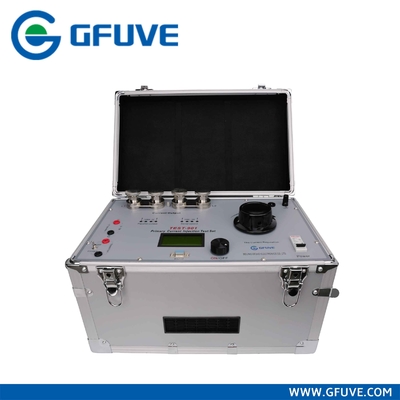

TEST-901 HEAVY CURRENT 1000A PRIMARY CURRENT INJECTION TESTER

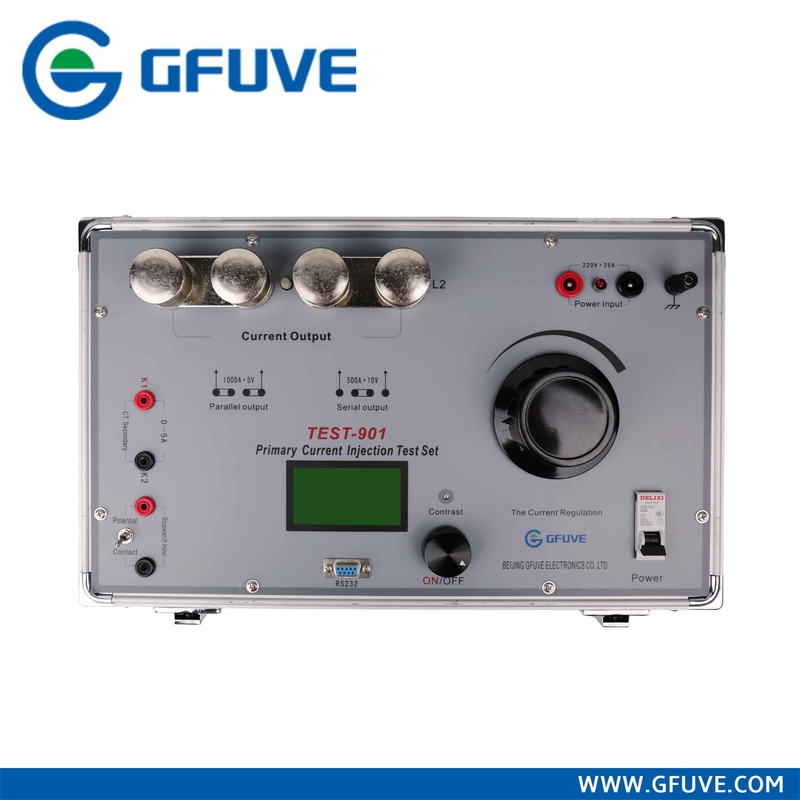

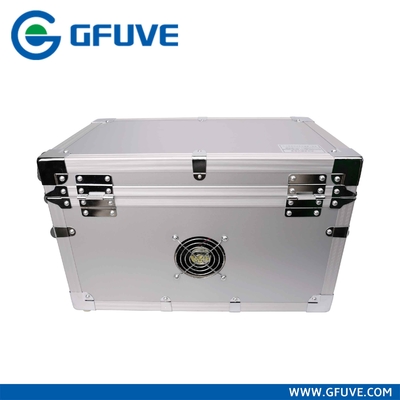

TEST-901 1000A primary current injection tester adopts ARM Chip to control its output process and large capacity of toroidal transformers. It is equipped with LCD display and current meter; it can show primary current value, second current value, turn ratio and the action time. Packing is used as aluminum alloy body with PC panel. TEST-901 is mainly applied to CT turn ratio testing in the power system and contact resistance test which need large current.
FEATURES
- Permanent current up to 1000 A, 5KVA
- Max current output up to 1100A.
- Built-in digital ammeter 0.5% accuracy.
- Built-in digital timer resolution 1 ms (Optional).
- Made up of two units, control and power unit
- Thermal and short-circuit protection.
PARAMETERS
| Electrical parameters |
| Accuracy |
±0.5% |
| Power Supply(AC) |
220V±10%·25A, 50Hz/60Hz or
110V±10%·50A, 50Hz/60Hz |
| Current Output (AC) |
1000A·5V or 500A·10V |
| Capacity |
5KVA |
| The current output waveform distortion |
≤5% |
| Dual protection |
overload electronic protection and software protection |
| Primary current |
| Range |
0-1100A |
| Resolution |
0.1A |
| Accuracy |
<0.5% |
| Secondary measurement |
| Range |
0-6A |
| Resolution |
0.001A |
| Accuracy |
<0.5% |
| Current duration |
| 1000A range |
1000A 2-3minutes
500A 3-6minutes |
| 500A range |
500A 2-3minutes |
| Mechanical parameters |
| Dimensions (W×D×H) (mm) |
430×260×260 |
| Weight(kg) |
28 |
| Environmental conditions |
| Temperature |
-10°C to 40°C |
| Relative humidity |
≤80% |
