FQ-RCTA03 Flexible AC Rogowski Coil Current Sensor Wide Current Range Easy Installed in Tight Spaces

Name: FQ-RCTA03 Flexible AC Rogowski Coil Current Sensor Wide Current Range Easy Installed in Tight Spaces
Brand: Beijing GFUVE Electronics Co.,Ltd.
SKU: FQ-RCTA03
Price: 80 USD
Availability: InStock

FQ-RCTA03 Flexible AC Rogowski Coil Current Sensor Wide Current Range Easy Installed in Tight Spaces supplier

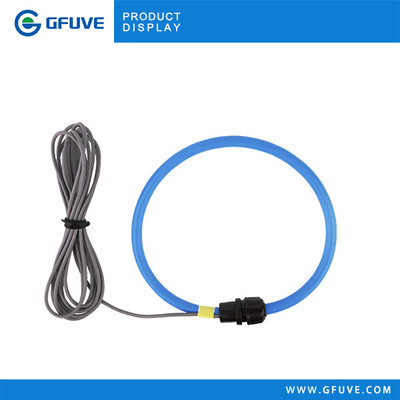

Large Image : FQ-RCTA03 Flexible AC Rogowski Coil Current Sensor Wide Current Range Easy Installed in Tight Spaces

Product Details:

Place of Origin:	Beijing, China
Brand Name:	GFUVE
Certification:	EN 61010-1, EN 61010-2-032, IEC60044-1
Model Number:	FQ-RCTA03

Payment & Shipping Terms:

Minimum Order Quantity:	3 pieces
Price:	USD 80/ piece
Packaging Details:	standard export carton
Delivery Time:	within 7days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Current Range:	60A/600A/6000A (10%~100%In)	Output Sensitivity:	50mV/A, 5mV/A, 0.5mV/A
Accuracy:	±1%(10%~100%In) @45-65Hz	Phase Error:	±1°(10%~100%In) @45-65Hz ±10°@ 20kHz
Linearity Error:	±0.2%(10%~100%In)	Position Sensitivity:	±2%(The Distance From The Measured Cable To The Junction Is Above 20mm)
External Influence:	±1% Max(More Than 200mm From The Coil)	Noise:	8mV Rms(60A); 2 MV Rms (60A)
Temperature Coefficient:	±0.08%/°C Of The Reading Data

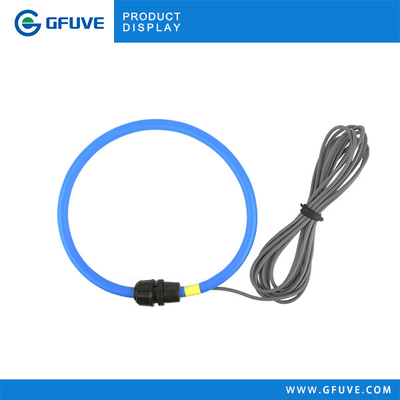

FQ-RCTA03 Flexible AC Rogowski Coil Current Sensor Wide Current Range Easy Installed in Tight Spaces

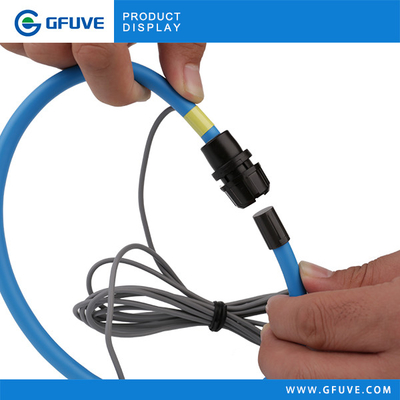

The FQ-RCTA03 Flexible AC coil is designed for easy installed in tight spaces and without the need for
dismantling the primary busbar or cables.

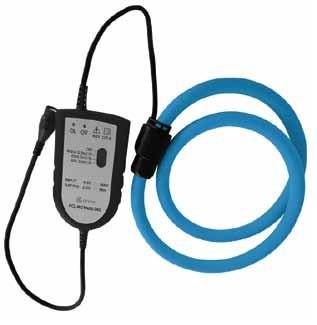

It includes a flexible Rogowski coil probe and electronic modules. The signal from the coil probe can be amplified by the electronic modules through the integration processing. The output signal can be directly used in oscilloscope, digital multimeter or data logger recording instrument.

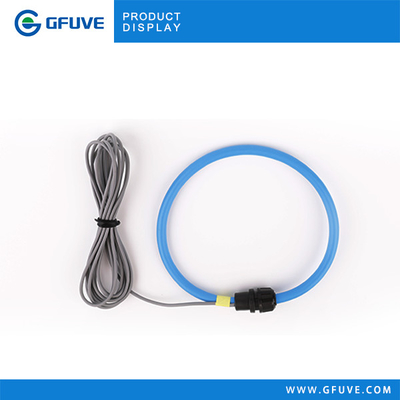

FQ-RCTA03 Flexible AC Rogowski Coil Current Sensor Wide Current Range Easy Installed in Tight Spaces
