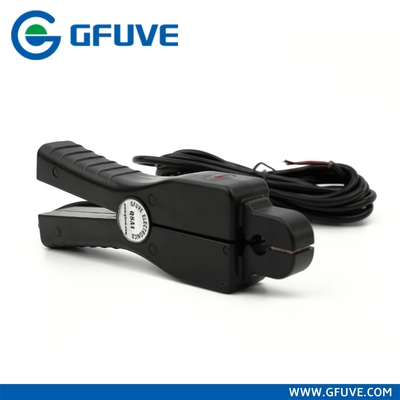

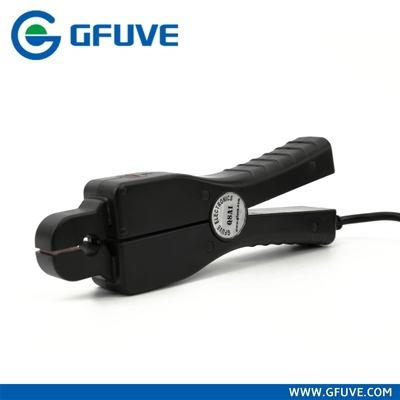

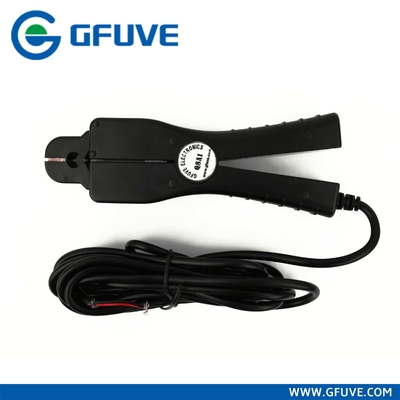

Q8A-1 High precision nickel metal core AC clamp on current probe
The model Q8A1 current probe is based on AC transformer technology for use in measurement of AC current, it is suitable for 5A, 10A cable online measurement.
Features
- Suitable for 5A, 10A cable online measurement
- Holding wire diameter: φ8mm
- Dimension: 42.6mm × 122.5mm × 23mm
- Load capacity: ≤4Ω
- Installation: clamp type
- Output mode: lead output
Parameters
| Electrical parameters |
| Ratio |
1000: 1 or 2000:1 (customized) |
| Accuracy class |
0.1% |
| Primary current |
0 - 10A AC |
| Secondary current |
0 - 10mA AC (customized) |
| Max. Cont. Input current |
12 A |
| Load capacity |
≤4Ω |
| Over voltage category |
CAT III 600V |
| Output signal (AC current) |
From 0 to 10mA AC at nominal input current |
| Output signal (AC voltage) |
From 0 to 100mV AC at nominal input current |
| Frequency range |
40Hz-2000Hz |
| Dielectric strength |
3KV 50Hz/60Hz at 1minute |
| Temperature range |
-20°C to +55°C |
| Output |
2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors |
600 V |
| Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation |
Clamp type |
| Output mode |
Lead output(2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) |
42.6x122.5x23 |
| Weight (g) |
250 |
| Holding wire diameter (mm) |
φ8 |
| Max. jaw opening (mm) |
8 |
| Color |
Black |
| Material |
PC+ABS+Polycarbonate, UL94 V0 |
