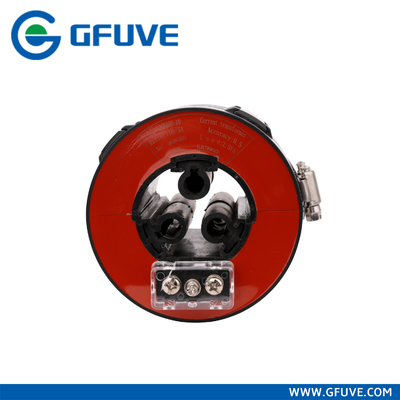

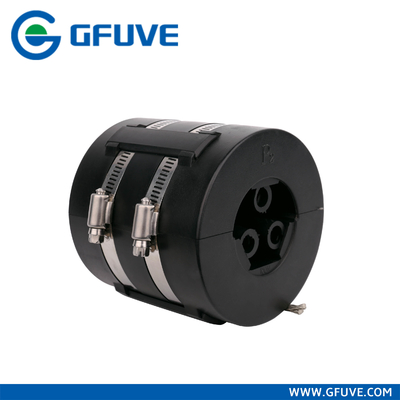

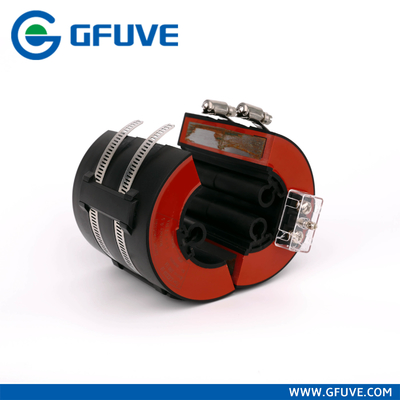

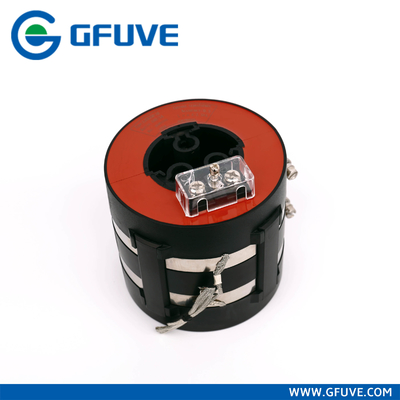

LZCK350-10 Split Core Current Transformer
LZCK series split core current transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in compact fully insulated ring network switchgears such as ABB-SafeRing/SafePlus...and cable distribution boxes. The transformer can be directly installed at the inlet and outlet cables.The slice is imported silicon material. The semicircular ring core and secondary windings are vacuum poured by insulated resin.
Parameters
| Technical parameters |
| Standards | IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13 |
| Range of primary rated current | 20-600A |
| Range of Rated load | ≤25VA |
| Rated frequency | 50/60Hz |
| Rated secondary current | 5A or 1A |
| Rated short-time thermal current | 40kA, 1S |
| Rated continuous thermal current | 120%I1n |
| Secondary winding power frequency withstand voltage | 3kV, 1min |
| Instrument security factor | (FS) <10 |
| Mechanical parameters |
| Dimensions (W×D×H) (mm) | φ50xφ110x105 |
| Weight (kg) | 3.1 |
| Operating conditions |
| Operating temperature | -35°C to +55°C |
| Daily average temp | < +40°C |
| Altitude | <3500 meters |
| Conditions | No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed. |
|
Technical data
| Type | LZCK350-10 | LZCK350-10 | LZCK350-10 |
| Purpose | Measuring current transformer | Protection current transformer | Double winding current transformer |
| Rtio | Accuracy class and rated load(VA) | Accuracy class and rated load(VA) | Composite accuracy class and rated load(VA) |
| I1/I2 | 0.5 | 1 | 3 | 10P15 | 10P10 | 10P5 | 0.5 | 1 | 10P10 | 10P5 |
| 20/1 | | | 0.5 | | | 0.75 | | | | |
| 30/1 | | 0.5 | 1.5 | | 0.75 | 1.25 | | | | |
| 50/1 | | 1 | 2 | | 1.25 | 2 | | | | |
| 75/1 | 2 | 2.5 | 3.75 | 1.25 | 2 | 3 | | 2 | 1 | 2 |
| 100/1 | 2.5 | 3.75 | 5 | 2 | 2.5 | 5 | 2 | 2.5 | 1.5 | 2.5 |
| 200/1 | 5 | | | 3 | 5 | 7.5 | 2.5 | | 2 | |
| 300/1 | 10 | | | 3 | 5 | 7.5 | 3.75 | | 2.5 | |
| 400/1 | 10 | | | 3 | 5 | 10 | 5 | | 2.5 | |
| 500/1 | 25 | | | 3.75 | 6.25 | 10 | 5 | | 2.5 | |
| 600/1 | 25 | | | 5 | 7.5 | 10 | 7.5 | | 5 | |
| | | | | | | | | | | |
| Type | LZCK350-10 | LZCK350-10 | LZCK350-10 |
| Purpose | Measuring current transformer | Protection current transformer | Double winding current transformer |
| Rtio | Accuracy class and rated load(VA) | Accuracy class and rated load(VA) | Composite accuracy class and rated load(VA) |
| 50/5 | | | 2.5 | | | 2 | | | | |
| 75/5 | | | 2.5 | | | 3 | | | | |
| 100/5 | 2.5 | | 3.75 | | | 5 | | 2.5 | | 2.5 |
| 200/5 | 7.5 | | | | | | 2.5 | 5 | | 2.5 |
| 300/5 | 10 | | | | | | 5 | | 2 | 2.5 |
| 400/5 | 15 | | | | 2.5 | | 7.5 | | 2.5 | 5 |
| 500/5 | 25 | | | | 2.5 | | 7.5 | | 2.5 | 5 |
| 600/5 | 30 | | | | 3.75 | | 10 | | 3 | 7.5 |
Selection guide
| Model | Primary rated
current | Rated load | Aperture
(mm) | Description
(mm) | Weight
(kg) | Water-proof |
| LZCK-55 | 100-1500A | ≤10VA | φ55 | 180×138×52 | 2 | IP65 |
| LMCK185-10 | 300-3000A | ≤25VA | φ185 | 350×283×55 | 4.5 | IP65 |
| LZCK310-10 | 300-600A | ≤10VA | φ50 | φ50 x φ110 x 32 | 1 | silicon case (option) |
| LZCK322-10 | 30-600A | ≤10VA | φ50 | φ50 x φ110 x 52 | 1.6 | silicon case (option) |
| LZCK350-10 | 20-600A | ≤25VA | φ50 | φ50 x φ110 x 105 | 3.1 | silicon case (option) |
| LZCG530-10 | 30-600A | ≤20VA | φ45 | φ45 x φ120 x 65 | 5 | silicon case (option) |
Ordering information
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make a order. Special specifications could be customized. All kinds of different specifications and parameters current transformers can be made according to your needs.
