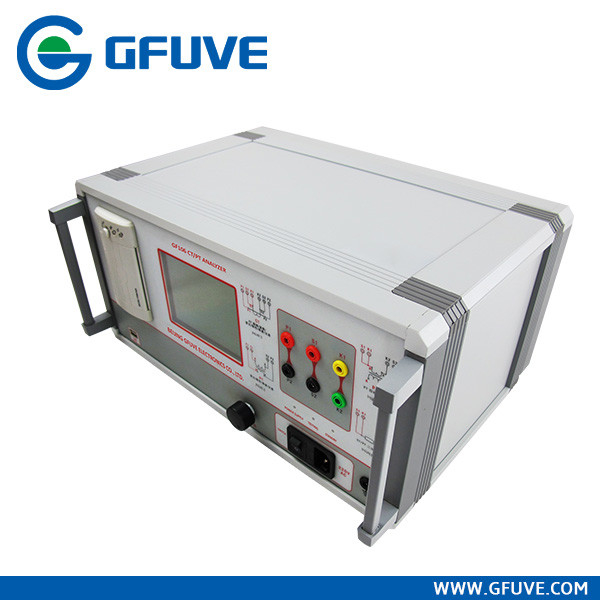

CHINA HIGH QUALITY CURRENT TRANSFORMER BURDEN TEST SET

China CHINA HIGH QUALITY CURRENT TRANSFORMER BURDEN TEST SET supplier

Large Image :  CHINA HIGH QUALITY CURRENT TRANSFORMER BURDEN TEST SET

Product Details:

Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: ISO9001, CE, UL
Model Number: GF106FY-1

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: 8000USD
Packaging Details: standard export wooden box
Delivery Time: 4weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
CLASS: 3% Rated Current: 5A, 1A
Standard: IEC60044-1, ANSI C57.13 Rated Capacity: 0-60VA
Power Factor: COSФ=0.8, COSФ=1.0

GF106FY-1 CHINA HIGH QUALITY CURRENT TRANSFORMER BURDEN TEST SET

CHINA HIGH QUALITY CURRENT TRANSFORMER BURDEN TEST SET



Standard No: IEC 60044-1
Rated Current: 5A; 1A

Power Factor

and Rated Capacity:

COSФ=0.8: 2.5/ 3.75/ 5/ 6.25/ 7.5/ 10/ 12.5/ 15/ 20/ 30/ 40/ 50/ 60VA

COSФ=1.0: 2.5/ 3.75/ 5/ 6.25/ 7.5/ 10VA
Accuracy Class: ±3%
Operation Frequency: 60Hz
Operating Range: (1%-200%) In
Test Cable Resistance: 0.06Ω
Withstand Voltage: 2000V 1min
Operating Condition: Temperature: 10 oC ～ +40 oC
Relative Humidity (RH): up to 85% (max 90%)

Tag:

Transformer Test Equipment,

CT/PT tester,

CT/PT Analyzer
