100A/100mA CLASS 0.1 HIGH PERFORMANCE SPLIT CORE AC CURRENT CLAMP ON CT CURRENT SENSOR
-
-
Large Image :
100A/100mA CLASS 0.1 HIGH PERFORMANCE SPLIT CORE AC CURRENT CLAMP ON CT CURRENT SENSOR
|
Product Details:
| Place of Origin: |
BEIJING, CHINA |
| Brand Name: |
GFUVE |
| Certification: |
ISO9001, CE, UL |
| Model Number: |
Q20B |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3PCS |
| Price: |
USD100/PC |
| Packaging Details: |
STANDATD EXPORT BOX |
| Delivery Time: |
3DAYS |
| Payment Terms: |
D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: |
10000PCS/MONTH |
|
Detailed Product Description
| CLASS: |
0.1 |
RATIO: |
1000:1 |
| COLOR: |
GREY |
PRIMARY CURRENT: |
0-120A |
| SECONDARY SIGNAL: |
0-120mA |
PHASE SHIFT: |
0.1% |
| WEIGHT: |
350G |
TYPE: |
SPLIT CORE CURRENT SENSOR |
| MATERIAL: |
ABS |

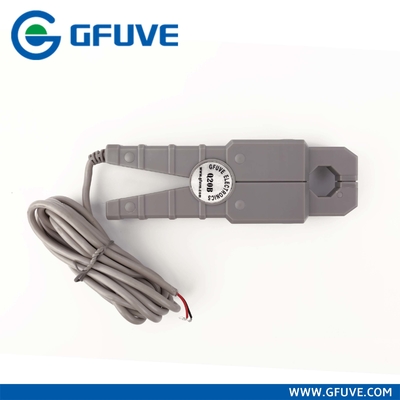

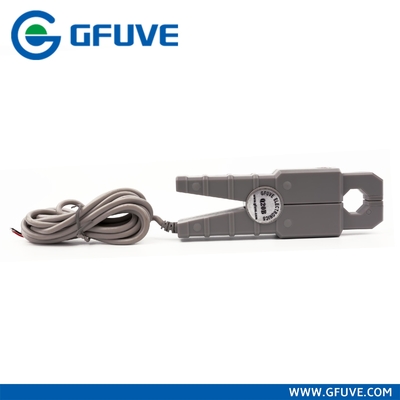

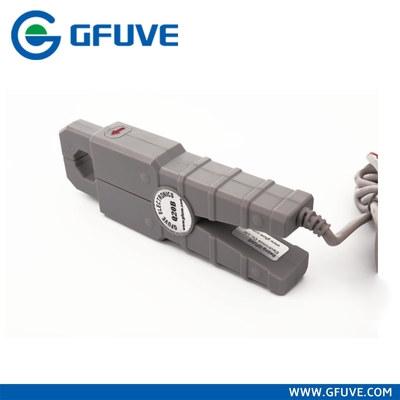

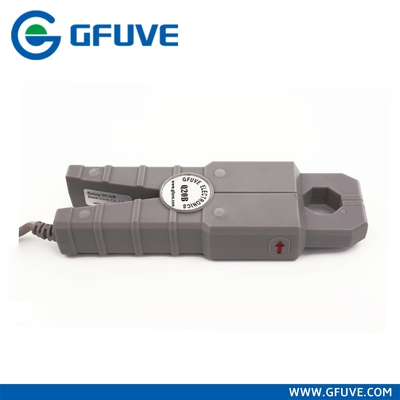

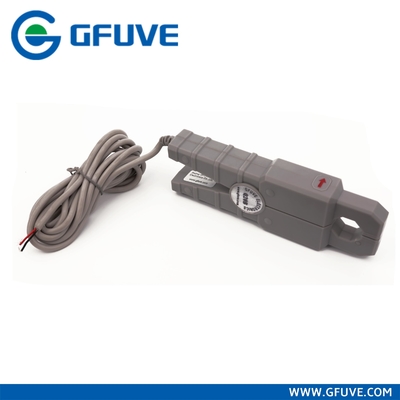

Q20B 100A HIGH PERFORMANCE SPLIT CORE AC CURRENT CLAMP ON CTS
The model Q20B openable jaw AC current clamp on cts are best-in-class devices for use with power meters, power analyzers and high performance oscilloscopes. Measurement current from 0 to 240A.
Q20B clamp on current sensor is suite for energy meter tester on site.
FEATURES
- Suitable for 200A cable online measurement
- Holding wire diameter: φ20mm
- Dimension: 56mm×168mm×27mm
- Load capacity: ≤4Ω
- Installation: clamp type
- Output mode: lead output
- Low phase shift
- Class 0.1
PARAMETERS
| Electrical parameters |
| Ratio |
1000: 1 or 2000:1 (customized) |
| Accuracy class |
0.1%, 0.2%, 0.5% |
| Primary current |
0 - 200A AC |
| Secondary current |
0 - 200mA AC or 0 - 200mV AC(customized) |
| Max. Cont. Input current |
240A |
| Over voltage category |
CAT III 600V |
| Output signal (AC current) |
From 0 to 200mA AC at nominal input current |
| Output signal (AC voltage) |
From 0 to 200mV AC at nominal input current |
| Frequency range |
40Hz-2000Hz |
| Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
| Temperature range |
-20°C to +55°C |
| Output |
2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors |
600 V |
| Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation |
Clamp type |
| Output mode |
Lead output(2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) |
56 x 168 x 27 |
| Weight (g) |
350 |
| Holding wire diameter (mm) |
φ20 |
| Max. jaw opening (mm) |
20 |
| Color |
Gray |
| Material |
PC+ABS+Polycarbonate, UL94 V0 |
