11KV 33KV RESIN CAST HIGH VOLTAGE SPLIT CORE CT CURRENT TRANSFORMER

China 11KV 33KV RESIN CAST HIGH VOLTAGE SPLIT CORE CT CURRENT TRANSFORMER supplier
11KV 33KV RESIN CAST HIGH VOLTAGE SPLIT CORE CT CURRENT TRANSFORMER supplier 11KV 33KV RESIN CAST HIGH VOLTAGE SPLIT CORE CT CURRENT TRANSFORMER supplier 11KV 33KV RESIN CAST HIGH VOLTAGE SPLIT CORE CT CURRENT TRANSFORMER supplier 11KV 33KV RESIN CAST HIGH VOLTAGE SPLIT CORE CT CURRENT TRANSFORMER supplier

Large Image :  11KV 33KV RESIN CAST HIGH VOLTAGE SPLIT CORE CT CURRENT TRANSFORMER

Product Details:

Place of Origin: BEIJING CHINA
Brand Name: GFUVE
Certification: ISO9001, CE, UL
Model Number: LZCK322-10

Payment & Shipping Terms:

Minimum Order Quantity: 3PCS
Price: USD66
Packaging Details: STANDATD EXPORT BOX
Delivery Time: 7DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000PCS/MONTH
Contact Now
Detailed Product Description
CLASS: 0.5 BURDEN: 5VA
RATIO: 400/5A MATERIAL: RESIN CAST
COLOR: RED WEIGHT: 1.6KG
TYPE: SPLIT CORE CT

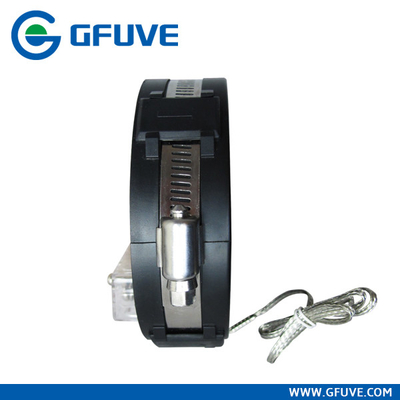

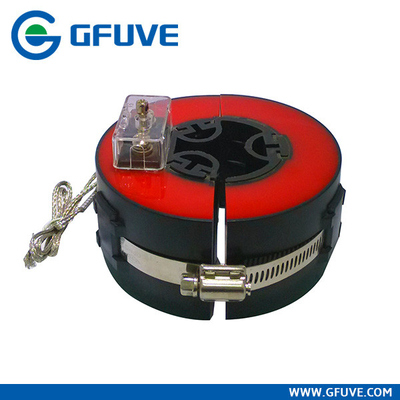

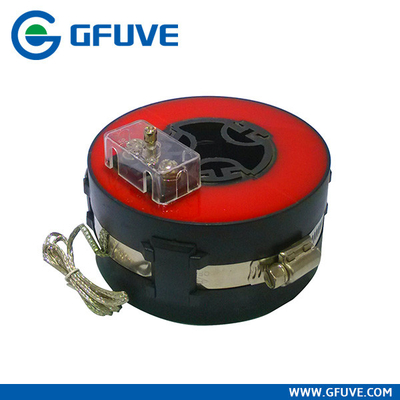

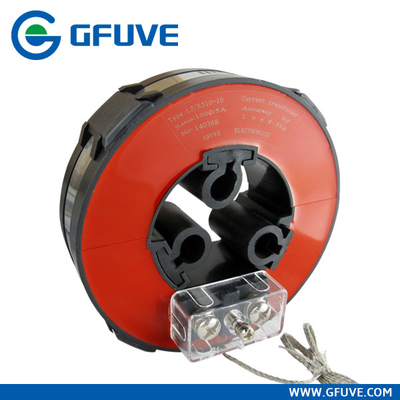

LZCK322-10 11KV 33KV HIGH VOLTAGE RESIN CAST SPLIT CORE CT CURRENT TRANSFORMER

11KV 33KV RESIN CAST HIGH VOLTAGE SPLIT CORE CT CURRENT TRANSFORMER11KV 33KV RESIN CAST HIGH VOLTAGE SPLIT CORE CT CURRENT TRANSFORMER11KV 33KV RESIN CAST HIGH VOLTAGE SPLIT CORE CT CURRENT TRANSFORMER

LZCK series split core current transformer is suitable forcurrent measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system.It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes.The transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.

11KV 33KV RESIN CAST HIGH VOLTAGE SPLIT CORE CT CURRENT TRANSFORMER

P1, P2 is primary polarity terminal, S1, S2 is secondary polarity terminal.
P2, S2 is homonymous terminals (subtractive polarity).

PARAMETERS

Technical parameters　
Standards IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006
Rated primary current 30-600A
Rated load ≤10VA
Rated frequency 50Hz or 60Hz
Rated secondary current 5A or 1A
Rated short-time thermal current 40kA, 1S
Rated continuous thermal current 120%I1n
Secondary winding power-frequency voltage 3kV, 1min
Instrument security factor FS≤10
Mechanical parameters　
Dimensions (W×D×H) (mm) φ50xφ110x52
Weight (kg) 1.6
Operating conditions　
Operating temperature -35°C to +55°C
Daily average temp <+40°C
Altitude <3500 meters
Condition No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

TECHNICAL DATA

Type LZCK322-10 LZCK322-10
Purpose Measuring current transformer Protection current transformer
Ratio Accuracy class and rated load(VA) Accuracy class and rated load(VA)
I1/I2 0.5 1 3 10P15 10P10 10P5
30/1 　 1 1.5 　 　 　
50/1 　 1 2 　 　 1.25
75/1 　 1.5 2.5 　 1 2
100/1 2 2.5 3 　 1.5 2.5
200/1 2.5 　 　 1.25 2.5 　
300/1 3.75 　 　 1.25 2.5 　
400/1 7.5 　 　 1.25 2.5 　
500/1 10 　 　 1.25 3 　
600/1 10 　 　 1.5 3 　
50/5 　 　 2.5 　 　 　
75/5 　 　 2.5 　 　 　
100/5 2.5 　 　 　 　 　
200/5 3.75 　 　 　 　 　
300/5 5 　 　 　 　 　
400/5 7.5 　 　 　 2.5 　
500/5 7.5 　 　 　 2.5 　
600/5 10 　 　 　 3.75 　

SELECTION GUIDE

Model Primary rated current Rated load Aperture (mm) Description (mm) Weight (kg) Material Water-proof
LZCK-55 100-1500A ≤10VA φ55 180×138×52 2 PC IP65
LMCK185-10 300-3000A ≤25VA φ185 350×283×55 4.5 PC IP65
LZCK310-10 300-600A ≤10VA φ50 φ50 x φ110 x 32 1 Resin silicon case (option)
LZCK322-10 30-600A ≤10VA φ50 φ50 x φ110 x 52 1.6 Resin silicon case (option)
LZCK350-10 20-600A ≤25VA φ50 φ50 x φ110 x 105 3.1 Resin silicon case (option)
LZCG530-10 30-600A ≤20VA φ45 φ45 x φ120 x 65 2.1 Resin silicon case (option)

http://gfuve.com/split-core-current-transformer/33kv-high-voltage-split-core-current-transformer.html
