500A GOOD LINARITY SPLIT CORE CLAMP ON CURRENT SENSOR

China 500A GOOD LINARITY SPLIT CORE CLAMP ON CURRENT SENSOR supplier
500A GOOD LINARITY SPLIT CORE CLAMP ON CURRENT SENSOR supplier 500A GOOD LINARITY SPLIT CORE CLAMP ON CURRENT SENSOR supplier 500A GOOD LINARITY SPLIT CORE CLAMP ON CURRENT SENSOR supplier 500A GOOD LINARITY SPLIT CORE CLAMP ON CURRENT SENSOR supplier 500A GOOD LINARITY SPLIT CORE CLAMP ON CURRENT SENSOR supplier

Large Image :  500A GOOD LINARITY SPLIT CORE CLAMP ON CURRENT SENSOR

Product Details:

Place of Origin: Beijing, China
Brand Name: GFUVE
Certification: ISO 9001 : 2008; CE
Model Number: Q40

Payment & Shipping Terms:

Minimum Order Quantity: 3pcs
Price: USD1---250
Packaging Details: Standard export box
Delivery Time: 7days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Usage: Magnetic Sensor Theory: Current Sensor
Output: Analog Sensor

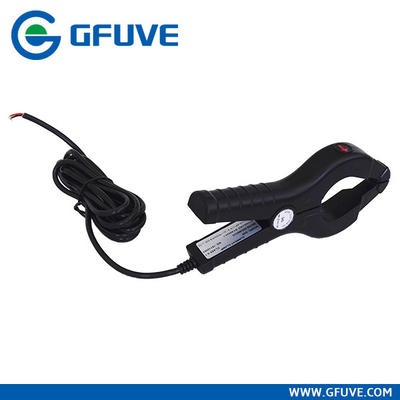

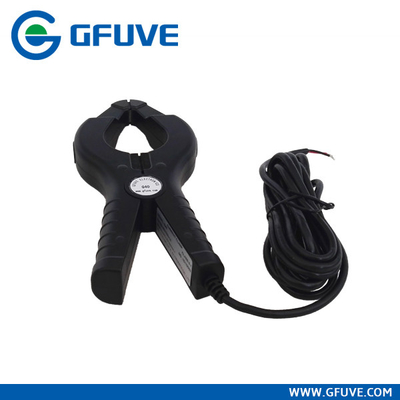

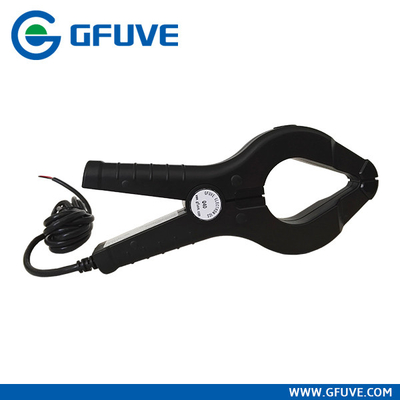

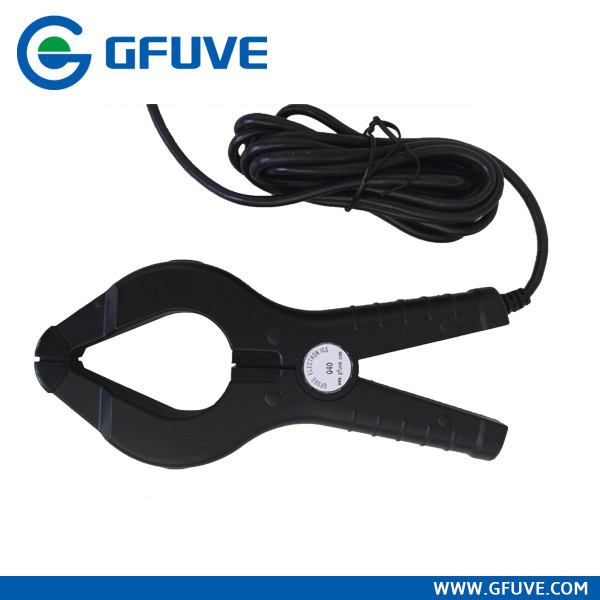

Q40 500A GOOD LINARITY SPLIT CORE CLAMP ON CURRENT SENSOR

The Q40 Series AC Current Probes are high performance models, and use a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. The Q40 Series is an excellent probe to be used in power and low level current measurement applications.

APPLICATIONS

  • Power quality measuring
  • Large industrial loads
  • Measuring around cable bundles
  • Power load monitoring
  • Waveform analysis
  • Energy meter calibrator


FEATURES

  • Measurement range of 1mA to 600A AC
  • Large jaw opening designed
  • Improved ergonomic design and easy operation
  • High content nickel metal core
  • Conforms to EN 61010, 600V CAT III
  • Low phase shift for power measurement
  • Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
  • UL, CE mark



PARAMETERS

Electrical parameters
Ratio 1000: 1 or 2000:1 (customized)
Accuracy class 0.1%, 0.2%, 0.5%
Primary current 0 - 500A AC
Secondary current 0 - 1A AC or 0-5V AC (customized)
Max. Cont. Input current 600A
Over voltage category CAT III 600V
Output signal (AC current) 250mA,500mA,1A,5A AC at nominal input current
Output signal (AC voltage) 250mV, 500mV, 1V, 5V AC at nominal input current
Frequency range 40Hz-2000Hz
Dielectric strength 3KV 50Hz/60Hz at 1 minute
Temperature range -20°C to +55°C
Output 2.5 meter cable with D01 connector
Max. voltage not insulated conductors 600 V
Standard EN 61010-1, EN 61010-2-032, IEC60044-1
Installation Clamp type
Output mode Lead output (2.5m)

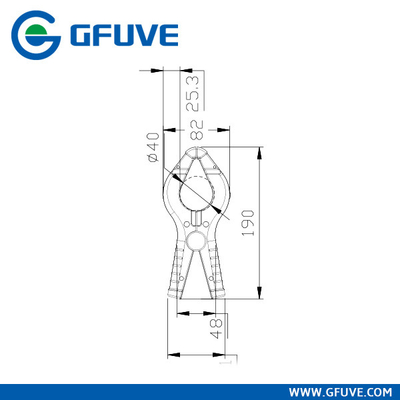

Mechanical parameters
Dimensions (L x W x H)(mm) 82 x 290 x 25.3
Weight (g) 500
Holding wire diameter (mm) φ40
Max. jaw opening (mm) 40
Color Black
Material PC+ABS+Polycarbonate, UL94 V0
