FUD-3I-3U three phase AC current voltage transducer
-
-
Large Image :

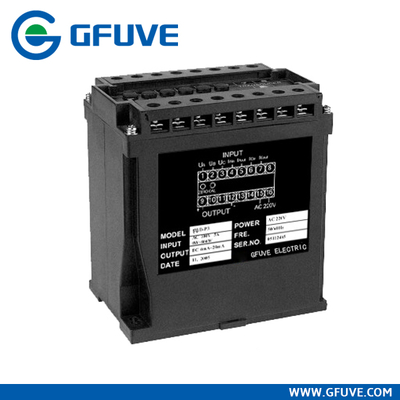

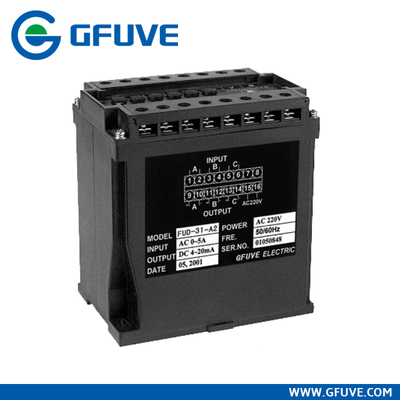

FUD-3I-3U three phase AC current voltage transducer
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
ISO9001 |
| Model Number: |
FUD-3I-3U |
Payment & Shipping Terms:
| Price: |
negotiation |
| Packaging Details: |
EXPORT CARTON |
| Delivery Time: |
with in 10 days |
| Payment Terms: |
T/T |
| Supply Ability: |
2000pcs/month |
| Minimum Order Quantity: |
3PCS |
|
Detailed Product Description
| Highlight: |
power transducer, three phase power transducer, three phase AC current voltage transducer |
Introduction:
Change the measured AC current/voltage to the DC current/voltage output according to the linear
scale.Excellent temperature characteristic and good working stability.
Configuration compactness and briefness
Features:
1. Three phase current / voltage transducer
2. AC current / voltage transducer
3. Accuracy class can reach 0.2%
4. AC input range can be customized
5. DC output range can be customized
Model Description:
| FUD-Type-Input-Power Supply-Output |
| Type | 3I: Three phase AC current transducer
3U: Three phase AC voltage transducer |
| AC input | A1: 0-1A, A2: 0-5A, A3: 0-10A.
V0: 0-70V, V1: 0-120V, V2: 0-250V,
V3: 0-300V, V4: 0-450V, V5: 0-500V. |
| Power supply | P1: AC110V±10%, P2: AC220V±15%, P3: AC110V-330V. |
| DC output | O1: 0-5V, O2: 1-5V, O3: 0-20mA, O4: 4-20mA, O5: RS485. |
| Example 1: FUD-3I-A2-P2-O4 |
| FUD series three phase AC current transducer | Input: AC 0-5A |
| Power supply: AC220V±15% |
| Output: DC4-20mA |
| Example 2: FUD-3U-V2-P2-O4 | | | | | |
| FUD series three phase AC voltage transducer | Input: AC 0-250V |
| Power supply: AC220V±15% |
| Output: DC4-20mA |
| Please check the type, input range, output range and power supply when your order the product. |
Technical Indix:
| Technical Index | |
| Standard | GB/T 13850-1998, IEC688:1992 |
| Accuracy | 0.2%, 0.5% |
| Consumption | ≤3VA |
| Accuracy drift | Annual variation < 0.2% |
| Insulation voltage | AC 2kV/min.1mA (Between input- output / power) |
| Insulation resistance | ≥20MΩ (DC500V) |
| Surge voltage | 5KV (Peak value), 1.2/50μs |
| Response time | ≤350ms |
| Input range | AC 0-10A ,AC 0-500V(Option), 50/60Hz |
| Absorbed power | <0.5VA/450V, <0.2VA/100V, <0.1VA/5A |
| Overload | Current: 2 times continuous, 30 times /1s;
Voltage: 2 times continuous |
| Load resistance | Current output: RL≤550Ω |
| Voltage output: RL≥2kΩ |
| Working environment | Temperature: -10 to +50℃ |
| RH: 20-90%, without condensation |
| Storage conditions | Temperature: -40 to +70℃ |
| RH: 20-95%, without condensation |
| Installation | 35mm DIN sliding-way or M4 screws |
| Dimension | 110mm x 75mm x 120mm |
