0.5s RS485 DIGITAL PANEL THREE PHASE POWER METER DATA LOGGER WITH Ethernet port

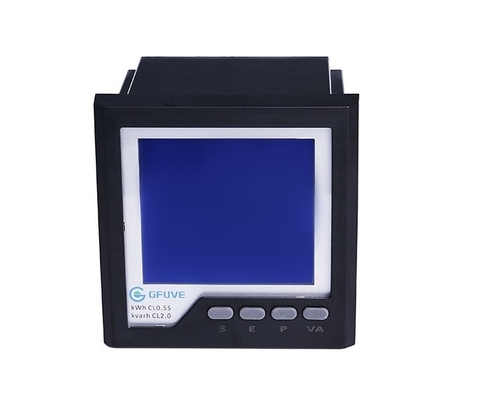

Large Image : 0.5s RS485 DIGITAL PANEL THREE PHASE POWER METER DATA LOGGER WITH Ethernet port

Product Details:

Place of Origin:	BEIJING CHINA
Brand Name:	GFUVE
Certification:	CE, CNAS, ISO9001:2015
Model Number:	FU2200A 0.5S 6A480V

Payment & Shipping Terms:

Minimum Order Quantity:	3PC
Packaging Details:	STANDARD EXPORT BOX
Delivery Time:	1DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20000PCS/MONTH

Contact Now

Detailed Product Description

NAME:	DIGITAL THREE PHASE POWER METER	ACCURACY:	0.5S
RANGE:	0-6, 0-480V P-N	FREQUENCY:	40-70HZ
HARMONICS:	2-63ND	APPLICATION:	ENERGY METER AND POWER METER DATA LOGGER
DIMENSION:	97.897.8, 9090	DISPLAY:	FIVE STAGE
CT RATIO:	1-10000	PT RATIO PROGARMMABLE:	1-10000

FU2200A 0.5s RS485 DIGITAL PANEL THREE PHASE POWER METER DATA LOGGER WITH Ethernet port

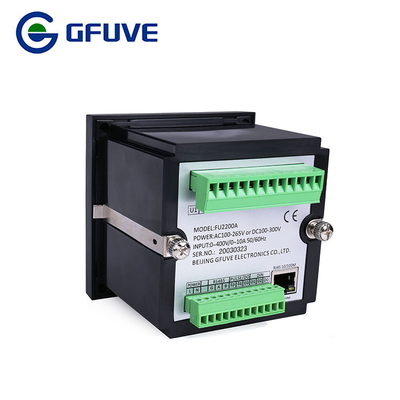

FU2200A RJ45 digital power meter has the PC software and the data logger function, which can set by end users from 1min to 60min intervals to record. You can read the data through a PC. Also, you can share the data in the Internet LAN. By the way, it can measure the harmonics. Back of power meter FU2200A with Ethernet port as photo shows here. Also two color of the shell can be choose, white or black.

FU2200A 0-480V digital power meter with PC software is a three-phase multifunction power and energy meter manufactured by GFUVE. It provides excellent value for monitoring power and energy management systems. It may be used as data gathering devices for intelligent power distribution or plant automation systems. All monitored data is available via a standard digital RS485 communication port, which is based on the Modbus RTU protocol.

Three Phase Energy Meter which is used for measuring the power of three phase supply is known as the three phase energy meter. The three phase meter is constructed by connecting the two single phase meter through the shaft. The total energy is the sum of the reading of both the elements.3-phase power meter, also called a three-phase power meter, can measure a variety of electrical parameters, from current and voltage to resistance, continuity and beyond. A 3-phase power meter is used by electrical contractors to assess everything from live wires and circuit breakers to electrical panels and power transformers.

FEATURES

High-speed RS485, Ethernet port (option)
Measure individual harmonics from 2^nd to 63^st (option)
TOU, 4 Tariffs, 6 Seasons, 6 Schedules
Three years warranty
With PC management software; web browse data
True-RMS measuring parameters
ANSI and IEC 0.2 accuracy class
Power quality analysis
4 quadrant energy
2MB onboard memory, can be extended to 16M
Data logging

APPLICATIONS

Metering of distribution feeders, transformers, generators, capacitor banks and motors
Medium and low voltage systems
Commercial, industrial, utility
Power quality analysis
Data logging
Monitoring system

PARAMETERS

Electrical parameters
Power Supply (AC/DC)	AC85-400V / DC85-330V Power consumption: <4VA
Measurement Parameters	Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power(W); Reactive Power(Q); Apparent Power(S), 2^nd to 63^th harmonics(option)
Harmonics	Total harmonics ratio of phase-voltage Total harmonics ratio of current 2^nd to 63^st harmonics ratio of phase-voltage 2^nd to 63^st harmonics ratio of current
Maximum Value & Minimum Value	Voltage, current, frequency, active power, reactive power, apparent power,demandP,demandQ, demandS.
Computation	Forward active power energy Reverse active power energy Forward active power energy Reverse reactive power energy
Measuring Range	0-480V, 0-6A, 40-70Hz, -1 ~ 0 ~ 1
Measuring Accuracy	Voltage: 0.5%RD±0.05%FS Current: 0.5%RD±0.05%FS Active Power: 0.5%RD±0.05%FS Reactive Power: 1.5%RD +0.05%FS Apparent power: 0.5%RD +0.1%FS Power Factor: 0.5%RD Frequency: 0.05%RD Active Energy: 0.5%
Maximum Demand	Ia, Ib, Ic, ΣPtotal, ΣQtotal, ΣStotal, 15 minutes
Display	Blue back-lit LCD Display 5 display figures 4 operation keys
Communication	Support RS-485 interface port, 32 (128) Networking ModBus-TCP/IP SNMP communication protocol Ethernet 10/100M port (RJ45)
Memory	2M onboard memory,can be extended to 16M. Data looger interval can set by end users from 1min to 60min.The default is 15min. You can read the data through a PC, also you can select the data to diaplay and store from software.
Programmable	Measuring system: 3P4W/3P3W etc Transformation Ratio: PT 1-10000; CT 1-10000
Energy Pulse	Provides active & reactive energy pulse output Pulse parameters can be choosed Range: 0.1-10000kWh/kvarh Dry contact output (1Ax100V)
Connection Mode	3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P3W, 1P2W
Baud	1200-57600, Standard 38400
Mechanical parameters
Dimensions (L x W x H) (mm)	96x96x12.8
Mounting	Panel mounting Trepanning: 92x92mm The thickness of installation: 51mm
Environmental conditions
Temperature	-5 to +50 °C
Humidity	20%-95%RH, without condensation
Warranty	Three years warranty
