Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe

China Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe supplier
Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe supplier Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe supplier Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe supplier Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe supplier Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe supplier

Large Image :  Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe

Product Details:

Place of Origin: CHINA
Brand Name: GFUVE
Certification: EN 61010-1, EN 61010-2-032, IEC60044-1
Model Number: 229x364x 44

Payment & Shipping Terms:

Minimum Order Quantity: 3 PIECES
Price: USD 10-50 PIECES
Packaging Details: ESTANDAR EXPORT CARTON
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500000 PIECES PER MES
Contact Now
Detailed Product Description
Ratio: 1000: 1 Or 5000:1 (customized) Accuracy Class: 0.2%, 0.5%, 1%
Primary Current: 0 - 5000A AC Secondary Current: 0 - 5A AC (customized)
Max. Cont. Input Current: 6000A Key Word: 0 10v Current Sensor
Over Voltage Category: CAT III 600 V Output Signal (AC Current): 500mA,1A,5A AC At Nominal Input Current
Output Signal (AC Voltage): 333mV,500mV,1V,5V AC At Nominal Input Current Frequency Range: 40Hz-2000Hz
Installation: Clamp Type Key Words: 0 50 Amp Split Core Ac Current Transformer Sensor Price
Weight (g): 1700 Holding Wire Diameter (mm): φ150
Jaw Color: White

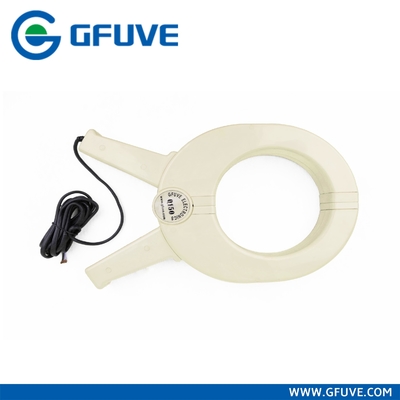

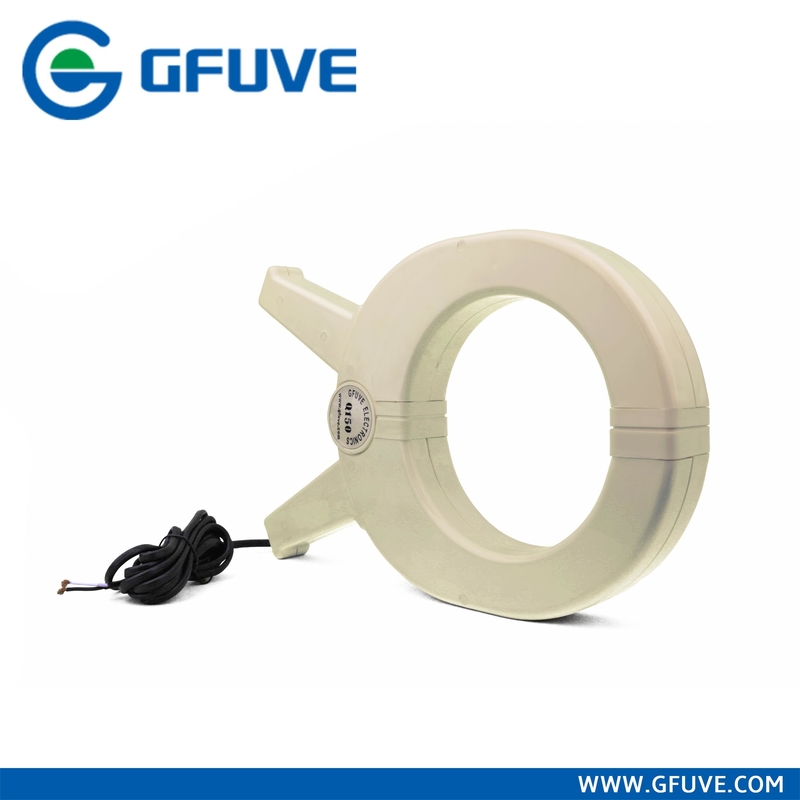

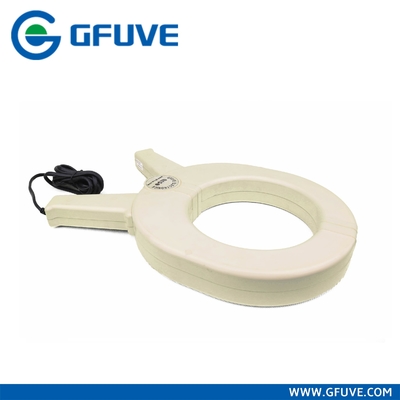

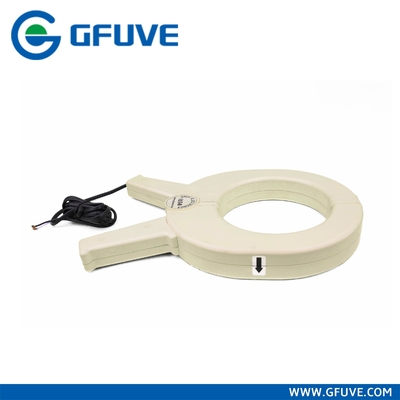

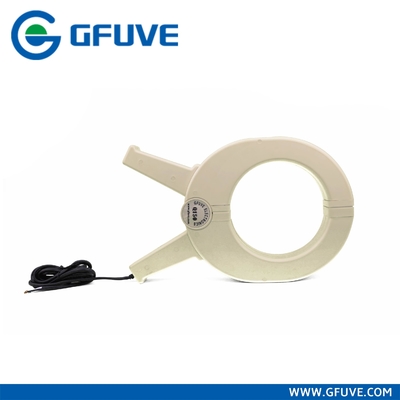

Q150 Bus Bar And Cable Measuring Square Jaw Opening Current Probe


The model Q150 current probe can be used in large current situation and cooperate to cable fault tester and cable identification device, used for cable test work.
Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe



Nuestraempresa GFUVE ELECTRONICS es un fabricante líder de Resina epoxica 5a/ct transformador de corriente al aire libre AC en China. Ya estamos en este campo por 12 años, con la buena calidad y el precioes bastante bien. Todos los tipos de diferentes especificaciones y parámetrosde ellos se pueden hacer de acuerdo a sus necesidades. Nuestros diseños demarca tienen la calidad excelente, y expresamente, los precios son muycompetitivos.



Output mode Lead output (2.5m)
Output 2.5 meter cable with D01 connector
Material PC+ABS+Polycarbonate, UL94 V0
Dielectric strength 3KV 50Hz/60Hz at 1 minute
Max. voltage not insulated conductors 600 V

Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe



Applications Features

1. Electric energy meter calibrator (on site)

2. Double clamp type ground resistance tester

3. Double clamp type phase volt-ampere meter

4. Digital multi-meter

5. Multi-function energy meter

6. Oscilloscope

7. Power quality analyzer

8. Matched instruments

9. Calibration instrument on site


1. Measurement range of 1mA to 3000A AC

2. Small, compact size; holding wire diameter 150mm

3. Improved ergonomic design and easy operation

4. Low phase shift for power measurement

5. With load capacity ≤4Ω; When 1A output, it is 0.1Ω; When 5A output, it is 2.5VA.

6. Output model: Lead output(2.5m)




Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe

GFUVE es un fabricante líder de productos de prueba de medidores de energía y grabador de amperímetro de alta tensión en China. Es profesional en el sistema de prueba del metro de la energía, el probador portable del metro de la energía y el accesorio relacionado. El producto del registrador amperímetro de alto voltaje se desarrolla muy rápidamente en el mercado. Nuestra compañía ha alcanzado la certificación a ISO9001. Los productos se venden a más de 30 provincias en China y se exportan a ultramar, incluyendo América del Sur, Oriente Medio, Sudeste de Asia y África.

Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe

Hemos estado contribuyendo nosotros mismos a desarrollar los productos duraderos y estables para el uso del sistema de energía. Póngase en contacto con nosotros ahora para más relación de negocios. Estamos aquí para ofrecerle el mejor servicio.



MAS INFORMACION POR FAVOR CLICK NUESTRA WEBSITE: www.gfuve.com.



Jaw white Bus Bar And Cable Measuring Square Jaw Opening Current Probe

Nuestros servicios



SERVICIO RAPIDO

Atencion rapida y eficiente todos los dias, incluso festivos. Tambien disponemos de servicio de urgencias para aquellos casos que no puedan esperar mas de media hora en ser solucionados. Atendemos todas las zonas de la pais en todo el mundo.
