| GF2011 GFUVE Global wholesale WIRELESS HIGH VOLTAGE HV current sensor |

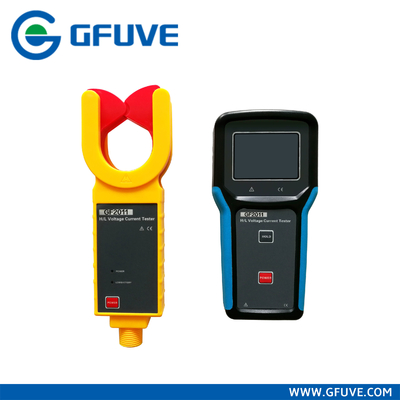

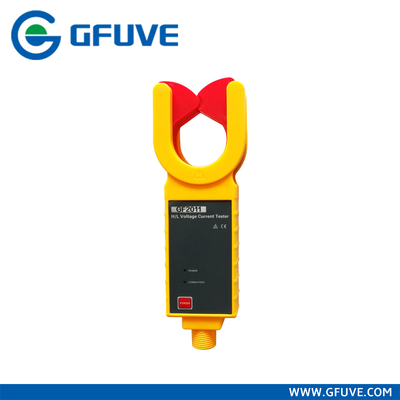

GF2011 High Voltage Ammeter specially designed and manufactured for High voltage AC current measurement, low voltage AC current, current leakage measurement, online AC current measurement. It consists of special high voltage detector, wireless receiver and high voltage insulation rod. Apply to power plant, substation, industrial and mining enterprise, inspection station, electrician maintenance
department for current sensing and field working.
Features
1. Adopt latest CT technology and integrated mask digital technology
2. Wireless transmission distance 30m, can transmit through building barriers
3. Integrated design ensures uninterrupted year-round high precision, high reliability and high stability test
4. Have peak value maintaining, data maintaining, data memory function
5. Easy to install and remove with power on
6. Insulation rod has the characteristics of moisture resistance, high temperature resistance, impact resistance, bending
resistance, high insulation and scalability
7. Can accurately measure 0.00mA-1200A current or leakage current
8. Can test high and low voltage changing ratio, respectively test the first loop and secondary loop high and low voltage
current, and then obtain the voltage change through manually calculation
Parameters
| Electrical parameters |
| Power supply |
Ammeter: DC6V Alkaline Dry Battery (1.5V AAA X 4),
Receiver: DC7.5V Alkaline Dry Battery (1.5V AA X 5),
working 10 hours |
| Test mode |
Clamp CT, integral approach |
| Transmission mode |
Wireless transmission, the maximum distance of straight line transmission is about 30m |
| Display mode |
4 bit LCD display, with backlight function |
| Sampling rate |
2 times/second |
| Measurement scope |
0.00mA-1200A (50/60Hz automatic) |
| Resolution |
0.01mA |
| Shift |
0.00mA-1200A automatic shift |
| Accuracy (23°C±5°C, below 70%RH) |
0.000mA-120.00A: ±1%±3dgt
120.00A-1200.0A: ±1%±5dgt |
| Line voltage |
Below 69KV line test (with 5 insulation rods operation) |
| Data memory |
99 sets |
| Automatic shutdown |
15 minutes after boot |
| Battery voltage |
<4.8V alarm active |
| Insulation strength |
AC 100kV/rms (between the 5th insulation rod and high voltage Ammeter core) |
| Structure |
Anti-drip type II |
| Safety provisions |
IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT III (600V), IEC61326(EMC standard) |
| Mechanical parameters |
| LCD dimensions (mm) |
47×28.5 |
| Meter dimension (LxWxH) (mm) |
87×262×37 |
| Meter weight |
2.5kg (including insulation rod and battery, tester 335g) |
| Clamp dimension (mm) |
Ф50 |
| Insulation rod dimension |
φ50mm, 1m/piece (5m) |
| Environmental conditions |
| Working temperature |
-25°C to 40°C |
| Working humidity |
Below 80%Rh |
| Storage temperature |
-10°C to 60°C |
| Storage humidity |
Below 70%Rh |

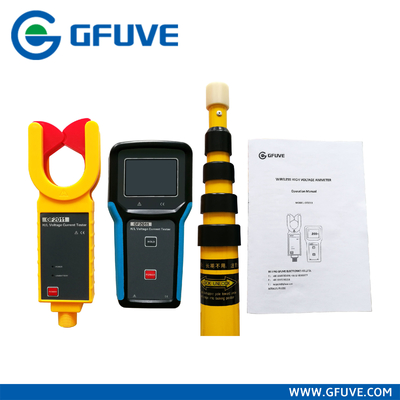

| Accessories |
| Ammeter |
1 pc |
| Receiver |
1 pc |
| Ammeter box |
1 pc |
| Telescopic insulation rod (5m) |
1 pc |
| Battery |
Rechargeable Alkaline Dry Battery(AA X 5+AAA X 4) |
| Model |
Description |
| GF2011 |
Wireless |
| GF2011B |
Base Display |
