GF2011 WIRELESS HIGH VOLTAGE AMMETER designed and manufactured for High voltage AC current measurement
Detailed Product Description
| GF2011: |
Wireless Medium Voltage Clamp Current Meter |
Test Mode: |
Clamp CT, Integral Approach |
| Display Mode: |
4 Bit LCD Display, With Backlight Function |
Line Voltage: |
Below 69KV Line Test |
| Data Memory: |
99 Sets |
Automatic Shutdown: |
15 Minutes After Boot |
| Battery Voltage: |
<4.8V Alarm Active |
Structure: |
Anti-drip Type II |
| LCD Dimensions (mm): |
47×28.5 |
Meter Dimension (LxWxH) (mm): |
87×262×37 |
| Meter Weight: |
2.5kg |
COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
PRODUCT INTRODUCTION

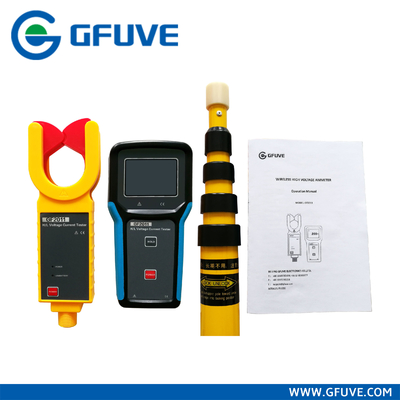

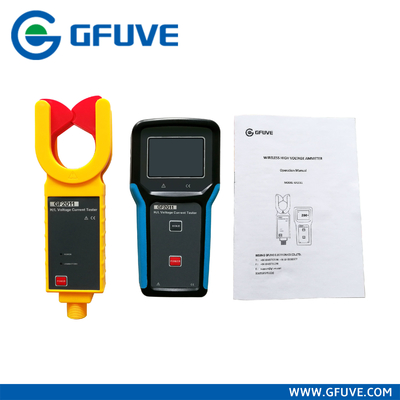

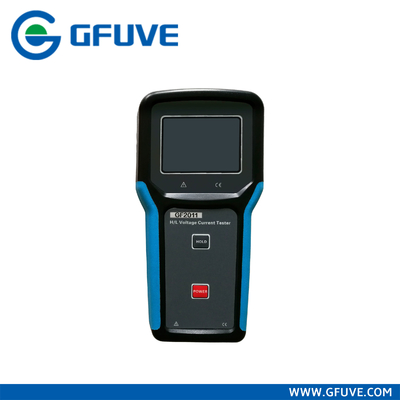

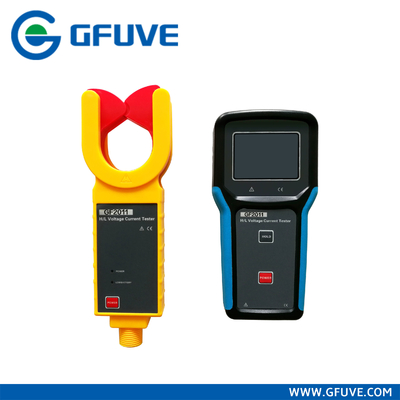

GF2011 Portable wireless high voltage primary ammeter

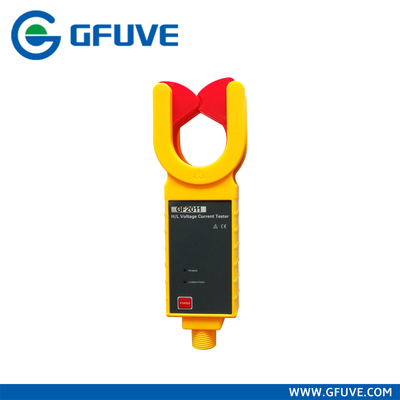

GF2011 Portable High Voltage Ammeter specially designed and manufactured for High voltage AC current measurement, low voltage AC current, current leakage measurement, online AC current measurement. It consists of special high voltage detector, wireless receiver and high voltage insulation rod.
Apply to power plant, substation, industrial and mining enterprise, inspection station, electrician maintenance department for current sensing and field working.
Features
- Adopt latest CT technology and integrated mask digital technology
- Wireless transmission distance 30m, can transmit through building barriers
- Integrated design ensures uninterrupted year-round high precision, high reliability and high stability test.
- Have peak value maintaining, data maintaining, data memory function
- Easy to install and remove with power on

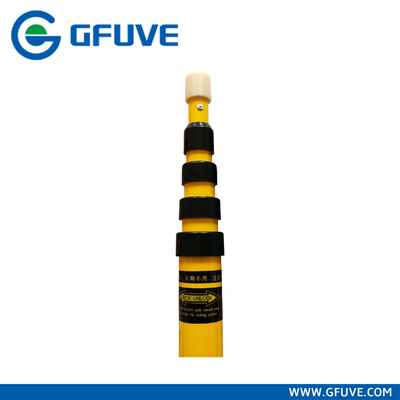

- Insulation rod has the characteristics of moisture resistance, high temperature resistance, impact resistance, bending resistance, high insulation and scalability.
- Can accurately measure 0.00mA-1200A current or leakage current
- Can test high and low voltage changing ratio, respectively test the first loop and secondary loop high and low voltage current, and then obtain the voltage change through manually calculation.
Parameters
| Electrical parameters |
| Power supply |
Ammeter: DC6V Alkaline Dry Battery (1.5V AAA X 4),
Receiver: DC7.5V Alkaline Dry Battery (1.5V AA X 5),
working 10 hours |
| Test mode |
Clamp CT, integral approach |
| Transmission mode |
Wireless transmission, the maximum distance of straight line transmission is about 30m |
| Display mode |
4 bit LCD display, with backlight function |
| Sampling rate |
2 times/second |
| Measurement scope |
0.00mA-1200A (50/60Hz automatic) |
| Resolution |
0.01mA |
| Shift |
0.00mA-1200A automatic shift |
| Accuracy (23°C±5°C, below 70%RH) |
0.000mA-120.00A: ±1%±3dgt
120.00A-1200.0A: ±1%±5dgt |
| Line voltage |
Below 69KV line test (with 5 insulation rods operation) |
| Data memory |
99 sets |
| Automatic shutdown |
15 minutes after boot |
| Battery voltage |
<4.8V alarm active |
| Insulation strength |
AC 100kV/rms (between the 5th insulation rod and high voltage Ammeter core) |
| Structure |
Anti-drip type II |
| Safety provisions |
IEC1010-1, IEC1010-2-032, Pollution Class 2, CAT III (600V), IEC61326(EMC standard) |
| Mechanical parameters |
| LCD dimensions (mm) |
47×28.5 |
| Meter dimension (LxWxH) (mm) |
87×262×37 |
| Meter weight |
2.5kg (including insulation rod and battery, tester 335g) |
| Clamp dimension (mm) |
Ф50 |
| Insulation rod dimension |
φ50mm, 1m/piece (5m) |
| Environmental conditions |
| Working temperature |
-25°C to 40°C |
| Working humidity |
Below 80%Rh |
| Storage temperature |
-10°C to 60°C |
| Storage humidity |
Below 70%Rh |
| Accessories |
| Ammeter |
1 pc |
| Receiver |
1 pc |
| Ammeter box |
1 pc |
| Telescopic insulation rod (5m) |
1 pc |
| Battery |
Rechargeable Alkaline Dry Battery(AA X 5+AAA X 4) |
| Model |
Description |
| GF2011 |
Wireless |
| GF2011B |
Base Display |
Download Catalogue
