GF2013: | Wireless Medium Voltage Clamp Current Meter | Resolution: | 0.01mA |
---|---|---|---|
Shift: | 0.00mA-1200A Automatic Shift | Line Voltage: | Below 69KV Line Test |
Data Memory: | 99 Sets | Automatic Shutdown: | 15 Minutes After Boot |
Battery Voltage: | <4.8V Alarm Active | Structure: | Anti-drip Type II |
LCD Dimensions (mm): | 47×28.5 | Meter Dimension (LxWxH) (mm): | 87×262×37 |
Meter Weight: | 2.5kg |
COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
PRODUCT INTRODUCTION

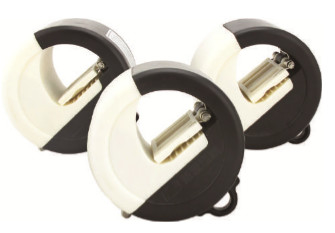

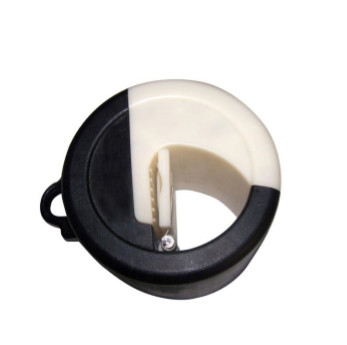

Wireless medium voltage ammeter recorder is installed on 6KV-35KV power line, this phase load current measuring calculation, and the measured value through the 433M wireless communication transmission to intelligent terminal to analyzer and use. GF2013 adopts Rogowski Coil measurement technology with low power consumption and power on installation to make it use at ease.
Basic parameters | |
---|---|

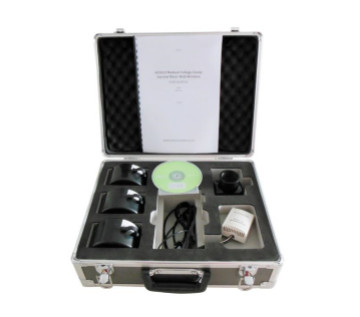

Type | Recording ammeter kit 3 wireless current sensors (GF2013A, GF2013B, GF2013C) 433M wireless data reader(GF2013R) PC-Linksoftware software(GF2013S) Carrying case |
Data recording interval | 5min, 10min,15min, 30min; |
Communication distance(wireless) | 100m |
Communication | 433M, 868M or 915M (option) |
Installation | Installation with electricity; remove with electricity |
Battery | 3.6 volt lithium battery,9000mAh |
Software requirements | PC-LinkSoftware & Microsoft Excel |
Processor | 100 MHz or Higher ( 200 MHz or higher recommended) |
RAM | 32 MB, 64M Recommended |
Drive Space | 15 MB to load software, 10 MB of operating space |
Electrical parameters | |
Amps accuracy | ±1% of reading plus 2 counts |
Frequency | 50/60 Hz |
Range of operation | |
Voltage | 69kV, 35kV, 20KV, 10kV, 6kV |
Current | 1-100A, 1-300A |
Sensor opening | up to 3.3 cm |
Resolution | |
1-99.9A | 0.1A |
100-300A | 1A |
Mechanical parameters | |
Dimensions (W×D×H) (mm) | 500x600x175 |
Weight (kg) | 0.42 |
Environmental conditions | |
Operating temp | -40°C to 60°C |
Use of position | Outdoor or indoor |
