Ratio: | 1000: 1 Or 2000:1 (customized) | Accuracy Class: | 0.1%, 0.2%, 0.5% |
---|---|---|---|
Primary Current: | 0 - 500A AC | Secondary Current: | 0 - 1A AC Or 0-5V AC (customized) |
Max. Cont. Input Current: | 600A | Max. Voltage Not Insulated Conductors: | 600 V |
Over Voltage Category: | CAT III 600V | Output Signal (AC Current): | 250mA,500mA,1A,5A AC At Nominal Input Current |
Output Signal (AC Voltage): | 250mV, 500mV, 1V, 5V AC At Nominal Input Current | Frequency Range: | 40Hz-2000Hz |

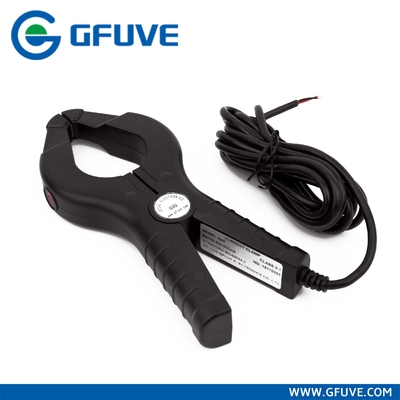

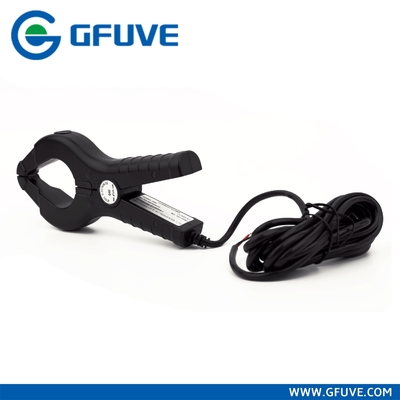

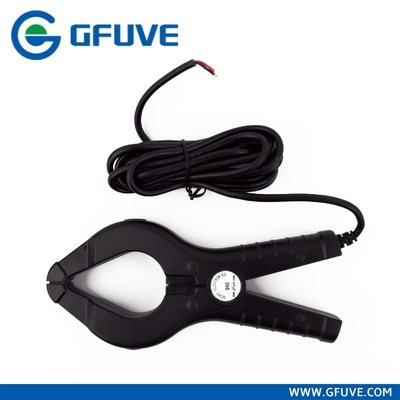

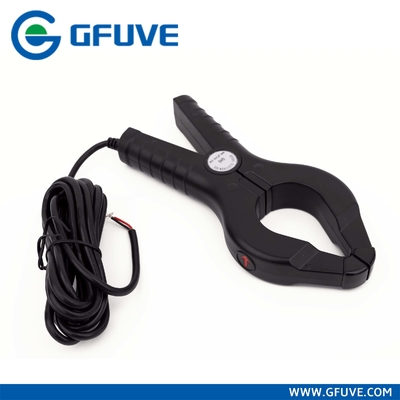

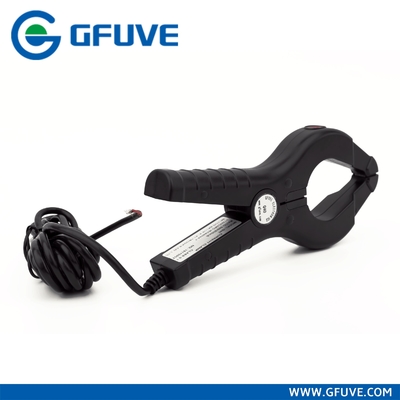

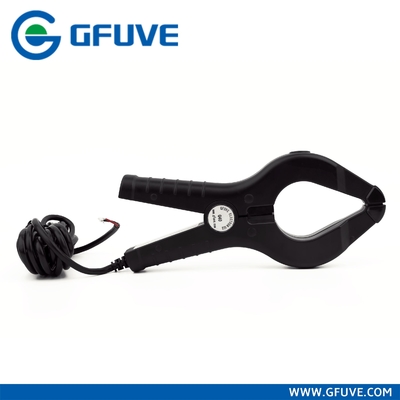

As a kind of Selected High Performance Clamp On Current Sensor, Q40 has Good Linarity. The Q40 Series AC Current Probes are high performance models, and use a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. The Q40 Series is an excellent probe to be used in power and low level current measurement applications.detection.
Applications
1. Power quality measuring
2. Large industrial loads
3. Measuring around cable bundles
4. Power load monitoring
5. Waveform analysis
6. Energy meter calibrator
Features
1. Measurement range of 1mA to 600A AC
2. Large jaw opening designed
3. Improved ergonomic design and easy operation
4. High content nickel metal core
5. Conforms to EN 61010, 600V CAT III
6. Low phase shift for power measurement
7. Designed for DMMs, recorders, loggers, oscilloscopes, power and
harmonic meters
8. UL, CE mark
Electrical parameters | |||||||
---|---|---|---|---|---|---|---|
Ratio | 1000: 1 or 2000:1 (customized) | ||||||
Accuracy class | 0.1%, 0.2%, 0.5% | ||||||
Primary current | 0 - 500A AC | ||||||
Secondary current | 0 - 1A AC or 0-5V AC (customized) | ||||||
Max. Cont. Input current | 600A | ||||||
Over voltage category | CAT III 600V | ||||||
Output signal (AC current) | 250mA,500mA,1A,5A AC at nominal input current | ||||||
Output signal (AC voltage) | 250mV, 500mV, 1V, 5V AC at nominal input current | ||||||
Frequency range | 40Hz-2000Hz | ||||||
Dielectric strength | 3KV 50Hz/60Hz at 1 minute | ||||||
Temperature range | -20°C to +55°C | ||||||
Output | 2.5 meter cable with D01 connector | ||||||
Max. voltage not insulated conductors | 600 V | ||||||
Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 | ||||||
Installation | Clamp type | ||||||
Output mode | Lead output (2.5m) | ||||||
Mechanical parameters | |||||||
Dimensions (L x W x H)(mm) | 82 x 290 x 25.3 | ||||||
Weight (g) | 500 | ||||||
Holding wire diameter (mm) | φ40 | ||||||
Max. jaw opening (mm) | 40 | ||||||
Color | Black | ||||||
Material | PC+ABS+Polycarbonate, UL94 V0 |
