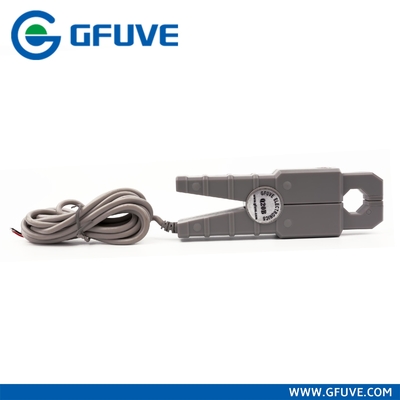

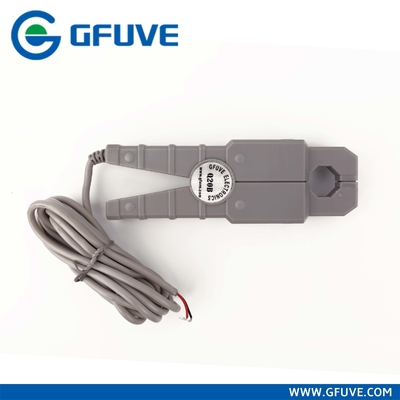

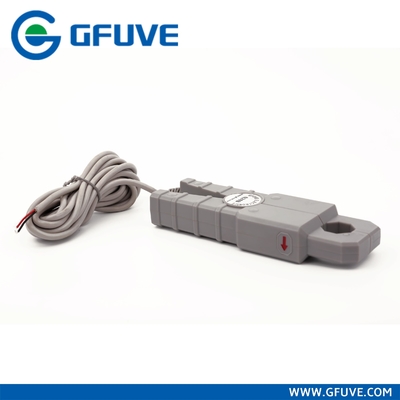

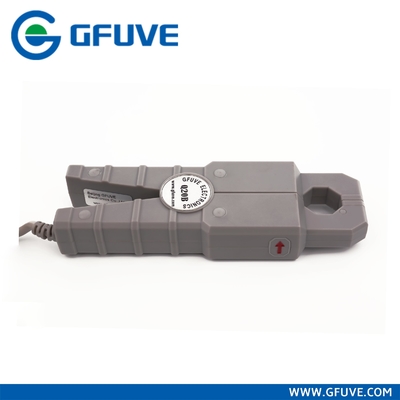

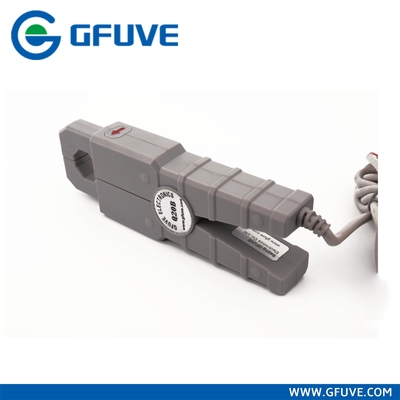

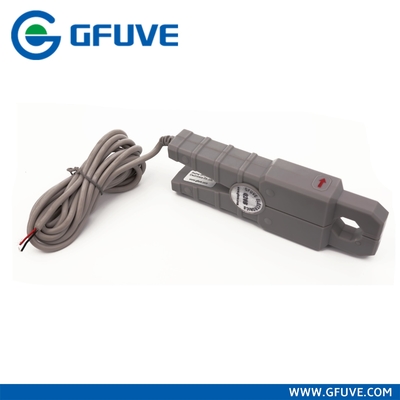

Q20B High Accuracy High Performance Openable Jaw AC Current Clamp On Cts Current Sensor
-
-
Large Image :
Q20B High Accuracy High Performance Openable Jaw AC Current Clamp On Cts Current Sensor
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Model Number: |
Q20B |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3 pieces |
| Price: |
USD 80/ piece |
| Packaging Details: |
standard export carton |
| Delivery Time: |
within 7days |
| Payment Terms: |
D/A, L/C, D/P, T/T, Western Union, MoneyGram |
|
Detailed Product Description
| Ratio: |
1000: 1 Or 2000:1 (customized) |
Accuracy Class: |
0.1%, 0.2%, 0.5% |
| Primary Current: |
0 - 200A AC |
Secondary Current: |
0 - 200mA AC (customized) |
| Max. Cont. Input Current: |
240A |
Max. Voltage Not Insulated Conductors: |
600 V |
| Over Voltage Category: |
CAT III 600V |
Output Signal (AC Current): |
From 0 To 200mA AC At Nominal Input Current |
| Output Signal (AC Voltage): |
From 0 To 200mV AC At Nominal Input Current |
Frequency Range: |
40Hz-2000Hz |
Q20B High Accuracy High Performance Openable Jaw AC Current Clamp On Cts Current Sensor
As a high accuracy and high performance openable jaw AC current clamp on cts current sensor, the model Q20B cts are best-in-class devices for use with power meters, power analyzers and high performance oscilloscopes.
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Features
1. Measurement range of 1mA to 200A AC
2. Small, compact size
3. Improved ergonomic design and easy operation
4. Low phase shift for power measurement
5. With load capacity ≤4Ω
6. Output model: Lead output(2.5m)
| Electrical parameters |
| Ratio |
1000: 1 or 2000:1 (customized) |
| Accuracy class |
0.1%, 0.2%, 0.5% |
| Primary current |
0 - 200A AC |
| Secondary current |
0 - 200mA AC or 0 - 200mV AC(customized) |
| Max. Cont. Input current |
240A |
| Over voltage category |
CAT III 600V |
| Output signal (AC current) |
From 0 to 200mA AC at nominal input current |
| Output signal (AC voltage) |
From 0 to 200mV AC at nominal input current |
| Frequency range |
40Hz-2000Hz |
| Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
| Temperature range |
-20°C to +55°C |
| Output |
2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors |
600 V |
| Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation |
Clamp type |
| Output mode |
Lead output(2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) |
56 x 168 x 27 |
| Weight (g) |
350 |
| Holding wire diameter (mm) |
φ20 |
| Max. jaw opening (mm) |
20 |
| Color |
Gray |
| Material |
PC+ABS+Polycarbonate, UL94 V0 |
