Ratio: | 1000: 1 Or 2000:1 (customized) | Accuracy Class: | 0.1 %,0.2% |
---|---|---|---|
Primary Current: | 0 - 100A AC | Secondary Current: | 0 - 100mA AC (customized) |
Max. Cont. Input Current: | 120A | Max. Voltage Not Insulated Conductors: | 600 V |
Over Voltage Category: | CAT III 600V | Output Signal (AC Current): | 100mA AC At Nominal Input Current |
Output Signal (AC Voltage): | 100mV,1V AC At Nominal Input Current | Frequency Range: | 40Hz-2000Hz |

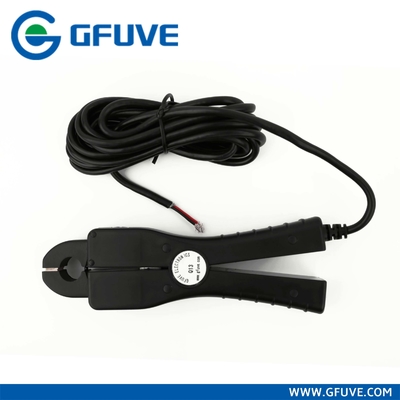

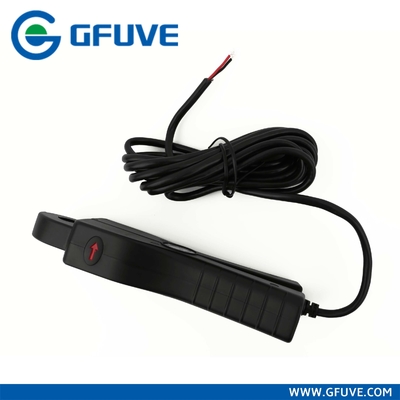

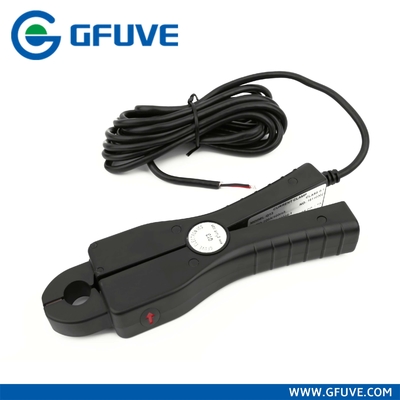

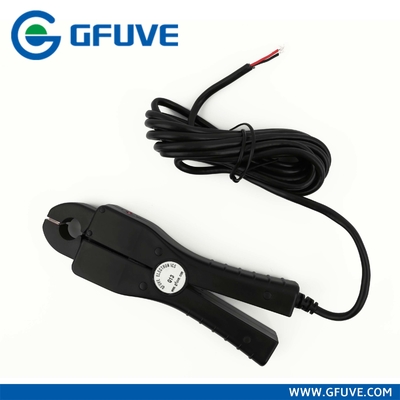

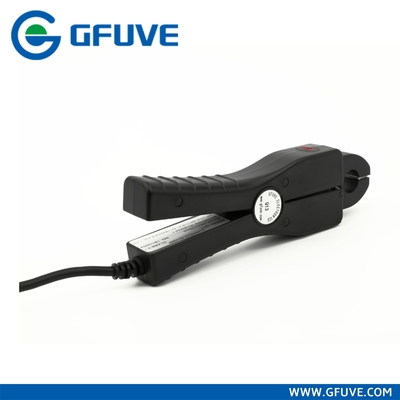

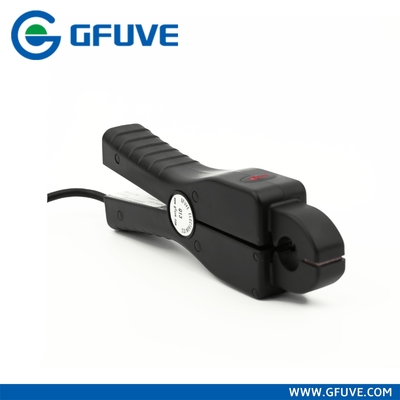

The Q13 is a high accuracy mini probe for measurements to 120A AC. This current probe uses a special magnetic core to provide higher accuracy and lower phase shift. The Q13 Series is an excellent probe to be used in power and low level current measurement applications.
Applications
1. Power quality measuring
2. Measuring around cable bundles
3. Power load monitoring
4. Waveform analysis
5. Energy meter calibrator
6. Measuring in breaker panels
7. HVAC
8. Residential and commercial sites
9. Data logging/recording
Features
1. Measurement range of 1mA to 120A AC
2. Improved ergonomic design and easy opera
