Ratio: | 1000: 1 Or 2000:1 (customized) | Accuracy Class: | 0.2%, 0.5% |
---|---|---|---|
Primary Current: | 0 - 10A AC | Secondary Current: | 0 - 10mA AC (customized) |
Max. Cont. Input Current: | 12A | Load Capacity: | ≤4Ω |
Over Voltage Category: | CAT III 600V | Output Signal (AC Current): | From 0 To 10mA AC At Nominal Input Current |
Output Signal (AC Voltage): | From 0 To 1V AC At Nominal Input Current | Frequency Range: | 40Hz-2000Hz |

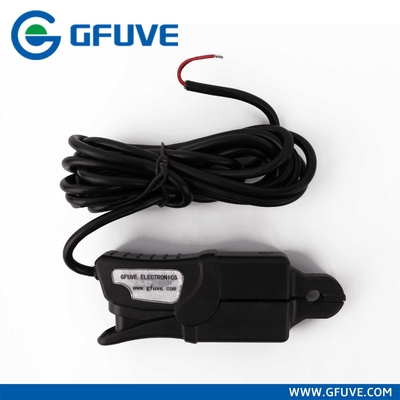

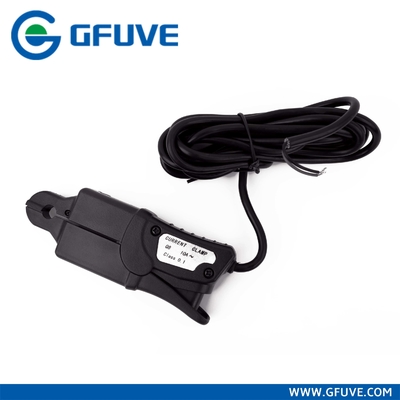

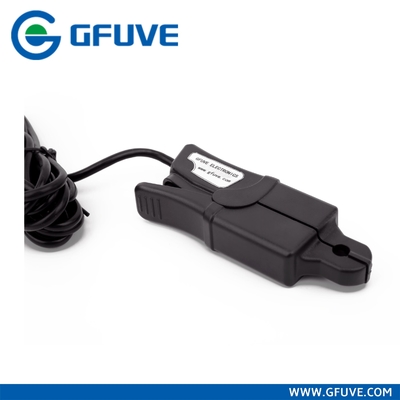

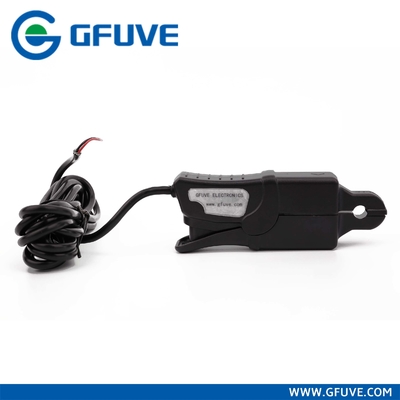

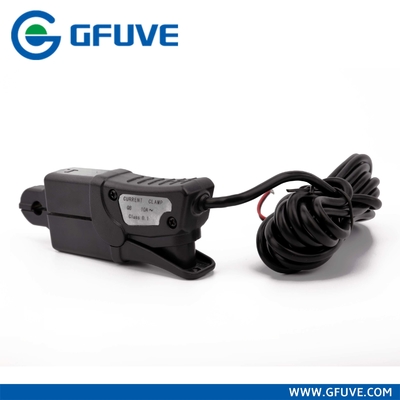

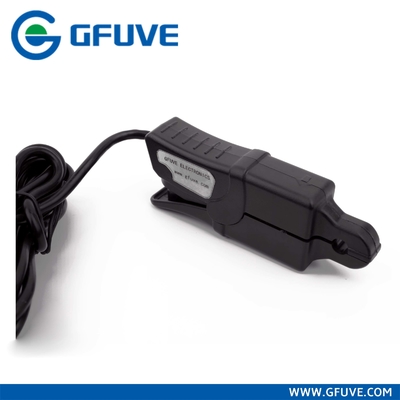

As high performance current probe ct, the model Q8 copper wire clamp-on ac current sensor is suitable for 5A, 10A cable online measurement, the user friendly shape make It easily clamp onto cables.
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Features
1. Measurement range of 1mA to 100A AC
2. Small, compact size
3. Improved ergonomic design and easy operation
4. Low phase shift for power measurement
5. With load capacity ≤4Ω
6. Output model: Lead output(2.5m)
