Standards: | EN 61010-1, EN 61010-2-032, IEC60044-1 | Ratio: | 1000: 1 Or 2000:1 (customized) |
---|---|---|---|
Accuracy Class: | 0.1%, 0.2% | Primary Current: | 0 - 100A AC |
Secondary Output: | 0 - 100mA AC (customized) | Max. Cont. Input Current: | 120A |
Over Voltage Category: | CAT III 600V | Output Signal (AC Current): | From 0 To 100mA AC At Nominal Input Current |
Output Signal (AC Voltage): | From 0 To 2V AC At Nominal Input Current | Frequency Range: | 40Hz-2000Hz |
Max. Voltage Not Insulated Conductors: | 600 V | Dielectric Strength: | 3KV 50Hz/60Hz At 1 Minute |

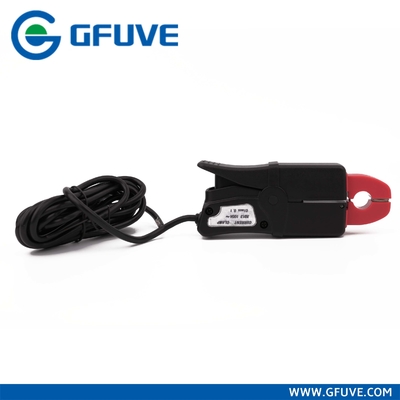

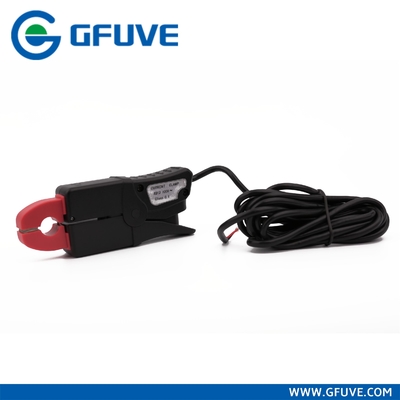

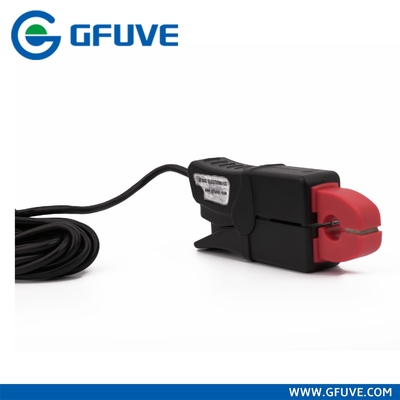

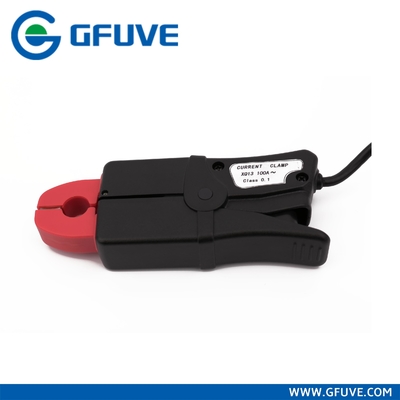

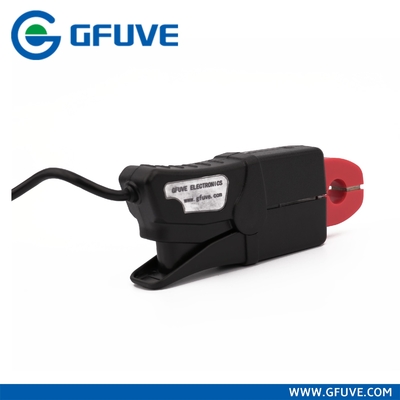

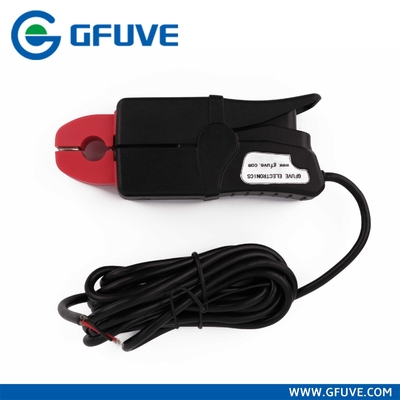

XQ13 High Precision Standard Mini Clamp-on Current Sensor High Performance Handheld Clamp On Current Probe
The model XQ13 handheld clamp on current transducer is suitable for 10A-100A cable online measurement, it belongs to high performance transducer field.
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Features
1. Measurement range of 1mA to 100A AC
2. Small, compact size
3. Improved ergonomic design and easy operation
4. Low phase shift for power measurement
5. With load capacity ≤4Ω
6. Output model: Lead output(2.5m)
Electrical parameters | |
---|---|
Ratio | 1000: 1 or 2000:1 (customized) |
Accuracy class | 0.1%, 0.2% |
Primary current | 0 - 100A AC |
Secondary current | 0 - 100mA AC (customized) |
Max. Cont. Input current | 120A |
Over voltage category | CAT III 600V |
Output signal (AC current) | From 0 to 10mA AC at nominal input current |
Output signal (AC voltage) | From 0 to 10mA AC at nominal input current |
Frequency range | 40Hz-2000Hz |
Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
Temperature range | -20°C to +55°C |
Output | 2.5 meter cable with D01 connector |
Max. voltage not insulated conductors | 600 V |
Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
Installation | Clamp type |
Output mode | Lead output(2.5m) |
Mechanical parameters | |
Dimensions (L x W x H) (mm) | 48 x 179 x 27 |
Weight (g) | 280 |
Holding wire diameter (mm) | φ13 |
Max. jaw opening (mm) | 13 |
Jaw color | Red, yellow, blue, green, black |
Material | PC+ABS+Polycarbonate, UL94 V0 |
