Product Details:
Payment & Shipping Terms:
|
Rated Load: | ≤50VA | Standards: | IEC60044; IEC 61869; ANSI/IEEE C57.13 |
---|---|---|---|
Rated Frequency: | 50Hz Or 60Hz | Cosø: | 0.8 (lag) |
Rated Voltage: | 10KV, 6KV | Phase Number: | Three |
Rated Insulation Level: | 12/42/75KV, 7.2/32/60KV | Material: | Epoxy Resin |
Weight (kg): | 40 | Class Of Pollution: | II |

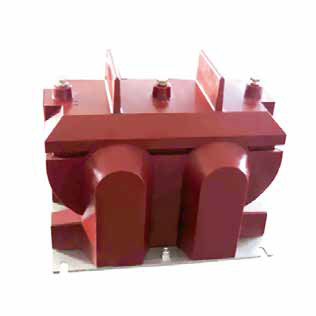

GFJSZY1649-10R Fully Insulation Endurable Quality Assured Indoor Epoxy Resin Three Phase Medium Potential Transformers
The GFUVE GFJSZY1649-10R Fully Insulation Endurable Quality Assured Indoor Epoxy Resin Three Phase Medium Potential Transformers are three-phase multi-winding whole sealing epoxy pouring product. It is used both indoor for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 12kV or below. It is designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
