TEST-905 Primary Current Injection Test Kit adopts ARM chip to control the output process
-
-
Large Image :

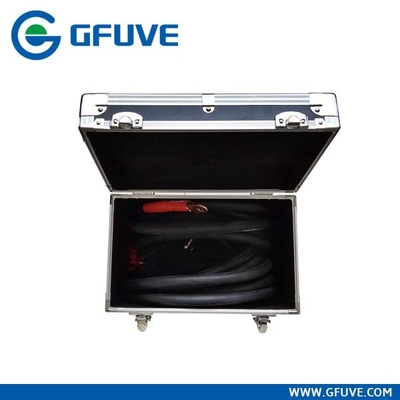

TEST-905 Primary Current Injection Test Kit adopts ARM chip to control the output process
|
Product Details:
| Place of Origin: |
Beijing |
| Brand Name: |
GFUVE |
| Certification: |
GB 1207-2006, GB 1208-2006 (IEC 60044-1), GB16847-1997 (IEC 60044-6), IEEE C57.13-1993 |
| Model Number: |
TEST-905 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3pcs |
| Price: |
352USD |
| Packaging Details: |
Standard export wooden box |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
100000pcs/mon |
|
Detailed Product Description
| TEST-905: |
Large Current Injection Test Set |
Accuracy: |
±0.5% |
| Power Supply (AC): |
380V·50A, 50Hz/60Hz |
Current Output (AC): |
5000A·5V Or 2500A·10V |
| Capacity: |
25KVA |
The Current Output Waveform Distortion: |
≤5% |
| Range: |
0-5500A |
Resolution: |
0.1A |
| Dimensions (W×D×H) (mm): |
430×430×445 And 550×450×600 |
Weight (kg): |
Control Host 48kg, External Voltage Regulator Weight 42kg |
COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
PRODUCT INTRODUCTION

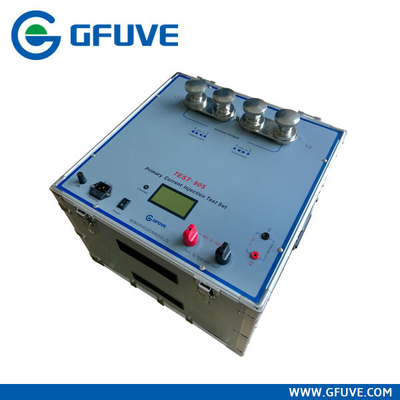

TEST-905 5000A Circuit Breaker Testing Primary Current Injection Test System
TEST-905 primary current injection test system adopts ARM chip to control the output process and large capacity of toroidal transformer. It is equipped with LCD screen display current meter, also showed primary current value, secondary current value, turn ratio and the phase shift. Aluminum alloy body with PC panel component the shell.
TEST-905 is mainly applied to test CT turn ratio and polarity in the power system, the contact resistance, high voltage circuit breaker protection test and high voltage generator test etc, which need large current on-site or in the lab.
Features
- Permanent current up to 5000 A, 15KVA
- Max current output up to 5500A.
- Built-in digital ammeter 0.5% accuracy.
- Built-in digital timer resolution 1 ms (Optional).

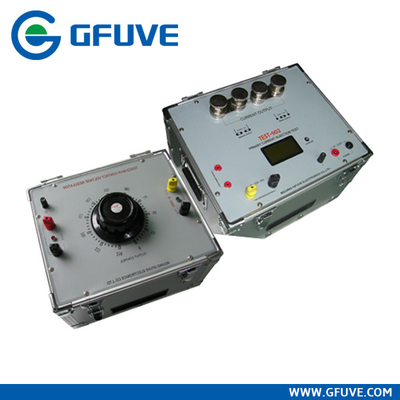

- Made up of two units, control and power unit
- Thermal and short-circuit protection.
Parameters
| Electrical parameters |
| Accuracy |
±0.5% |
| Power Supply(AC) |
380V·70A, 50Hz/60Hz |
| Current Output (AC) |
5000A·5V or 2500A·10V |
| Capacity |
25KVA |
| The current output waveform distortion |
≤5% |
| Primary current |
| Range |
0-5500A |
| Resolution |
0.1A |
| Accuracy |
<0.5% |
| Secondary measurement |
| Range |
0-6A |
| Resolution |
0.001A |
| Accuracy |
<0.5% |
| Current duration |
| 5000A range |
5000A 2-3minutes
2500A 3-6minutes |
| 2500A range |
2500A 2-3minutes |
| With timer |
| Range |
0.0001～999.99S |
| Resolution |
0.001S |
| Accuracy |
<0.5%±5 words |
| Mechanical parameters |
| Dimensions (W×D×H) (mm) |
430×430×445 and 550×450×600 |
| Weight(kg) |
Control Host 68kg,
External voltage regulator weight 55kg |
| Environmental conditions |
| Temperature |
-10°C to 40°C |
| Relative humidity |
≤80% |
Selection Guide
| Model |
ACCU
RACY |
Primary
current |
AMMETER
(0-6A) |
TIMER |
POWER |
INJECTION CURRENT TIME |
DIMENSION(W×D×H)(mm) |
WEIGHT |
REMARK |

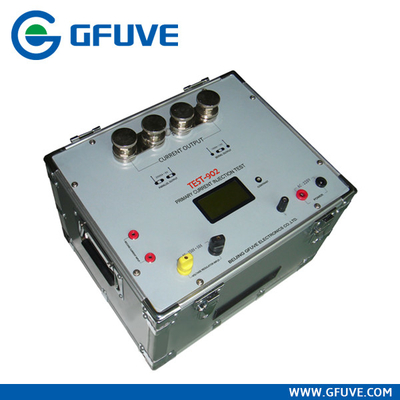

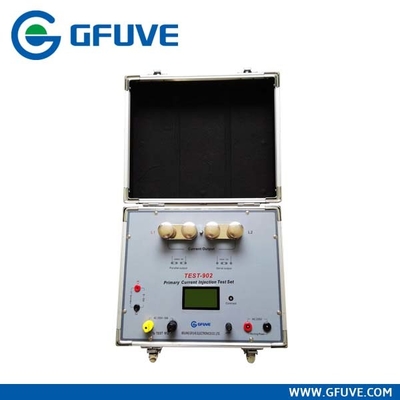

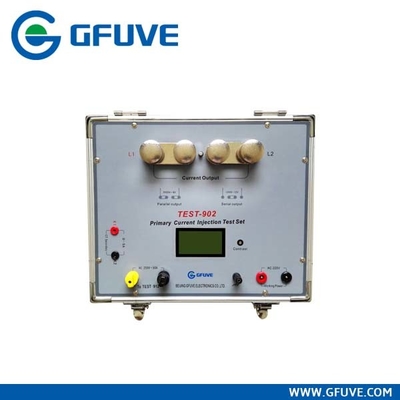

| TEST-901 |
0.5% |
0-1100A |
YES |
YES |
5KVA |
1000A: 2-3min;
500A:3-6min |
430×260×260 |
25KG |
Integrated structure |
| TEST-902 |
0.5% |
0-2200A |
YES |
OPTIONAL |
12KVA |
2000A:2-3min;
1000A:3-6min |
360×300×295 and 320×300×300 |
35KG+15KG |
Fission structure |
| TEST-903 |
0.5% |
0-3300A |
YES |
OPTIONAL |
15KVA |
3000A:2-3min;
1500A:3-6min |
380×350×360 and 340×290×420 |
48KG+42KG |
Fission structure |
| TEST-905 |
0.5% |
0-5500A |
YES |
OPTIONAL |
25KVA |
5000A:2-3min;
2500A:3-6min |
430×430×445 and 550×450×600 |
68KG+55KG |
Fission structure |
Download Catalogue
