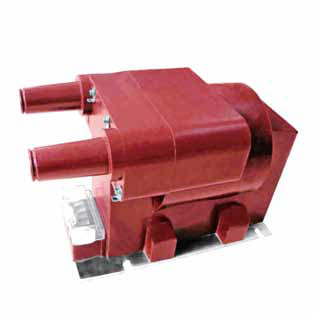

GFJDZ1278-10R epoxy resin indoor installation PT voltage transformer electrical protect and voltage metering

Large Image : GFJDZ1278-10R epoxy resin indoor installation PT voltage transformer electrical protect and voltage metering

Product Details:

Place of Origin:	Beijing, China
Brand Name:	GFUVE
Certification:	IEC60044; IEC 61869; ANSI/IEEE C57.13
Model Number:	GFJDZ1278-10R

Payment & Shipping Terms:

Minimum Order Quantity:	3 pieces
Price:	USD 70 / piece
Packaging Details:	standard export carton
Delivery Time:	within 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100000 pieces per month

Contact Now

Detailed Product Description

Standards:	IEC60044; IEC 61869; ANSI/IEEE C57.13	Rated Voltage:	10KV， 6KV
Rated Load:	≤400VA	Rated Frequency:	50Hz Or 60Hz
Cosø:	0.8 (lag)	Phase Number:	Single
Rated Insulation Level:	12/42/75KV，7.2/32/60KV	Material:	Epoxy Resin
Weight (kg):	38	Class Of Pollution:	II

GFJDZ1278-10R epoxy resin indoor installation PT voltage transformer electrical protect and voltage metering

This model GFJDZ1278-10R potential instrument transformers are cast in epoxy resin and fully enclosed. The units are suitable for electric systems of rated frequency of 50/60Hz and rated voltage of 36kV and below. They are used in indoor service conditions. The products are designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.

GFJDZ1278-10R epoxy resin indoor installation PT voltage transformer electrical protect and voltage metering
