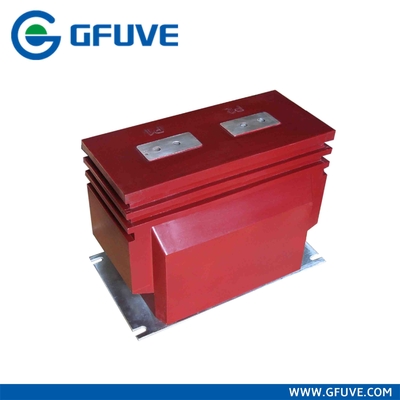

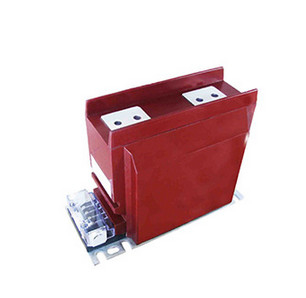

GFLZZ0967-10C5 Medium and High Voltage 5-6000A 12/42/75kV Epoxy resin Industrial Current Transformer
-
-
Large Image :
GFLZZ0967-10C5 Medium and High Voltage 5-6000A 12/42/75kV Epoxy resin Industrial Current Transformer
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
IEC60044; IEC 61869; ANSI/IEEE C57.13 |
| Model Number: |
GFLZZ0967-10C5 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3 pieces |
| Price: |
USD 70 / piece |
| Packaging Details: |
standard export carton |
| Delivery Time: |
within 7 days |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
100000 pieces per month |
|
Detailed Product Description
| Standards: |
IEC60044; IEC 61869; ANSI/IEEE C57.13 |
Rated Primary Current: |
10-4000A |
| Rated Load: |
≤40VA |
Rated Frequency: |
50Hz Or 60Hz |
| Rated Secondary Current: |
5A Or 1A |
Rated Short-time Thermal Current: |
100KA,1S |
| Rated Dynamic Current: |
200kA |
Rated Insulation Level: |
12/42/75KV |
| FS: |
≤10 |
Material: |
Epoxy Resin |
| Weight (kg): |
28 |
GFLZZ0967-10C5 Medium and High Voltage 5-6000A 12/42/75kV Epoxy resin Industrial Current Transformer
GFLZZ0967-10C5 Global wholesale ct Current Transformer for genset
TheGlobal wholesale ct Current Transformer for genset GFLZZ0954-10E are cast in epoxy resin insulated with big surface creepage distance and are excellent in anti-pollution and humidity protection. With high grade accuracy, it is suitable for protection against large short-circuit current, secondary current output 1A or 5A. The performances of the products meet standards IEC60044-1, IEC61869-2 and ANSI/IEEE C57.13.
