GFLZZ0946-10C2 Low Cost Current Transformer 12/42/75kV High Accuracy 5A/10A/1000A/3000A Protectional Current Transformer
Detailed Product Description
| Standards: |
IEC60044; IEC 61869; ANSI/IEEE C57.13 |
Rated Primary Current: |
5-3150A |
| Rated Load: |
≤40VA |
Rated Frequency: |
50Hz Or 60Hz |
| Rated Secondary Current: |
5A Or 1A |
Rated Short-time Thermal Current: |
100KA,1S |
| Rated Dynamic Current: |
160kA |
Rated Insulation Level: |
12/42/75KV |
| FS: |
≤10 |
Material: |
Epoxy Resin |
| Weight (kg): |
28 |
GFLZZ0946-10C2 Low Cost Current Transformer 12/42/75kV High Accuracy 5A/10A/1000A/3000A Protectional Current Transformer

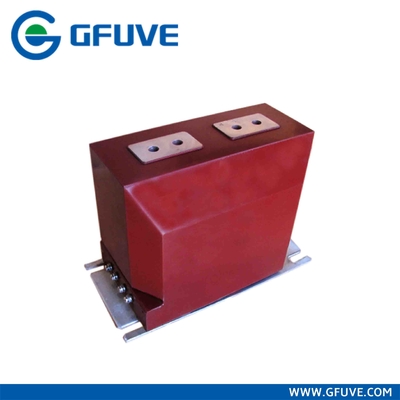

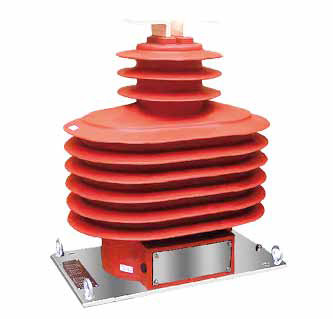

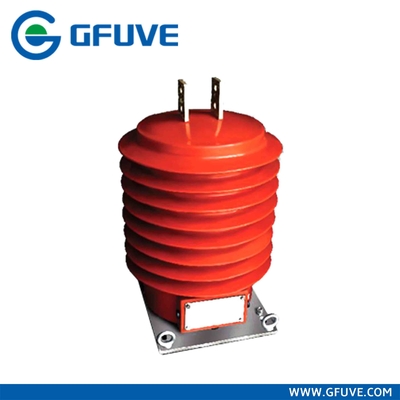

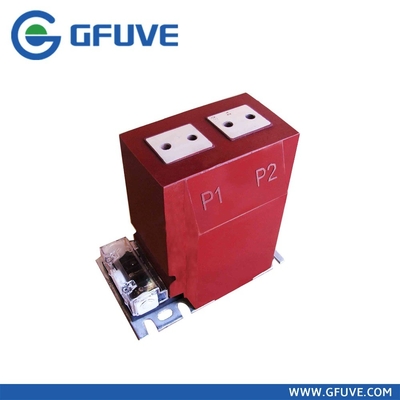

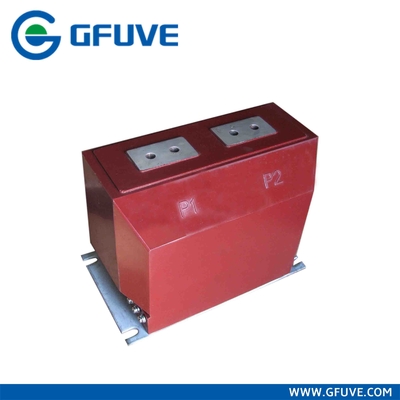

GFLZZ0946-10C2 Low Cost Current Transformer 12/42/75kV High Accuracy 5A/10A/1000A/3000A Protectional Current Transformers are fully enclosed and cast in epoxy resin. Transformer is equipped with one core and coil assembly rated for measurement and protection.
The transformers are designed for electric power systems of 50Hz/60Hz rated frequency. They are used for outdoor mounting. The performances of the products meet standards IEC60044-1, IEC61869-2 and IEEE C57.13. The products are applied to metering electric energy, voltage controlling and relay protection.
