GFLXZK0211-Φ100 split core current trasnformer with 5 amps out put

Certification
Good quality Current Transformer for sales
I'm Online Chat Now

GFLXZK0211-Φ100 split core current trasnformer with 5 amps out put

China GFLXZK0211-Φ100  split core current trasnformer with 5 amps out put supplier
GFLXZK0211-Φ100  split core current trasnformer with 5 amps out put supplier GFLXZK0211-Φ100  split core current trasnformer with 5 amps out put supplier

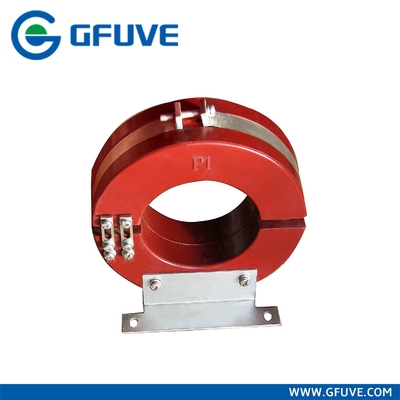

Large Image :  GFLXZK0211-Φ100 split core current trasnformer with 5 amps out put

Product Details:

Place of Origin: Beijing,China
Brand Name: GFUVE
Certification: IEC60044; IEC 61869; ANSI/IEEE C57.13
Model Number: GFLXZK0211-Φ100

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: USD 30-100 per pieces
Packaging Details: stanfard export wooden box
Delivery Time: within 3 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 120000pieces per monthly
Contact Now
Detailed Product Description
Key Words: Split Core Trasnformer With 5 Amps Out Put Model: Current Trasnformer With 5 Amps Out Put
Rated Primary Current: 50-600A Rated Load: ≤5VA
Rated Frequency: 50Hz Or 60Hz Rated Secondary Current: 5A Or 1A
Material: Epoxy Resin Weight (kg): 8
Color: Red Or Customized

Product Name
GFLXZK0211-Φ100 split core current trasnformer with 5 amps out put
Product Description
GFLXZK0211-Φ100 split core current trasnformer with 5 amps out put is suitable for current measurement and microcomputer protection of electrical equipment. It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus...and cable distribution boxes. The current transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.

GFLXZK0211-Φ100  split core current trasnformer with 5 amps out put

GFLXZK0211-Φ100  split core current trasnformer with 5 amps out put

Parameters

Technical parameters
Standards IEC60044; IEC 61869; ANSI/IEEE C57.13
Rated primary current 50-600A
Rated load ≤5VA
Rated frequency 50Hz or 60Hz
Rated secondary current 5A or 1A
Rated short-time thermal current 40kA, 1S
Rated dynamic current 63kA
Rated insulation level 12/42/75KV
FS ≤10
Mechanical parameters
Material Epoxy resin
Weight (kg) 8
Operating conditions
Operating temperature -10°C to +55°C
Daily average temp <+40°C
Storage temperature -40°C to +70°C
Altitude <1000 meters
Condition No existence of severely begrimed, erosive andradioactive gas in the air. Permission of long-term
operation under rated current

Ordering information
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make an order. Special specifications could be customized. All kinds of different specifications and parameters current transformers can be made according to your needs.
