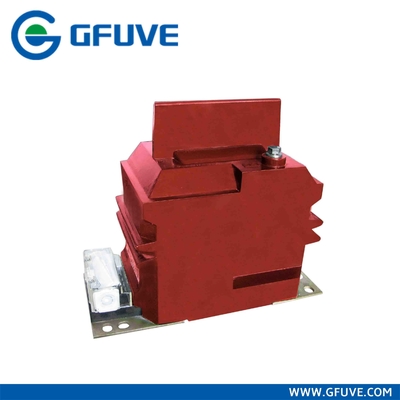

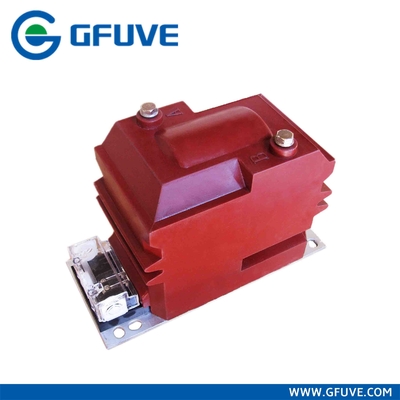

GFJDZGFJDZ1066-10B1 10KV outdoor High voltage potential transformer
This model GFJDZGFJDZ1066-10B1 10KV potential instrument transformers are cast in epoxy resin and fully enclosed. The units are suitable for electric systems of rated frequency of 50/60Hz and rated voltage of 10kV and below. They are used in indoor service conditions. The products are designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.
Parameters
| Technical parameters |
| Standards |
IEC60044; IEC 61869; ANSI/IEEE C57.13 |
| Rated Voltage |
10KV,6KV |
| Rated load |
≤150VA |
| Rated frequency |
50Hz or 60Hz |
| Cosø |
0.8 (lag) |
| Phase number |
Single |
| Rated insulation level |
12/42/75KV, 7.2/32/60KV |
| Class of pollution |
II |
| Mechanical parameters |
| Material |
Epoxy resin |
| Weight (kg) |
25 |
| Operating conditions |
| Operating temperature |
-25°C to +55°C |
| Daily average temp |
<+40°C |
| Storage temperature |
-40°C to +70°C |
| Altitude |
<1000 meters |
| Condition |
No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
Selection guide
0.2 0.5 1
GFJDZ1066-10B1 10/0.1 GFJDZ1066-6B1 6/0.1
Model Rated Voltage Ratio(KV)
Limiting Therminal Output(VA)
25 50 90
Accuracy class and Rated output (VA)
300
GFJDZ1066-10B1 10/0.1/0.1 GFJDZ1066-6B1 6/0.1/0.1
0.2/0.2 0.2/0.5 0.5/0.5
15/15 15/20 20/20
200
