Detailed Product Description
LZZW3-35Q: Current Transformer For Ammeter Rated Primary Current(A): 10-2000
Accuracy Class Combination: 0.2(S)/0.5(S) Rated Secondary Output(VA): 0.2(S)0.5S
Surface Creepage Distance (mm): 1300 Weight (KG): 90
Color: Red

COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.

PRODUCT INTRODUCTION

LZZW3-35Q Instrument Multi Ratio Current Transformer

multi ratio current transformer

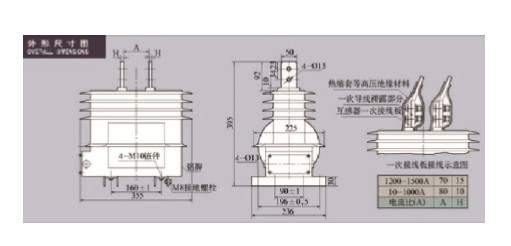

The outdoor instrument current transformers LZZW3-35Q are fully enclosed and cast in epoxy resin. Instrument transformer is equipped with one core and coil assembly rated for measurement and protection, and then output multi ratio. The current transformers are designed for electric power systems of 50Hz/60Hz rated frequency and 35kV rated voltage. They are used for outdoor mounting. The performances of the products meet standards IEC60044-1, IEC61869-2 and ANSI/IEEE C57.13. The products are applied to metering electric energy, voltage controlling and relay protection.

Technical data 1: two windings

Rated primary current(A) Accuracy class combination Rated secondary output(VA) Surface creepage distance
(mm)
Weight(KG)
1S/2S 0.2(S)0.5S 0.5 5P10 5P15 5P20
10-630 0.2(S)/0.5(S)
0.2(S)/5p
0.5(S)/5p

10 20 100 60 40 1300 90
750-2000 120 75 50

Technical data 2: three windings

Rated primary current(A) Accuracy class combination Rated secondary output(VA) Surface creepage distance
(mm)
Weight(KG)
1s/2s/3s 0.2(s)0.5S 0.5 5P10 5P15 5P20
10-500 0.2(S)/0.2(S)/5P
0.2(S)/0.5(S)/5p
0.5(S)/0.5(S)5p

10 20 50 30 25 1300 90
600-1000 80 50 30
1200-2000 100 60 40
100-630 0.2(S)/5p/5p
0.5(S)/5p/5p
10 20 30 20 15
750-1000 50 30 20
1200-1600 60 30 25
2000 60 40 25

Technical data 3: four windings singls transformaiton radio

Rated primary current(A) Accuracy class combination Rated secondary output(VA) Surface creepage distance
(mm)
Weight(KG)
1s/2s/3s/4s 0.2(s)0.5s 0.5 5P10 5P15 5P20
10-800 0.2(S)/0.2(S)/5P/5P
0.2(S)/0.5(S)/5p/5P
0.5(S)/0.5(S)5p/5P

10 20 25 15 10 1300 90
1000 30 50 10
1200-2000 40 25 15

Technical data 4: three windings singls transformaiton radio

Rated primary current (A) Accuracy
class combination
Rated secondary output(VA) Surface creepage distance (mm) Wt
(KG)
1s/2s/3s/4s 0.2(S)0.5s 0.5 5P10 5P15 5P20
10-15-20 0.2(S)/0.2(S)/5P/5P
0.2(S)/0.5(S)/5p/5P
0.5(S)/0.5(S)5p/5P
10 20 25 15 10 1300 90
15-20-30
20-30-40
30-40-50
40-50-75
50-75-100
75-100-150
100-150-200
150-200-300
200-300-400
300-400-500
400-500-600
500-600-800
600-800-1200
800-1200-1500
1200-1500-2000

Technical data 5: Idyn

Rated primary current (A) Ith/ls (KA r.m.s.) Idyn (KA peak)
Double transformaion ratio Single transformaion ratio
10-15-20 10 2 5
15-20-30 15 3 7.5
20-30-40 20,25 4 10
30-40-50 30 6.3 15.7
40-50-75 40 9.4 23.6
50-75-100 50 12.6 31.5
75-100-150 75 15.7 39
100-150-200 100 22 55
150-200-300 150 31.5 78.7
200-300-400 200,250 47 118
300-400-500 300 63 157.5
400-500-600 400 63 157.5
500-600-800 500 80 200
600-800-1200 600-1200 80 200
800-1200-1500 1500-2000 140 200
1200-1500-2000
