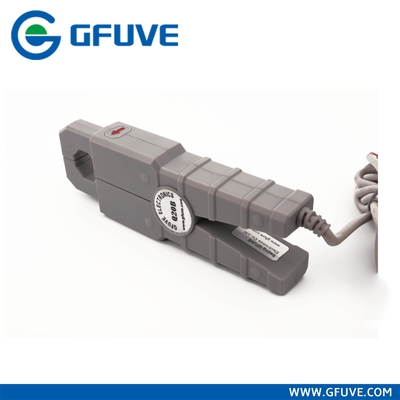

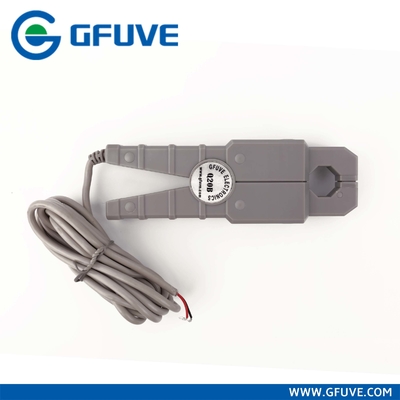

Q13 Low current CE 100A/100mA Split Core AC Current Probe for measurements to 120A AC
-
-
Large Image :
Q13 Low current CE 100A/100mA Split Core AC Current Probe for measurements to 120A AC
|
Product Details:
| Place of Origin: |
Beijing |
| Brand Name: |
GFUVE |
| Certification: |
IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006 |
| Model Number: |
Q13 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3pcs |
| Price: |
80USD |
| Packaging Details: |
Standard export wooden box |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
100000pcs/mon |
|
Detailed Product Description
| Q13: |
Split Core AC Current Probe |
Ratio: |
1000: 1 Or 2000:1 (customized) |
| Accuracy Class: |
0.1%, 0.2% |
Primary Current: |
0 - 100A AC |
| Secondary Current: |
0 - 100mA AC (customized) |
Max. Cont. Input Current: |
120A |
| Frequency Range: |
40Hz-2000Hz |
Temperature Range: |
-20°C To +55°C |
| Dimensions (L X W X H) (mm): |
45 X 160 X 25 |
Weight (g): |
300 |
| Holding Wire Diameter (mm): |
φ13 |
Max. Jaw Opening (mm): |
13 |
COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
PRODUCT INTRODUCTION

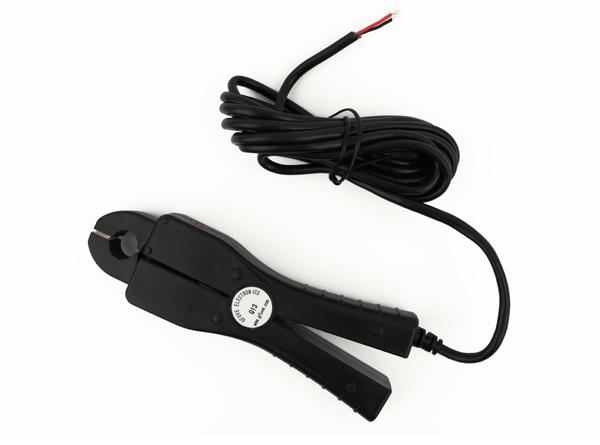

Q13 CE UL Europe cheap ma output Split Core AC Current Probe
The Q13 is a high accuracy mini probe for measurements to 120A AC. This current probe uses a special magnetic core to provide higher accuracy and lower phase shift. The Q13 Series is an excellent probe to be used in power and low level current measurement applications.
Applications
- Power quality measuring
- Measuring around cable bundles
- Power load monitoring
- Waveform analysis
- Energy meter calibrator
- Measuring in breaker panels
- HVAC
- Residential and commercial sites
- Data logging/recording
Features
- Measurement range of 1mA to 120A AC
- Improved ergonomic design and easy operation
- High content nickel metal core
- Low phase shift for power measurement
- Small, compact size
- Jaw opening accommodates conductors up to 13mm diameter
- Designed for DMMs, loggers, recorders and oscilloscopes
- 40Hz to 10kHz response
- 1mA/A AC output signals
- Designed to EN 61010, 600V CAT III safety standard
- UL, CE mark
Parameters
| Electrical parameters |
| Ratio |
1000: 1 or 2000:1 (customized) |
| Accuracy class |
0.1%, 0.2% |
| Primary current |
0 - 100A AC |
| Secondary current |
0 - 100mA AC (customized) |
| Max. Cont. Input current |
120A |
| Over voltage category |
CAT III 600V |
| Output signal (AC current) |
100mA AC at nominal input current |
| Output signal (AC voltage) |
100mV,1V AC at nominal input current |
| Frequency range |
40Hz-2000Hz |
| Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
| Temperature range |
-20°C to +55°C |
| Output |
2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors |
600 V |
| Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation |
Clamp type |
| Output mode |
Lead output (2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H)(mm) |
45 x 160 x 25(2.5m) |
| Weight (g) |
300 |
| Holding wire diameter (mm) |
φ13 |
| Max. jaw opening (mm) |
13 |
| Color |
Black |
| Material |
PC+ABS+Polycarbonate, UL94 V0 |
