2000A PRIMARY CURRENT INJECTION TEST SYSTEM FOR CURRENT TRANSFORMER
-
-

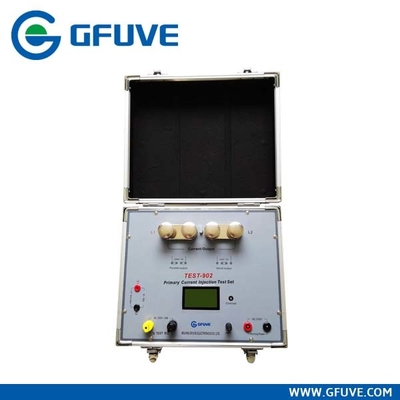

Large Image :
2000A PRIMARY CURRENT INJECTION TEST SYSTEM FOR CURRENT TRANSFORMER
|
Product Details:
| Place of Origin: |
BEIJING CHINA |
| Brand Name: |
GFUVE |
| Certification: |
ISO9001, CE, UL |
| Model Number: |
TEST-902 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1SET |
| Price: |
10000USD |
| Packaging Details: |
STANDARD EXPORT WOODEN BOX |
| Delivery Time: |
1-2WEEKS |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
200SETS/MONTH |
|
Detailed Product Description
| CLASS: |
0.5 |
TYPE: |
PRIMARY CURRENT INJECTION TEST SET |
| TIMER: |
0.000-999.99 |
CURRENT RANGE: |
0-2200A AC |
| CAPACITY: |
12KVA |
WEIGHT: |
38KG |
| CABLE LENGTH: |
5M |
POWER SUPPLY: |
220V AC OR 110V AC |

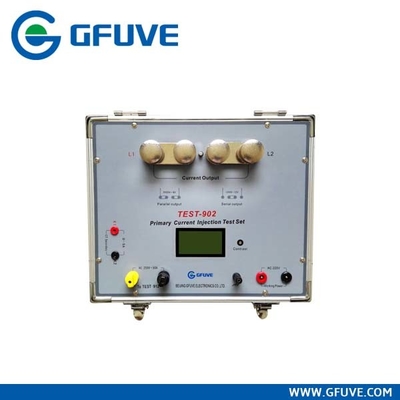

TEST-902 LARGE CURRENT ELECTRIC 2000A PRIMARY CURRENT INJECTION TEST SYSTEM FOR CURRENT TRANSFORMER

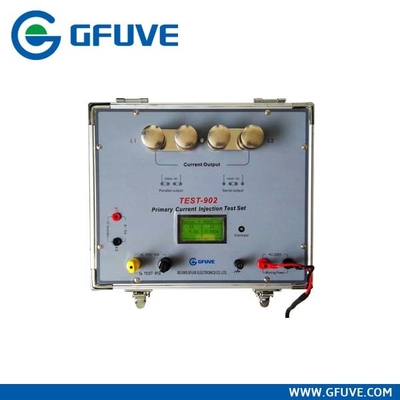

TEST-902 primary current injection test system adopts ARM Chip to control its output process and large capacity of toroidal transformers. It is equipped with LCD display and current meter; it can show primary current value, second current value, turn ratio and the action time. Packing is used as aluminum alloy body with PC panel. TEST-902 is mainly applied to CT turn ratio testing in the power system and contact resistance test which need large current.
This current injection test system is used by electric power bureau, it is good quality, reliable
FEATURES
- Permanent current up to 1000 A, 12KVA
- Max current output up to 1100A.
- Built-in digital ammeter 0.5% accuracy.
- Built-in digital timer resolution 1 ms (Optional).

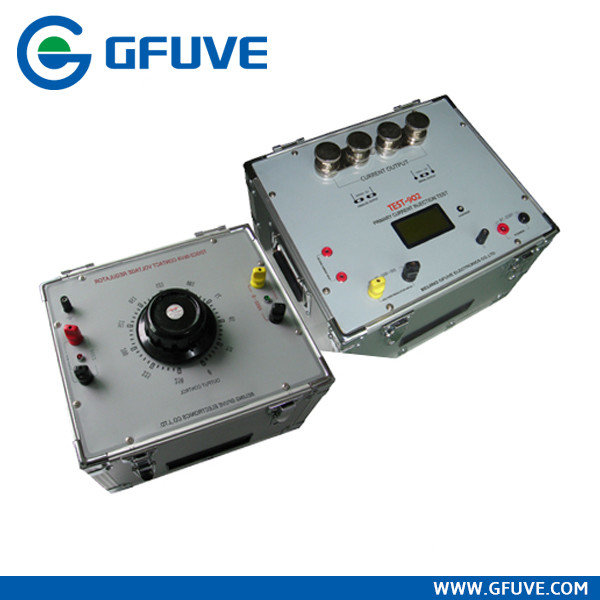

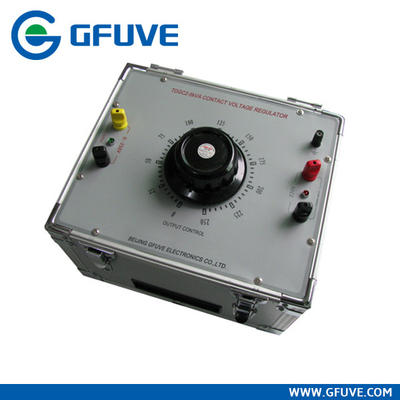

- Made up of two units, control and power unit
- Thermal and short-circuit protection.
PARAMETERS
| Electrical parameters |
| Accuracy |
±0.5% |
| Power Supply(AC) |
220V±10%·25A, 50Hz/60Hz or
110V±10%·50A, 50Hz/60Hz |
| Current Output (AC) |
1000A·5V or 500A·10V |
| Capacity |
KVA |
| The current output waveform distortion |
≤5% |
| Dual protection |
overload electronic protection and software protection |
| Primary current |
| Range |
0-1100A |
| Resolution |
0.1A |
| Accuracy |
<0.5% |
| Secondary measurement |
| Range |
0-6A |
| Resolution |
0.001A |
| Accuracy |
<0.5% |
| Current duration |
| 2000A range |
2000A 2-3minutes
1000A 3-6minutes |
| 1000A range |
1000A 2-3minutes |
| With timer |
| Range |
0.0001～999.99S |
| Resolution |
0.001S |
| Accuracy |
<0.5%±5 words |
| Mechanical parameters |
| Dimensions (W×D×H) (mm) |
430×260×260 |
| Weight(kg) |
38 |
| Environmental conditions |
| Temperature |
-10°C to 40°C |
| Relative humidity |
≤80% |
SELECTION GUIDE
| Model |
ACCU
RACY |
Primary
current |
AMMETER
(0-6A) |
TIMER |
POWER |
INJECTION CURRENT TIME |
DIMENSION(W×D×H)(mm) |
WEIGHT |
REMARK |
| TEST-901 |
0.5% |
0-1100A |
YES |
YES |
5KVA |
1000A: 2-3min;
500A:3-6min |
430×260×260 |
25KG |
Integrated structure |
| TEST-902 |
0.5% |
0-2200A |
YES |
OPTIONAL |
12KVA |
2000A:2-3min;
1000A:3-6min |
360×300×295 and 320×300×300 |
35KG+15KG |
Fission structure |
| TEST-903 |
0.5% |
0-3300A |
YES |
OPTIONAL |
15KVA |
3000A:2-3min;
1500A:3-6min |
380×350×360 and 340×290×420 |
48KG+42KG |
Fission structure |
| TEST-905 |
0.5% |
0-5500A |
YES |
OPTIONAL |
25KVA |
5000A:2-3min;
2500A:3-6min |
430×430×445 and 550×450×600 |
68KG+55KG |
Fission structure
|
