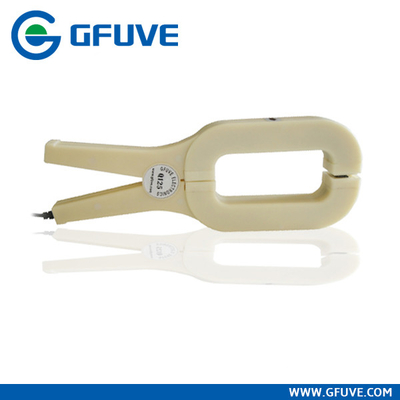

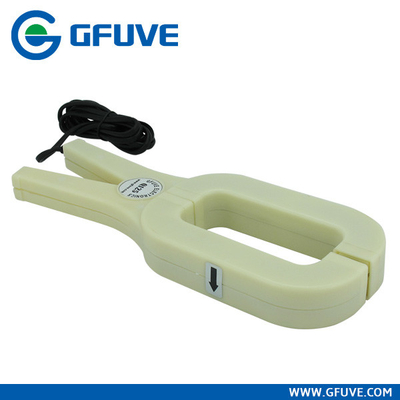

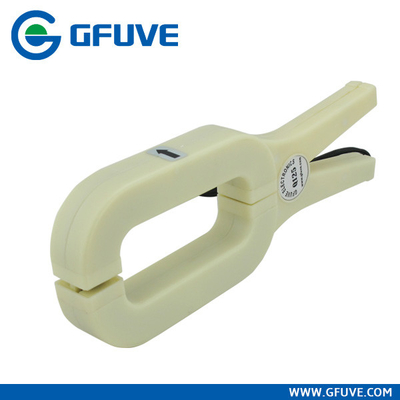

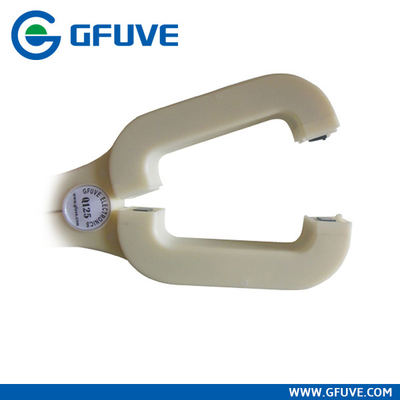

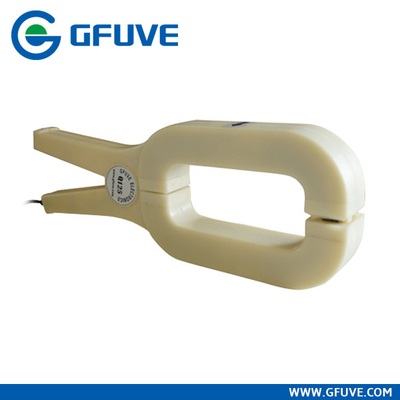

China supply class 0.5 1000A/5A AC bus bar clamp on split core current transformer
-
-
Large Image :
China supply class 0.5 1000A/5A AC bus bar clamp on split core current transformer
|
Product Details:
Place of Origin: |
BEIJING CHINA |
Brand Name: |
GFUVE |
Certification: |
ISO9001, CE, UL |
Model Number: |
Q125 |
Payment & Shipping Terms:
Minimum Order Quantity: |
3pcs |
Price: |
250USD/pc |
Packaging Details: |
standard export wooden box |
Delivery Time: |
3-7days |
Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: |
10000pcs/month |
|
Detailed Product Description
CLASS: |
0.5 |
TYPES: |
1000A CLAMP ON SPLIT CORE CURRENT TRANSFORMER |
RATIO: |
1000:5A |
BURDEN: |
2.5VA |
JAW: |
120MM*50MM |
COLOR: |
WHITE |
WEIGHT: |
1.2KG |
FREQUENCY: |
40-2000HZ |
CURRENT RANGE: |
0-3600A |
Q125 China supply class 0.5 1000A/5A AC bus bar clamp on split core current transformer
The model Q125 current clamp on measuring instrument can be used for a current vector for the copper bar or the power aluminum bus bar on-line detection.
FEATURES
- This product can be used for a current vector for the copper bar or the power aluminum bus bar on-line detection.
- Holding wire diameter: 120mm*50mm
- Dimension: 116mm×327mm×35mm
- Load capacity: mA output ≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
- Installation: clamp type
- Output mode: lead output
PARAMETERS
Electrical parameters |
Ratio |
1000: 1 or 2000:1 (customized) |
Accuracy class |
0.2%, 0.5%, 1% |
Primary current |
0 - 3000A AC |
Secondary current |
0 - 5A AC (customized) |
Max. Cont. Input current |
3600A |
Over voltage category |
CAT III 600 V |
Output signal (AC current) |
500mA,1A,5A AC at nominal input current |
Electrical parameters - continued |
|
Output signal (AC voltage) |
333mV,500mV,1V,5V AC at nominal input current |
Frequency range |
40Hz-2000Hz |
Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
Temperature range |
-20°C to +55°C |
Output |
2.5 meter cable with D01 connector |
Max. voltage not insulated conductors |
600 V |
Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
Installation |
clamp type |
Output mode |
lead output(2.5m) |
Mechanical parameters |
Dimensions (L x W x H) (mm) |
116 x 327 x 35 |
Weight (g) |
1200 |
Holding wire diameter (mm) |
φ120 x 50 |
Max. jaw opening (mm) |
50 |
Jaw color |
White |
Material |
PC+ABS+Polycarbonate, UL94 V0 |
SELECTION GUIDE
Model |
Rate Current |
Max Current |
Secondary Current |
Coil Ratio |
Burden Resistance |
Accuracy |
Q125-500 |
500A |
600A |
5A |
100:1 |
2.5VA |
0.5% |
Q125-600 |
600A |
720A |
5A |
120:1 |
2.5VA |
0.5% |
Q125-800 |
800A |
960A |
5A |
160:1 |
2.5VA |
0.5% |
Q125-1000 |
1000A |
1200A |
5A |
200:1 |
2.5VA |
0.5% |
Q125-1200 |
1200A |
1440A |
5A |
240:1 |
2.5VA |
0.5% |
Q125-1500 |
1500A |
1800A |
5A |
300:1 |
2.5VA |
0.5% |
Q125-2000 |
2000A |
2400A |
5A |
400:1 |
2.5VA |
0.5% |
Q125-3000 |
3000A |
3600A |
5A |
600:1 |
2.5VA |
0.5% |
Q125-500 |
500A |
600A |
1A |
500:1 |
customized |
0.5% |
Q125-600 |
600A |
720A |
1A |
600:1 |
customized |
0.5% |
Q125-800 |
800A |
960A |
1A |
800:1 |
customized |
0.5% |
Q125-1000 |
1000A |
1200A |
1A |
1000:1 |
customized |
0.2% |
Q125-1200 |
1200A |
1440A |
1A |
1200:1 |
customized |
0.2% |
Q125-1500 |
1500A |
1800A |
1A |
1500:1 |
customized |
0.2% |
Q125-2000 |
2000A |
2400A |
1A |
2000:1 |
customized |
0.2% |
Q125-3000 |
3000A |
3600A |
1A |
3000:1 |
customized |
0.2% |
