500V 120A CLASS 0.05 PORTABLE THREE PHASE AC VOLTAGE AND CURRENT GENERATOR
-
-
Large Image :
500V 120A CLASS 0.05 PORTABLE THREE PHASE AC VOLTAGE AND CURRENT GENERATOR
|
Product Details:
Place of Origin: |
Beijing, China |
Brand Name: |
GFUVE |
Certification: |
ISO 9001 : 2008; CE |
Model Number: |
GF303D |
Payment & Shipping Terms:
Minimum Order Quantity: |
1SET |
Price: |
USD20000-35000 |
Packaging Details: |
Standard export box |
Delivery Time: |
whitin 20 days |
Payment Terms: |
T/T, Western Union, Paypal, MoneyGram, L/C, D/A, D/P |
Supply Ability: |
200SETS/month |
|
Detailed Product Description
CLASS: |
0.05 |
TYPE: |
THREE PHASE VOLTAGE AND CURRENT GENERATOR |
CURRENT OUTPUT: |
0-120A |
VOLTAGE OUTPUT: |
0-500V |
FREQUENCY: |
40-70HZ |
PHASE: |
0-360.000 |
HARMONICS: |
2-51TH |
PF: |
-1-0-1 |
LCD: |
7 Inch Touch TFT COLOR LCD |

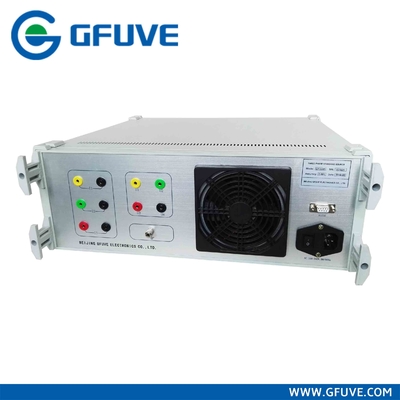

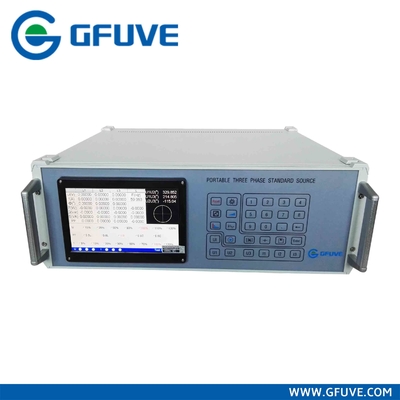

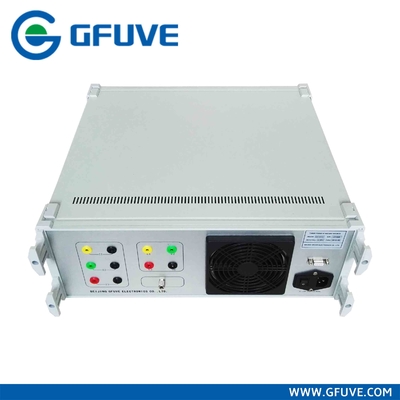

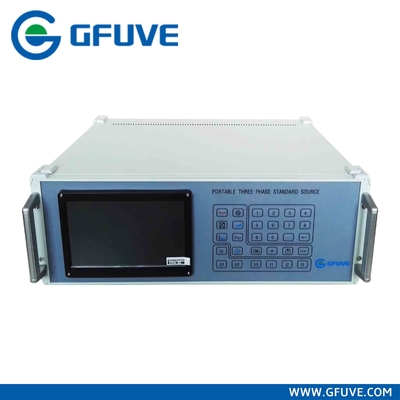

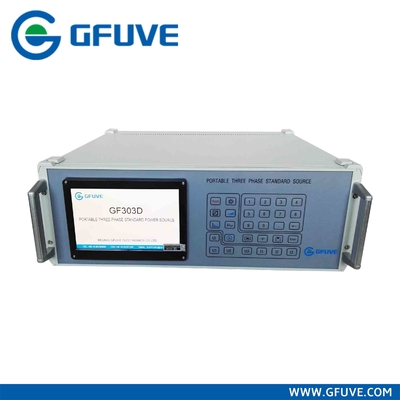

GF303D 500V 120A CLASS 0.05 PORTABLE THREE PHASE AC VOLTAGE AND CURRENT GENERATOR
The GF303D is a powerful and portable three phase current and voltage generator. All test values are generated absolutely synthetically with a high degree of accuracy and stability. The source is available in 12 A, 24A or 120 A.
The GF303D three phase portable power source generator is a lightweight and portable current and voltage generator based on newest technology and serves for solving this problem by simulating the required load conditions. Operation is performed by integrated 7“ touch screen or via keyboards.
FEATURES
- To set up and take the load regulation of voltage, current, phase angle, frequency and power factor, also can be used as AC current source, AC voltage source or power source.
- To set 2-51 times of the amplitude and phase harmonics, and it can be added to the base wave in every harmonic output.
- Frequency value is adjustable (AB and phase C).
- Voltage, current output a wide range, big power, high stability, waveform distortion degree is small.
- Strong with load ability, but it can take capacitive, sensibility, resistance of composite type load or load and load regulation is higher than 0.01%.
- To apply the 32 bit MPU + DSP + FPGA, powerful flexible.
- To use hardware PID, fast response, the change of load will not cause output volatility.
- Industrial frequency waves as high as 50000 points a week of the wave kneading, signal output without filter, precise output waveform, the harmonic output precision, harmonic distortion degree is small.
- Range switching automatically
- To use software calibration, simple operation, stable and reliable.
- To have big screen, 7inch LCD display, Chinese or English interface, operating simply.
- To have perfect over-current, over-voltage, heat, a shorts-and-opens, overload protection, failure detection automatically.
- With RS232 interface, and PC connection
- To take place machine software, it can be output through the PC software program.
PARAMETERS
Electrical parameters |
Accuracy class |
0.05%, 0.1% |
Power supply |
Single phase AC 85V-265V, 50/60 Hz |
AC Voltage output |
Range (U1, U2, U3 phase) |
57.7V/100V/220V/380V, switch automatically (max 500V) |
Adjustment resolution |
0.01%, 0.1%, 1%, 10%, |
Accuracy |
0.05% RG |
Stability |
0.005% RG/1min |
Distortion degree |
better than 0.1% (not capacitive load) |
Load Capacity |
25VA |
Full load regulation rate |
Less than 0.01% RG |
Full load regulation time |
Less than 1mS |
Temperature drift |
8 PPM / °C |
Long-term stability |
60 PPM/year |
AC Current output |
Range (I1, I2, I3 phase) |
0.1/0.25A/0.5A/1A/5A/10A/20A/100A, switch automatically |
Adjustment resolution |
0.01%, 0.1%, 1%, 10%, |
Accuracy |
0.05% RG |
Stability |
0.005% RG/1min |
Distortion degree |
better than 0.1% (not capacitive load) |
Load capacity |
50VA |
Full load regulation rate |
Less than 0.01% RG |
Full load regulation time |
Less than 1mS |
Temperature drift |
8 PPM/°C |
Long-term stability |
60 PPM/year |
Power output |
Active power accuracy |
0.05% |
Reactive power accuracy |
0.1% |
Stability |
0.005% RG/1min |
Phase |
Range |
0°-359.99° |
Adjustment resolution |
0.01°, 0.1°, 1°, 10° |
Accuracy |
0.05° |
Power factor |
Adjusting range |
-1 to 0 to +1 |
Resolution |
0.0001 |
Accuracy |
0.0005 |
Frequency |
Range |
40-65Hz or 40-400Hz (option) |
Adjustment resolution |
0.001Hz, 0.01Hz, 0.1Hz, 1Hz |
Accuracy |
0.002Hz |
Temperature drift |
0.5PPM/°C |
Long-term stability |
4 PPM/year |
Harmonic |
Harmonic times |
2-51 |
Adjustment resolution |
0.1% (compared with fundamental wave) |
Harmonic content (compared with fundamental wave) |
Voltage |
≤40% |
Current |
≤40% |
Phase |
0°-360° |
Capacitive load capacity |
0 - 280 V |
1uF |
280 - 420 V |
0.6uF |
Mechanical parameters |
Dimensions (W×D×H) (mm) |
450x380x160 |
Weight (kg) |
18 |
Environmental conditions |
Working temperature |
0°C to 40°C |
Storage conditions |
-30°C to 60°C |
Relative humidity |
≤85% |
