CABLE 125MM 3000A BLACK SPLIT CORE SQUARE BUS BAR AC CURRENT SENSORS
-
-
Large Image :
CABLE 125MM 3000A BLACK SPLIT CORE SQUARE BUS BAR AC CURRENT SENSORS
|
Product Details:
| Place of Origin: |
BEIJING CHINA |
| Brand Name: |
GFUVE |
| Certification: |
ISO9001, CE, UL |
| Model Number: |
Q125B |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3PCS |
| Price: |
300USD |
| Packaging Details: |
STANDARD EXPORT WOODEN BOX |
| Delivery Time: |
7DAYS |
| Payment Terms: |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
10000PCS/MONTH |
|
Detailed Product Description
| CLASS: |
0.5, 1 |
RATIO: |
3000/5A, 1000/5A |
| COLOR: |
BLACK |
WEIGHT: |
1.2KG |
| CABLE LENGTH: |
2.5M CABLE |
TYPE: |
SPLIT CORE AC CURRENT SENSORS |
| JAW: |
125MM |
PRIMARY CURRENT: |
0-3600A |

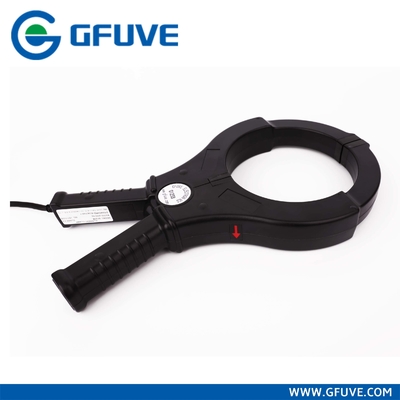

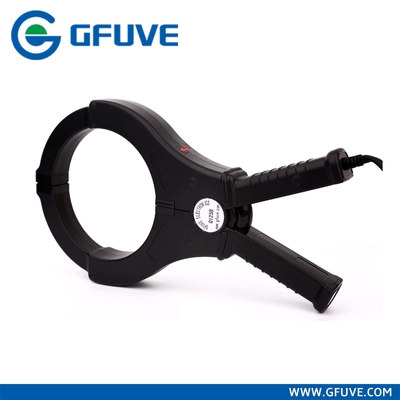

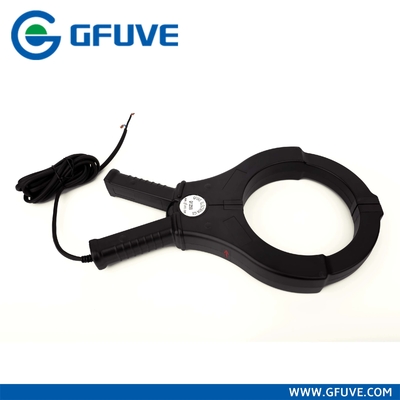

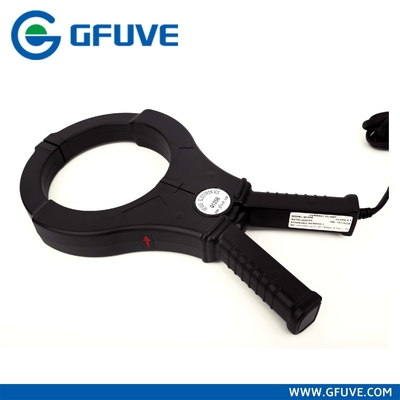

Q125B CABLE 125MM 3000A BLACK SPLIT CORE SQUARE BUS BAR AC CURRENT SENSORS
The Q125B is a high performance AC Current sensors with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction. It is the best current sensors maded in China.
APPLICATIONS
- Large industrial loads
- Measuring around cable bundles
- Power load monitoring
- Electrical utility
- HVAC
- Industrial maintenance
- Laboratory
- Plant maintenance
- Cable fault tester
FEATURES
- Measurement range of 1A to 3600A AC
- Large jaw opening designed
- Improved ergonomic design and easy operation
- Conforms to EN 61010, 600V CAT III
- Low phase shift for power measurement
- Nominal range: 1 to 1000AAC, 1 to 2000AAC, 1 to 3000AAC
- Transformation ratio: 1000:5, 2000:5, 3000:5
- Output:5mA AC/A AC, 2.5mA AC/A AC, 1.666mA AC/A AC
- Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
- UL, CE mark
PARAMETERS
| Electrical parameters |
| Ratio |
1000: 1 or 2000:1 (customized) |
| Accuracy class |
0.2%, 0.5%, 1% |
| Primary current |
0 - 3000A AC |
| Secondary current |
0 - 5A AC (customized) |
| Max. Cont. Input current |
3600A |
| Over voltage category |
CAT III 600V |
| Output signal (AC current) |
500mA,1A,2A,5A AC at nominal input current |
| Output signal (AC voltage) |
333mV, 500mV, 1V, 5V AC at nominal input current |
| Frequency range |
40Hz-2000Hz |
| Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
| Temperature range |
-20°C to +55°C |
| Output |
2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors |
600 V |
| Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation |
Clamp type |
| Output mode |
Lead output (2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H)(mm) |
180 x 319 x 35 |
| Weight (g) |
1100 |
| Holding wire diameter (mm) |
φ125 |
| Max. jaw opening (mm) |
125 |
| Color |
Black |
| Material |
PC+ABS+Polycarbonate, UL94 V0 |
