P50 1000/1A class 0.1 high accuracy measurement split core ac ct clamp current sensor
-
-
Large Image :
P50 1000/1A class 0.1 high accuracy measurement split core ac ct clamp current sensor
|
Product Details:
| Place of Origin: |
BEIJING CHINA |
| Brand Name: |
GFUVE |
| Certification: |
ISO9001, CE, UL |
| Model Number: |
P50 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3PCS |
| Price: |
88USD |
| Packaging Details: |
STANDARD EXPORT BOX |
| Delivery Time: |
3DAYS |
| Payment Terms: |
L/C, , D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: |
10000PCS/MONTH |
|
Detailed Product Description
| CLASS: |
0.1 |
RATIO: |
1000:1 |
| COLOR: |
BLUE OR GREY |
OUTPUT SIGNAL: |
0-1A |
| CABLE LENGTH: |
2.5M |
STANDARD: |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| WEIGHT: |
550g |
JAW: |
50mm |
| PRIMARY CURRENT: |
0-1200A |
TYPE: |
Split Core Current Sensor |

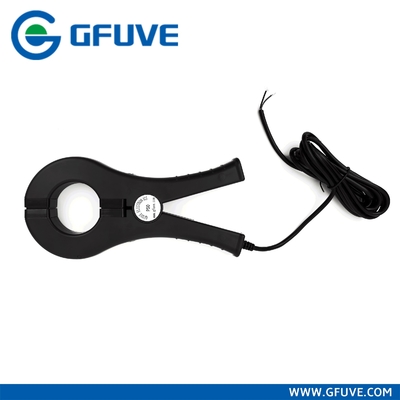

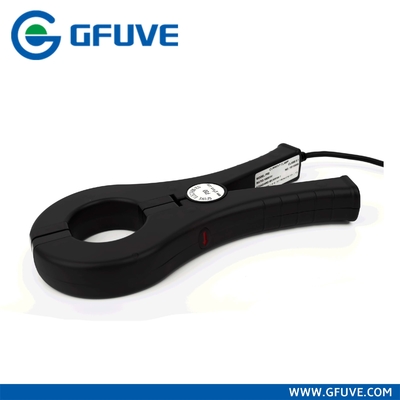

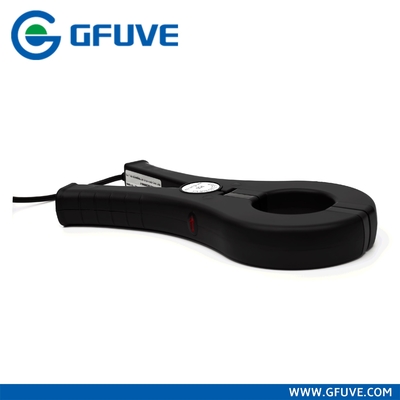

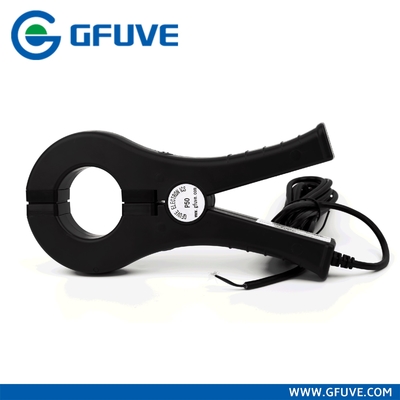

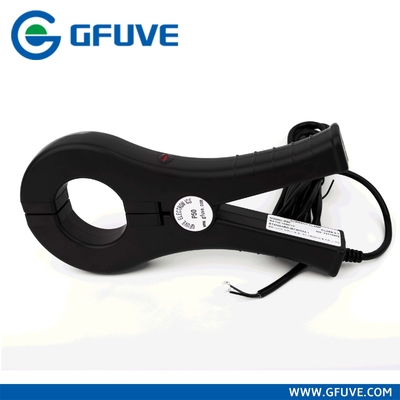

P50 1000/1A class 0.1 high accuracy measurement split core ac ct clamp current sensor
The round jaw design on the P50 Series AC current sensors along with the high content nickel metal core makes them well suited for power quality applications where high accuracy and low phase shift along with wide frequency are important. Measurement range is 1mA to 1200A.
The P50 is a general purpose 1000A AC current probe designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The P50 current sensor has an integral 2.5m lead terminated. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy 0.1% and low phase shift and wide frequency response are important.
FEATURES
- Suitable for 1000A cable online measurement
- Holding wire diameter: φ50mm
- Dimension: 101mm×219mm×26mm
- Load capacity: mA output≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
- Installation: clamp type
- Output mode: lead output
PARAMETERS
| Electrical parameters |
| Ratio |
1000: 1 or 2000:1 (customized) |
| Accuracy class |
0.1%, 0.2%, 0.5% |
| Primary current |
0 - 1000A AC |
| Secondary current |
0 - 5A AC (customized) |
| Max. Cont. Input current |
1200A |
| Over voltage category |
CAT III 600V |
| Output signal |
500mA,1A,5A AC at nominal input current |
| Frequency range |
40Hz-2000Hz |
| Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
| Temperature range |
-20°C to +55°C |
| Output |
2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors |
600 V |
| Standard |
EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation |
Clamp type |
| Output mode |
Lead output(2.5m) |
| Mechanical parameters |
| Dimensions (L x W x H) (mm) |
102.9 x 219.6 x 28 |
| Weight (g) |
550 |
| Holding wire diameter (mm) |
φ50 |
| Max. jaw opening (mm) |
50 |
| Jaw Color |
Blue |
| Material |
PC+ABS+Polycarbonate, UL94 V0 |
http://www.gfuve.com/upfile/pdf/P50-Current-Probe-GFUVE.pdf
