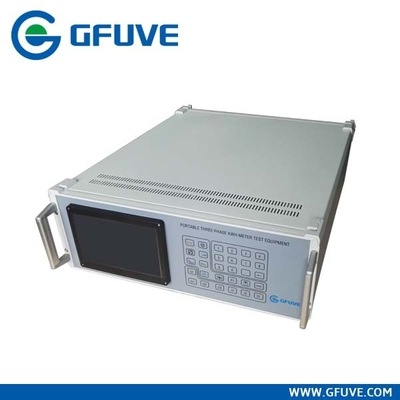

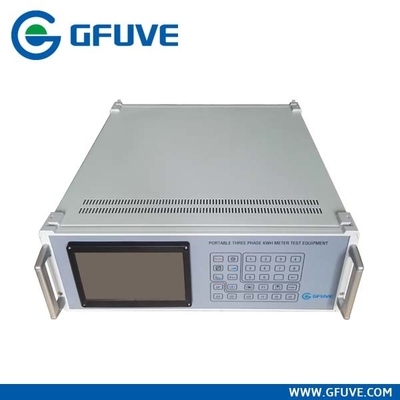

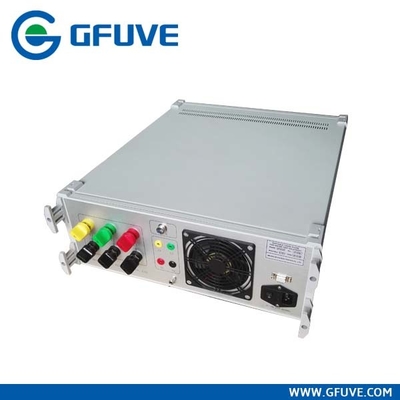

GF303D 120A 500V Class 0.05 Portable Three Phase Precision Power and Energy Calibrator
The GFUVE Model GF303D is a precision source of AC voltage, current and phase angle used in the calibration and test of a wide range of electrical metering instrumentation. It has been designed to be nothing less than the ultimate electrical power calibration standard in both accuracy and flexibility. This single instrument replaces the complicated combinations of individual voltage sources, current sources and phase angle meters required to calibrate power, power quality, and energy meters.
The Model GF303D makes use of sophisticated high-speed Digital Signal Processing (DSP) technology to generate extremely accurate outputs for a wide range of real world loads. The internal circuits of the Model 8100 use Rotek's patented digital feedback technology to monitor and verify the accuracy of the voltage and current outputs simultaneously at over 10,000 times per second. Its dual 50W high-power output amplifiers provide levels of burden and compliance required to drive even the most difficult loads.
The Model GF303D provides voltages from 1 to 500V and standard current outputs from 1mA to 120A. Optional 400W current amplifiers can provide maximum currents of 50, 100 or 220A with compliance of up to 5V. The phase angle of the current output relative to the voltage output may be adjusted from 0° to -360°. Output frequency may be selected from 40 to 70Hz.
The Model GF303D may be configured as a 2 or 3 phase system by simply connecting multiple Model GF303D Calibrators together using a standard Rotek synchronization and control cable. Front panel menus are used to set each unit as phase A, B or C. All voltage and current outputs are isolated providing complete flexibility in making connections to the UUT.
The Model GF303D provides the functions required to fully test power quality meters. Harmonics and interharmonics may be added to both the voltage and the current outputs. In addition, all outputs may be configured to reproduce sags, swells and interruptions. Other power quality related phenomena such as flicker and notching may also be simulated.
The Model GF303D facilitates the testing of all types of energy meters by delivering precise, user defined quantities of energy to the meter under test. The Model GF303D is also able to accept a pulse input for testing meters equipped with this type of output. The Option GF303D Optical Rotation Detector may be used to measure the rotation of an electro-mechanical energy standard. Alternatively, the Option GF303D, Optical Port Adapter, may be used to access an energy meter's optical communications port. The Model 8100 may be used with the Model GF303D2 six channel counter/comparator to test up to six energy meters simultaneously. When used in the external energy reference mode, all UUT's may be simultaneously calibrated against a single external energy standard.
A menu-driven front panel and simple intuitive controls make the Model GF303D extremely easy to use. Output settings and menus are displayed on a large color LCD display. Power settings may be expressed in units of Volt-Amperes, Watts or VARs. Similarly the phase angle may be expressed as either degrees or power factor. Such flexibility allows the Model 8100 to be configured to meet the specific requirements of any user. A compact rugged design makes the Model GF303D ideally suited to a wide range of operating environments from the laboratory to the factory floor.
Unequaled performance, simplicity of operation, and flexible system configuration make the Model GF303D today's standard for power and energy calibration.
FEATURES
- Min current output 1mA
- Predefined multiple load points
- Reference meter and power source integration
- User friendly menu guided operation
- Easy verification and analysis of meter installations
- Automatic operation without need of an external PC
- Generation of harmonics in current and voltage up to the 51th
- Verification of the load conditions on metering installation
- Verification of the energy registration
- Automatic testing mechanical meter and electronic meter error
- Voltage, current, frequency, phase angle, power factor, harmonics can be regulated
- 1P2W, 1P3W, 3P3W, 3P4W can be set
- 4 quadrant measurement
- Vector diagram display and phase sequence indication on integrated colored screen
- Especially configured USB stick for storage of customer data and measurement results
PARAMETERS
| Electrical parameters |
| Accuracy |
0.02%, 0.05%, 0.1% |
| Power Supply |
Single phase AC 85-265V, frequency 50/60Hz. |
| AC Voltage Output |
| Range(U1,U2,U3) |
57.7V, 100V, 220V, 380V
or 69.3V, 120V, 240V, 480V( optional); max 500V |
| Adjustment range |
(0-120)%RG(1) |
| Adjustment fineness |
0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
| Stability |
0.01%/120s |
| Distortion |
0.2% (Non-capacitive load) |
| Output load |
each phase 25VA |
| Accuracy |
0.05%RG or 0.02%RG |
| AC Current Output |
| Range(I1,I2,I3) |
200mA, 1A, 5A, 20, 100A; max 130A |
| Adjustment range |
(0-120)%RG |
| Adjustment fineness |
0.01%RG, 0.1%RG, 1%RG, 10%RG as optional. |
| Stability |
<0.01%/120s |
| Distortion |
≤0.2% (Non-capacitive load) |
| Output load |
25VA |
| Accuracy |
0.05%RG or 0.02%RG |
| Power Output |
| Active power output stability |
<0.01%RG/120s |
| Reactive power output stability |
<0.02%RG/120s |
| Active power measuring accuracy |
0.05%RG or 0.02%RG |
| Reactive power measuring accuracy |
0.1%RG |
| Phase Output |
| Output adjustment range |
0°-359.999° |
| Output adjustment fineness |
10, 1, 0.1, 0.01 as optional. |
| Resolution |
0.01° |
| Accuracy |
0.02° |
| Power Factor |
| Adjustment range |
-1 ~ 0 ~ 1 |
| Resolution |
0.0001 |
| Measurement accuracy |
0. 0005 |
| Frequency Output |
| Adjustment range |
40Hz-70Hz |
| Output adjustment fineness |
5Hz, 1Hz, 0.1Hz, 0.01Hz as optional. |
| Resolution |
0.001Hz |
| Accuracy |
0.002Hz |
| Voltage /Current/Harmonic Setting Output |
| Harmonic number |
2-51times |
| Harmonic content |
0-40% |
| Harmonic phase |
0-359.99 |
| Harmonic setting accuracy |
(10%±0.1%)RD(2) |
| Power Energy Measurement Error |
| Active power energy |
0.05%RG or 0.02%RG |
| Reactive power energy |
0.1%RG |
| Power Pulse Output |
| Power pulse type |
active pulse, reactive pulse |
| Active power pulse output |
5V, 10mA |
| Power Pulse Input |
| Energy pulse type |
support active and reactive pulse, the highest frequency power pulse input is 180K. |
| Communication Port |
| Communication Port |
RS232, USB2.0 |
| Safety |
| Isolation protection |
IEC 61010-1:2001 |
| Measurement Category |
300 V CAT III, 600 V CAT II |
| Degree of protection |
IP20 |
| Declaration of conformity |
CE certified |
| Mechanical parameters |
| Dimensions (W×D×H) (mm) |
445x460x158 |
| Weight (kg) |
18 |
(1) RG means range, the same as below;
(2) RD means the setted harmonic content, harmonic can be a single output, also multiple output. |
