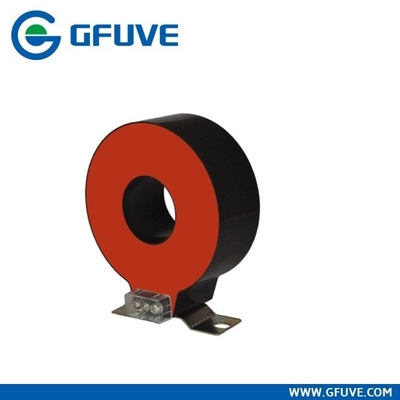

LZCG930-10 CHEAP LOW VOLTAGE CAST RESIN RING CORE CURRENT TRANSFORMER

1000/5A CLASS 0.2S CHEAP LOW VOLTAGE CAST RESIN RING CORE CURRENT TRANSFORMER
General description
LZCG series Cast Resin Straight-Through Current Transformer is suitable for current measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system. It is widely used in not only compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe Plus, Unstitch, Schneider RM6, SM6, Siemens 8DJ10/8DH10, Simosec, FBX, Fluokit, Omar Garbo GA, GAE; SEL TPS(Q); VEI Unifluorc; Eaton SVS/12 ring network, but also cable distribution boxes because of its small size, light weight, operable and convenient installation. It is very convenient that the transformer can be directly installed at the inlet and outlet cables.
New magnetic material is taken to be the core of the current transformer, which has high magnetic permeability, low saturation magnetization and good stability. Therefore, the measuring accuracy is higher and the instrument security factor is lower. Since the high quality silicon processed by advanced technology is taken to be the core of the protection windings, which assured the accuracy limit factor is higher.
The semicircular ring core and secondary windings are vacuum poured by high quality epoxide resin in the fire retardant plastic casing, which has the characteristic of moisture proof, stable performance and dispensing with maintenance.Small size, light weight, small footprint, fixed in the ring network switchgear cable.The cable can cross the current transformer through its internal poles quickly and uniformly.
The Cast Resin Straight-Through Current Transformer can be divided several kinds according to the various current ratio, accuracy and rated loads. The specific parameters are showed in the corresponding to each model parameter tables.

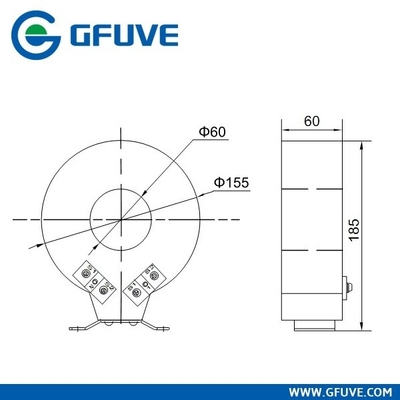

OUTLINE DRAWING

Split core cast resin current transformer

WIRING DIAGRAMS

Split core cast resin current transformer
P1, P2 is primary polarity terminal, S1, S2 is secondary polarity terminal.
P2, S2 is homonymous terminals (subtractive polarity).

PARAMETERS

Technical parameters
StandardsIEC60044-1; IEC 61869-2; NTC 2205; ANSI C57.13; GB1208-2006
Rated primary current30-1000A
Rated load≤30VA
Rated frequency50Hz or 60Hz
Rated secondary current5A or 1A
Rated short-time thermal current40kA, 1S
Rated continuous thermal current120%I1n
Secondary winding power-frequency voltage3kV, 1min
Instrument security factorFS≤10
Mechanical parameters
Dimensions (W×D×H) (mm)φ60×φ155×60
Weight (kg)3.6
Operating conditions
Operating temperature-35°C to +55°C
Daily average temp<+40°C
Storage temperature-40°C to +70°C
Altitude<3500 meters
ConditionNo existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

SELECTION GUIDE

TypeLZCT722-10LZCT722-10LZCT722-10
PurposeMeasuring current transformerProtection current transformerDouble winding current transformer
Rated primary current (AMP)Accuracy class and rated load(VA)Accuracy class and rated load(VA)Composite accuracy class and rated load(VA)
0.2S0.20.510P2010P1510P100.2S0.510P1510P10
30  2
40  2.5
50  3.75  2
75 3.755 23.75
1002.557.5 2.53.75
15057.5102.53.756.252.53.75 2.5
2007.510153.7557.557.5 3.75
30010152057.5107.5102.55
4001520256.257.5151012.53.755
5002025256.257.51515153.755
6002030307.5102015203.757.5

SELECTION GUIDE

ModelPrimary rated currentRated loadAperture (mm)Description (mm)Weight (kg)MaterialWater-proof
LZCK-55100-1500A≤10VAφ55180×138×522ABS+ResinIP65
LMCK185-10300-3000A≤25VAφ185350×283×554.5ABS+ResinIP65
LZCK310-10300-600A≤10VAφ50φ50 x φ110 x 321Resinsilicon case (option)
LZCK322-1030-600A≤10VAφ50φ50 x φ110 x 521.6Resinsilicon case (option)
LZCK350-1020-600A≤25VAφ50φ50 x φ110 x 1053.1Resinsilicon case (option)
LZCK720-1020-1000A≤25VAφ60φ80 x φ110 x 502.1Resinsilicon case (option)
LZCK2500-10500-1500A≤20VAφ120φ120 x φ185 x 1007Resinsilicon case (option)
LZCG530-1030-600A≤20VAφ45φ45 x φ120 x 652.1Resinsilicon case (option)
LZCG930-10100-1500A≤25VAφ60φ60 x φ155 x 603.6Resinsilicon case (option)
LZCT722-1020-600A≤10VAφ82φ82 x φ130 x 552.3Resinsilicon case (option)
