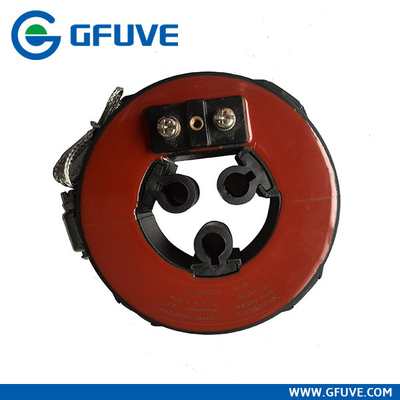

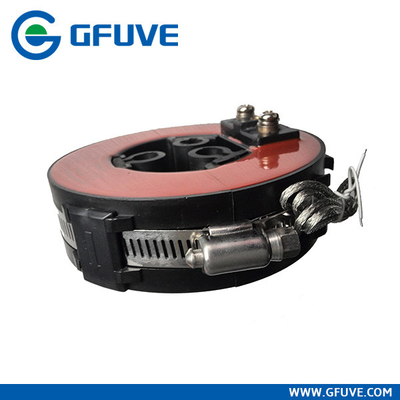

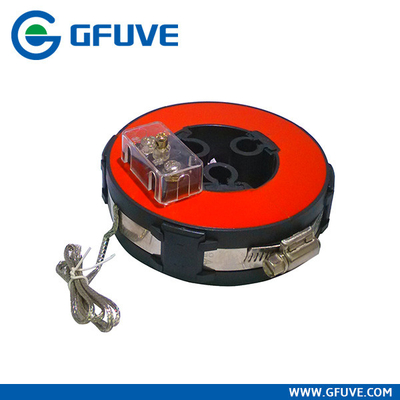

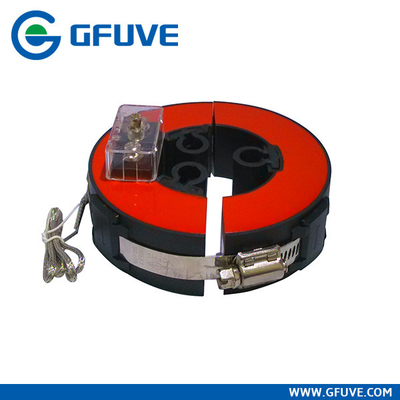

dry type split core current transformers
-
-
Large Image :
dry type split core current transformers
|
Product Details:
| Place of Origin: |
Beijing, China |
| Brand Name: |
GFUVE |
| Certification: |
ISO 9001 : 2008; CE |
| Model Number: |
LZCK310-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
3pcs |
| Price: |
USD1---250 |
| Packaging Details: |
Standard export box |
| Delivery Time: |
7days |
| Payment Terms: |
T/T, Western Union, Paypal |
| Supply Ability: |
30000pcs/month |
|
Detailed Product Description
| Usage: |
Current |
Phase: |
Single |
| Coil Structure: |
Toroidal |
Coil Number: |
Autotransformer |
LZCK310-10 dry type SPLIT CORE CAST RESIN CURRENT TRANSFORMERs
LZCK series dry type split core current transformers is suitable forcurrent measurement and microcomputer protection of electrical equipment in 10KV and 35KV AC power system.It is widely used in compact fully insulated ring network switchgears such as ABB-Safe Ring/Safe plus...and cable distribution boxes.The transformer can be directly installed at the inlet andoutlet cables.The slice is imported silicon material. Thesemicircular ring core and secondary windings arevacuum poured by insulated resin.
OUTLINE DRAWING
WIRING DIAGRAMS
P1, P2 is primary polarity terminal, S1, S2 is secondary polarity terminal.
P2, S2 is homonymous terminals (subtractive polarity).
PARAMETERS
|
Technical parameters |
|
Standards |
IEC60044-1; IEC 61869-2; ANSI C57.13; NTC 2205; GB1208-2006 |
|
Rated primary current |
300-600A |
|
Rated load |
≤10VA |
|
Rated frequency |
50Hz or 60Hz |
|
Rated secondary current |
5A or 1A |
|
Rated short-time thermal current |
40kA, 1S |
|
Rated continuous thermal current |
120%I1n |
|
Secondary winding power-frequency voltage |
3kV, 1min |
|
Instrument security factor |
FS≤10 |
|
Mechanical parameters |
|
Dimensions (W×D×H) (mm) |
φ50xφ110x32 |
|
Weight (kg) |
1 |
|
Operating conditions |
|
Operating temperature |
-35°C to +55°C |
|
Daily average temp |
<+40°C |
|
Altitude |
<3500 meters |
|
Condition |
No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
SELECTION GUIDE
|
Type |
LZCK310-10 |
LZCK310-10 |
|
Purpose |
Measuring current transformers |
Protection current transformers |
|
Ratio |
Accuracy class and rated load(VA) |
Accuracy class and rated load(VA) |
|
I1/I2 |
0.5 |
1 |
3 |
10P15 |
10P10 |
10P5 |
|
300/1 |
1.5 |
2.5 |
2.5 |
1.5 |
2.5 |
|
400/1 |
2.5 |
3.75 |
3.75 |
1.5 |
2.5 |
|
500/1 |
2.5 |
5 |
5 |
1.5 |
2.5 |
5 |
|
600/1 |
2.5 |
5 |
5 |
1.5 |
2.5 |
5 |
|
300/5 |
2.5 |
3.75 |
3.75 |
1 |
2.5 |
|
400/5 |
5 |
7.5 |
7.5 |
1.5 |
3.75 |
|
500/5 |
5 |
7.5 |
7.5 |
2.5 |
5 |
|
600/5 |
5 |
7.5 |
10 |
2.5 |
5 |
SELECTION GUIDE
|
Model |
Primary rated current |
Rated load |
Aperture (mm) |
Description (mm) |
Weight (kg) |
Material |
Water-proof |
|
LMCK055-10 |
300-1200A |
≤10VA |
φ55 |
180×138×52 |
2 |
PC |
IP65 |
|
LMCK185-10 |
300-3000A |
≤25VA |
φ185 |
350×283×55 |
4.5 |
PC |
IP65 |
|
LZCK310-10 |
300-600A |
≤10VA |
φ50 |
φ50 x φ110 x 32 |
1 |
Resin |
silicon case (option)
|
|
LZCK322-10 |
30-600A |
≤10VA |
φ50 |
φ50 x φ110 x 52 |
1.6 |
Resin |
silicon case (option) |
|
LZCK350-10 |
20-600A |
≤25VA |
φ50 |
φ50 x φ110 x 105 |
3.1 |
Resin |
silicon case (option)
|
|
LZCG530-10 |
30-600A |
≤20VA |
φ45 |
φ45 x φ120 x 65 |
2.1 |
Resin |
silicon case (option) |
