Detailed Product Description
Types: Three Phase KWh Meter Verification Class: 0.1
Color: Blue Or Yellow Current Range: 0-24A Direct; 0-120A Clamp On Cts
Voltage Range: 0-576V Frequency: 45-65Hz
Phase: 0-360.00 Weight: 1.8Kg

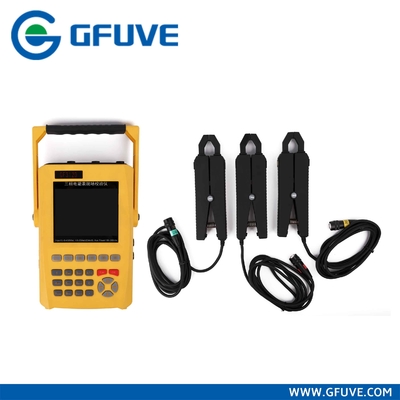

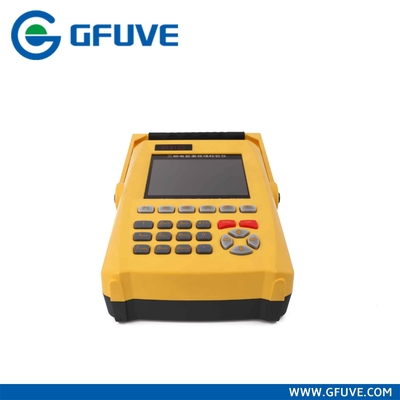

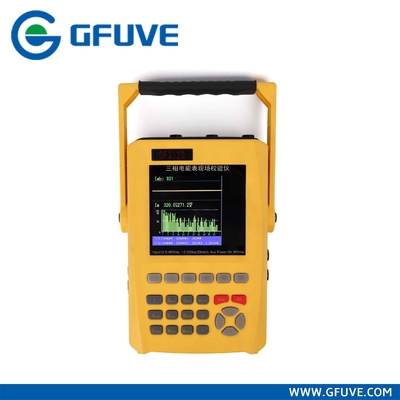

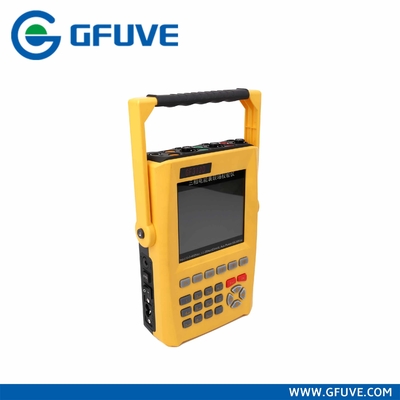

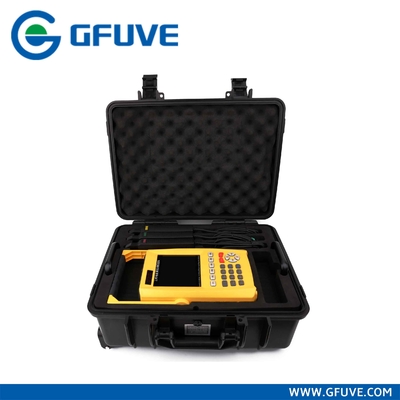

GF312D 100A 576V class 0.1 Three-Phase KWh Meter Site Verification with 100A clamp on cts
(Accuracy class 0.05/0.1)

100A 576V class 0.1 Three-Phase KWh Meter Site Verification with 100A clamp on cts100A 576V class 0.1 Three-Phase KWh Meter Site Verification with 100A clamp on cts100A 576V class 0.1 Three-Phase KWh Meter Site Verification with 100A clamp on cts
Application
It is suitable for power measurement test center, the power company electricity management, electric energy measurement, technical supervision departments, industrial and mining enterprises, petroleum and chemical enterprises, electric energy measurement department.
Introduction
This instrument is developed based on computer company platform, adopts full function exchange measuring core 32-bit ARM processor, resolution 640 X480 TFT LCD monitor, horizontal double 16bit precision A/D converter, built-in 0.01 magnitude broad range current transformer, the product as high precision watt-hour meter site verification, can also check two pieces of pick up in the same line of the error of the meter.
Functions and features
1, measurement:
(1) AC parameters: U, I, P and Q, S, PF, phase angle, frequency etc;
(2) electrical energy cumulative: active power, reactive power, installed power;
(3) U, I phase Angle measurement;
(4) U, I harmonic measurement;
(5) instrument accuracy: 0.05%/ 0.1% / 0.2%.
2, calibration: checking various single, three-phase watt-hour meter, including: active/reactive watt-hour meter, inductive/electrical meter, but it can also check two pieces of pick up in the same line of electric energy meter;
3 analysis: through the U, I phase angle measurement results, analysis of the connection status, hint electric wiring error;
4, record: manual/automatic transcribing watt-hour meter data, read automatically watt-hour meter bar code, through the interface RS485 read watt-hour meter data;
5, testing the CT Turns Ratio and angular;
6, equipping with 5 A, 20 A, 100 A, 500 A, 5000 A current clamp;
7, exceed wide measurement range and high measuring accuracy: voltage 0.5-500 V (60 V, 120 V ,240 V , 480 V four measure range, 0.02%), current 2 mA-20 A (built-in CT direct measurement, 0.02%), 2 mA-5 A, 20 mA-20 A, 100 mA-100 A and 500 mA-500 A (external current clamp measuring 0.2 or 0.5 grade) and it can be equipped with 50-5000 A flexible coil (lokovski coil) current measurement, and the measurement of frequency range of 40-70 Hz, harmonic analysis: 0-127 times,
8, low power circuit design, high-energy lithium batteries, intelligent power management software to make instruments can work for more than 20 hours continuous time;
9, adopt new structure and appearance, beautiful and practical, small volume easy to carry easy to use; The rubber shock absorption coat, with strong vibration resistance for field use;
10 severy way of power supply, can AC 220 V power supply, also can use rechargeable battery power within the host;
11, built-in wireless transceiver can be equipped with a variety of wireless sensor (for example: three wireless photoelectric sampler, wireless measure current coil, wireless bar code scanner, wireless infrared interface etc.);
12, equipped with current clamp calibration accessories, the calibration of current clamp measurement

Competitive Advantages

Well and High Quality Control ,
Prompt Delivery ,
New Product ,
Competitive Prices ,
Earth-friendly Products ,
Small Order Acceptable ,
OEM Accepted

PARAMETERS

Electrical parameters
Accuracy class 0.05%, 0.1%
Resolution 6”TFT (640×480)
Power supply 220V±10%, 50/60Hz
Li-polymer battery (size (mm): 110x51x16, nominal output voltage: 7.2V, capacity: 5000mAh)
Power line supply (U1, UN), 85V-265V 50/60Hz
Communication port RS232
Test voltage
Range 5-480V
Error ±0.05% (30V-480V)
±0.1% (5V-30V)
Harmonic 2nd-63st
Test current
Range (direct connection) 5mA-20A
Error (direct connection) ±0.05% (100mA-20A)
±0.1% (10mA-100mA)
Range (clamp CT) 10mA-3000A
Error (camp CT) ±0.2% (100mA-100A)
±0.5% (100A-3000A)
Harmonic 2nd-63st
Power measure error
Active power (direct connection) ±0.05% (0.1A-20A)
±0.1% (0.01A-0.1A)
Reactive power (direct connection) ±0.1% (0.1A-20A)
Energy measure error
Active energy (direct connection) ±0.05% (0.1A-20A)
±0.1% (0.01A-0.1A)
Reactive energy (direct connection) ±0.1% (0.1A-20A)
Phase angle
Range 0°-360°
Resolution 0.01°
Error ±0.05°
Frequency
Range 45-65Hz
Resolution 0.001Hz
Error 0.002Hz
Pulse input
Input channel 2
Input level 5-24V
Input frequency Max. 2MHz
Pulse output
Energy constant 180000imp/kWh, 1800imp/kWh, 180imp/kWh
Pulse ratio 1:1
Output level 5V
Function
Vector diagram Yes
Waveform Yes
Energy accumulation Yes
Communication with PC Yes
Mechanical parameters
Instrument dimensions (W×H×D) (mm) 220×138×61
Instrument Weight (kg) 1.7
Carry case dimensions (W×H×D) (mm) 450×320×185
Carry case (kg) 8.5
Environmental conditions
Ambient temperature -10°C to 55°C
Relative humidity 15%-85%
