overview:

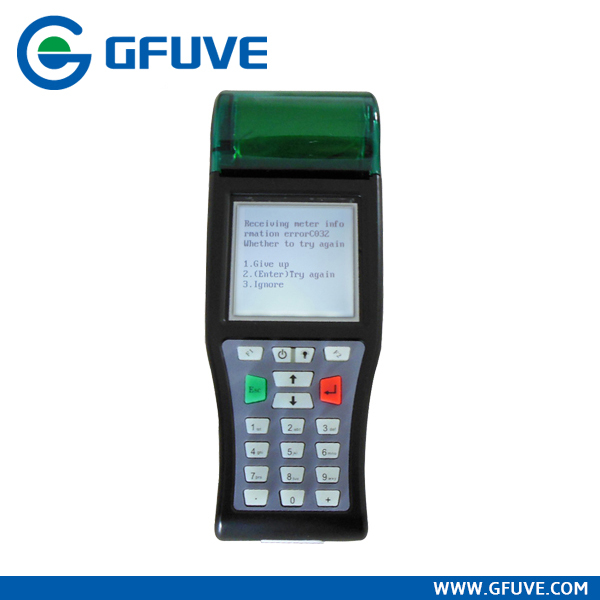

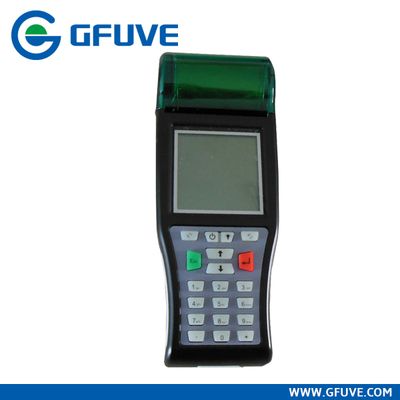

GF900P is a portable infrared meter reader with inbuilt printer; you can print service bill or product bill on the spot. ti is the upgrade version of the GF900 by GFUVE. Makes your wok simple and effective.
features:
Advanced design concept compound the terminal with the printer together.
Carry out datd acquisition nd analysis.
reading datd of electer energy meter via IR.
High capacity rechargeable of lithium, low consumption printer, the POS terminial can work long time.
Have two ways(sound and light) to notice user whether the printer is being short of power or short of paper.
It work quickly and price cheap.
| Basic parameters | |
| CPU | ARM32 CPU 132MHz (SAMSUNG) |
| Operation system | TPOS |
| RAM | 512K |
| ROM | 2M |
| Flash | 64M Flash |
| Display | 3.2 inch display, 160x160 pixel |
| Real time | Much less than 0.5 seconds every day under common temperature |
| Keypad | 20 keypads |
| Non-slip function | Non-slip handle design, the battery back can locked to prevent battery cover lost |
| Power off protection | Using flash technology, the data is still safe preservation after power off |
| Control instruction | ESC/POS compatible instruction sets |
| Communication ports | RS232, IR, USB2.0 |
| Optional configuration | IR |
| Battery | High capacity rechargeable of lithium battery |
| Programming language | C language, DBF database development system |
| Seiko printer | |
| paper diameter | 40mm |
| The maximum width of the printing paper | 58mm |
| The maximum width can be printed | 48mm |
| Print method | Thermal line printing |
| Resolution | 8 dots/mm (203dpi) |
| The count of every line | 384 dots，every line can print 16 Chinese characters or 32 characters |
| Print contents | Chinese, Number, English, Graphics, Curve, Barcode |
| Print speed | 45mm/s |
| Mechanical parameters | |
| Dimensions (LxWxH) (mm) | 195×65×45 |
| Weight (g) | About 256 (not including battery) |
| Environmental conditions | |
| Work temperature | -5°C to 50°C |
| Storage temperature | -25°C to 70°C |
| |
| |
| |
